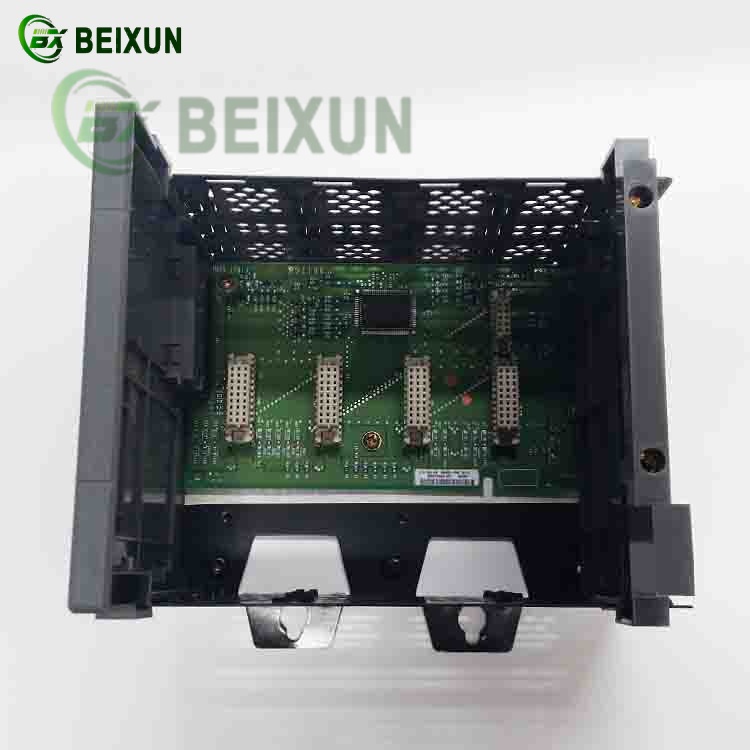

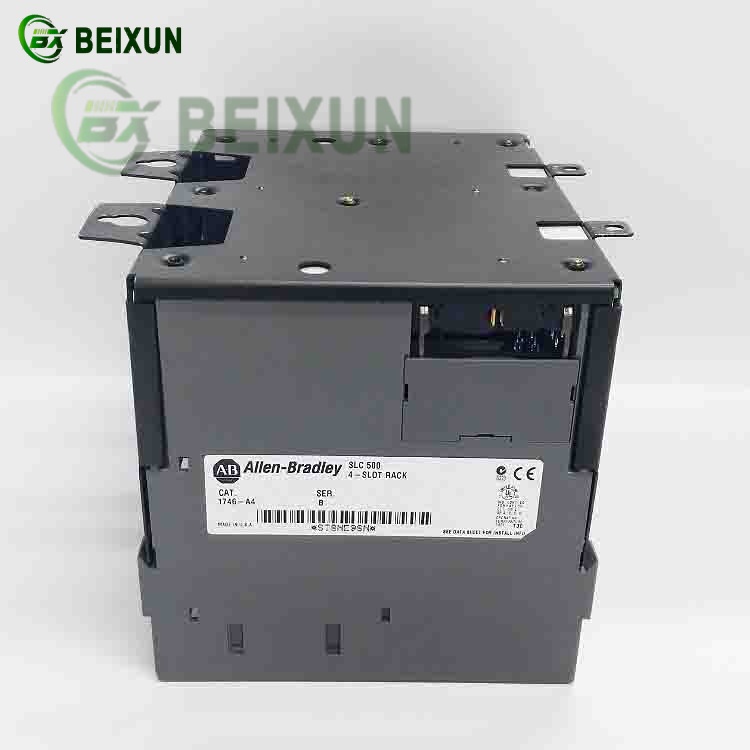

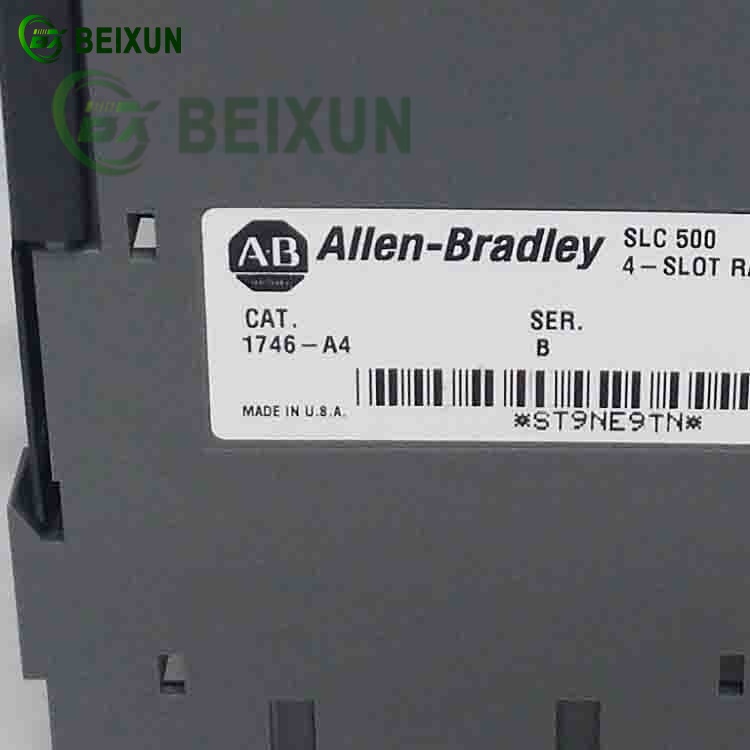

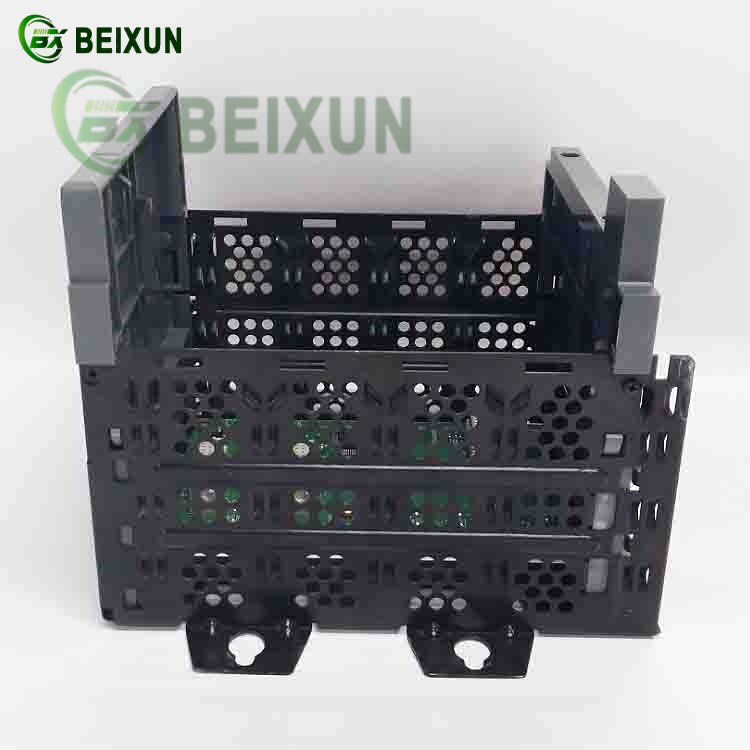

Function of Allen-Bradley 1746-A4 4-Slot Rack for PLC Systems
The Allen-Bradley 1746-A4 is a 4-slot modular chassis designed for the SLC 500 series PLCs, serving as a foundational component for industrial automation systems. Its roles and capabilities are summarized below:
1. Modular Hardware Integration
Slot Capacity:
Supports up to 4 modules, including processor modules, I/O modules (e.g., 1746-IB16 digital input, 1746-OB16 digital output), and communication adapters.
Compatibility:
Works with all SLC 500 series modules (e.g., 1746-HS, 1746-BLM servo control modules) for tasks like signal processing, motion control, and industrial communication.
2. Power Distribution & Expandability
Power Supply Integration:
Requires a dedicated SLC 500 power module installed on the left side of the rack to distribute stable power to all modules.
Multi-Rack Expansion:
Up to 3 chassis (e.g., 4-slot, 7-slot variants) can be linked via rack-connecting cables to expand I/O capacity for complex control systems.
3. Industrial-Grade Reliability
Robust Construction:
Built with industrial-grade materials to withstand harsh environments like vibration, dust, and temperature extremes.
Hot-Swappable Design:
Modules can be replaced or upgraded without powering down the system, minimizing operational downtime.
4. Application Scenarios
Production Line Control:
Used in automotive manufacturing to manage robotic arms, monitor sensors, and handle emergency stops for optimized workflows.
Servo Motion Control:
Integrates with modules like 1746-BLM for multi-axis positioning and PID regulation in precision machining systems.
5. Technical Support
Programming:
Configurable via RSLogix 500 software, supporting protocols like ControlNet and Ethernet for real-time communication.
Supply Chain:
Authorized distributors (e.g., Rockwell Automation partners) provide original modules, documentation, and maintenance services.
By combining modular flexibility, power distribution, and industrial durability, the 1746-A4 enables scalable and reliable automation solutions in manufacturing and process control industries.
