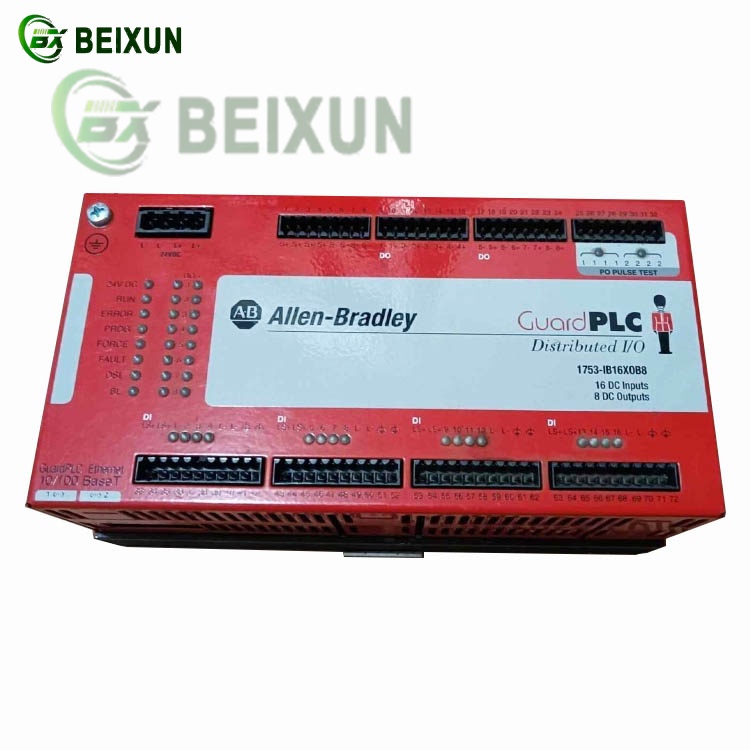

Allen-Bradley 1753-IB16XOB8 Guard PLC Distributed I/O Module: Functions & Applications
The 1753-IB16XOB8 is a safety-rated distributed I/O module designed for Allen-Bradley’s GuardPLC systems, integrating critical safety control with industrial automation capabilities.
1. Core Functions
Safety Input/Output Control:
Provides 16 safety-rated digital inputs (IB16) and 8 safety-rated digital outputs (XOB8) for monitoring safety devices such as emergency stops, safety door switches, or light curtains.
Supports dual-channel signal validation to detect discrepancies and ensure fault tolerance.
Distributed Safety Logic Execution:
Processes safety logic locally, reducing reliance on central controllers and achieving faster response times (typically ≤20ms).
2. Technical Features
Safety Compliance:
Complies with SIL 3/PLe safety standards and utilizes CIP Safety protocol for secure communication in redundant network architectures.
Includes self-diagnostics to detect wiring faults, short circuits, or overloads, with LED indicators for real-time status monitoring.
Scalability:
Compatible with DeviceNet or EtherNet/IP networks, enabling flexible expansion of distributed I/O nodes across multiple zones.
3. Safety Mechanisms
Input Signal Validation:
Employs dual-channel differential signal processing (e.g., 0 V/24 V dual-wire inputs) to prevent false triggers caused by single-channel failures.
Forced Shutdown Protection:
Activates forced power disconnection (FSD) on detecting safety risks, immediately isolating power to critical loads.
4. Typical Applications
High-Risk Machinery:
Controls emergency stops and safety interlocks for presses or injection molding machines.
Production Line Safety:
Monitors safety gates and light barriers in automated assembly lines, triggering shutdowns to protect operators.
Process Safety Systems:
Integrates into safety instrumented systems (SIS) for critical shutdown logic in chemical or energy industries.
5. Key Advantages
High Reliability: SIL 3 certification and redundant architecture ensure fail-safe operation.
Rapid Response: Local logic execution minimizes communication delays.
Easy Maintenance: Modular design supports hot-swapping (when following safety protocols).
This module is ideal for industries requiring strict safety compliance, balancing distributed control efficiency with robust risk mitigation.
