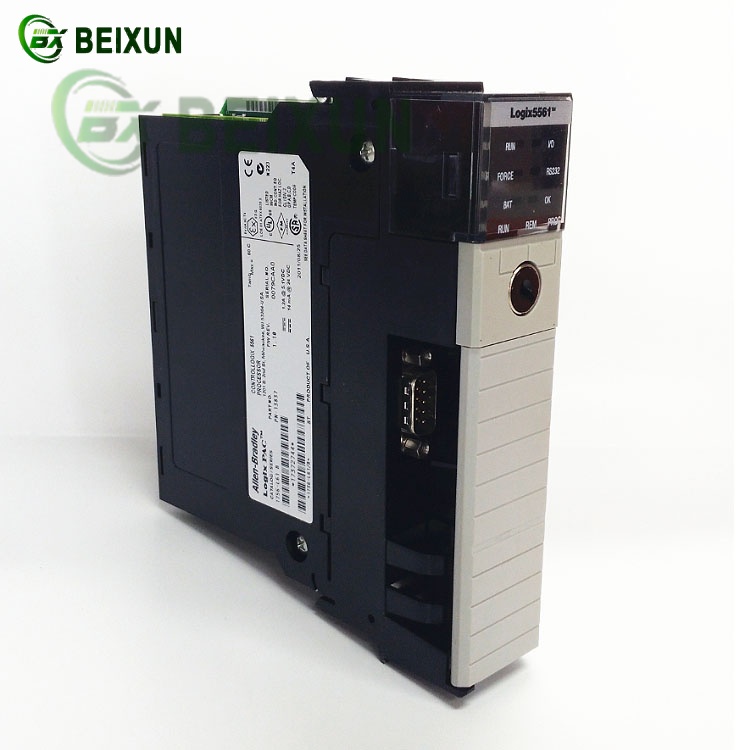

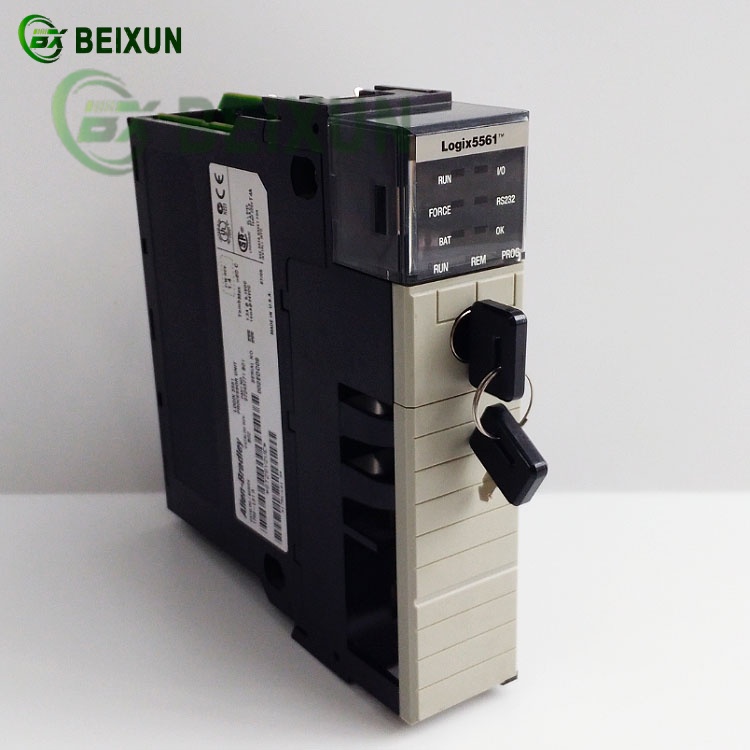

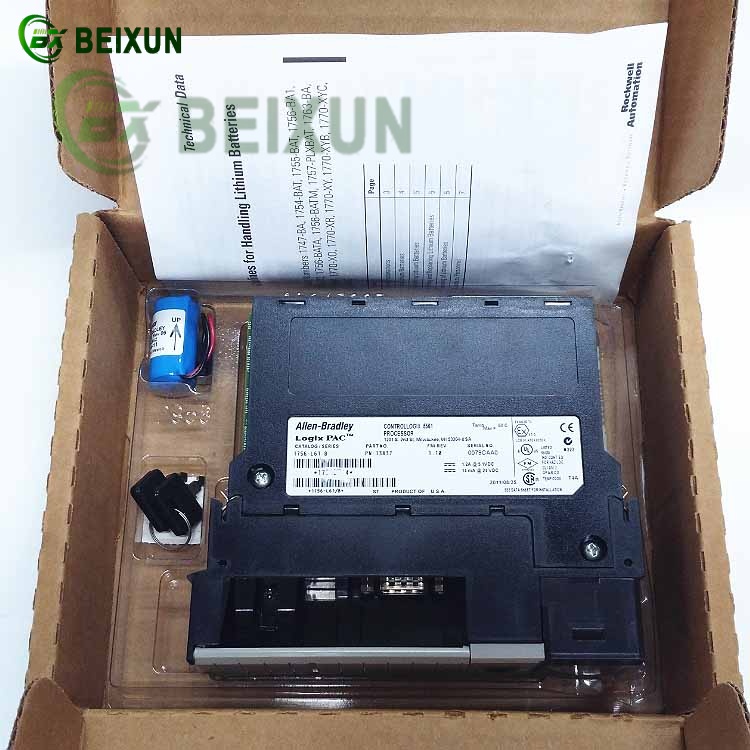

Key Functions of the A-B 1756-L61 CPU Module
The A-B 1756-L61, part of Rockwell Automation’s ControlLogix series, serves as a high-performance programmable automation controller (PAC) for industrial automation applications.
Its primary roles include:
1. Real-Time Control & Processing
Executes user-defined control logic (e.g., ladder logic, structured text) to manage industrial processes and equipment.
Features a 32-bit RISC+DSP dual-core architecture for rapid computation of complex algorithms, including PID control and motion control.
Supports 32 configurable tasks (continuous, periodic, or event-triggered) for multitasking operations, enabling precise scheduling of control routines.
2. Memory & I/O Management
Equipped with 2 MB user memory and 478 KB I/O memory, expandable via a 64 MB CompactFlash card for large-scale program storage.
Scales to support 128,000 digital I/O points or 4,000 analog I/O points, accommodating extensive industrial systems.
3. Multi-Protocol Communication
Integrates with EtherNet/IP, ControlNet, DeviceNet, PROFIBUS-DP, and DH+ protocols for seamless device networking via backplane or dedicated modules (e.g., 1756-ENBT for Ethernet/IP).
Includes an RS-232 serial port (DF1/DH-485 protocol) for legacy device compatibility.
4. High Reliability & Redundancy
Built-in watchdog timer and error detection mechanisms ensure continuous operation and fault tolerance.
Supports redundant configurations (dual controllers + backup power modules like 1756-BATM) for mission-critical applications.
Operates reliably in harsh environments (-0°C to 60°C) with vibration resistance (10–500 Hz).
5. Modular Expandability
Compatible with ControlLogix I/O modules (e.g., digital, analog, relay) and third-party devices for flexible system integration.
Allows multi-controller installation within a single chassis, enabling distributed control architectures and direct inter-controller communication via the backplane.
6. Programming & Development
Compliant with IEC 61131-3 standards, supporting multiple programming languages and online debugging.
Each task can host up to 100 independent programs, enabling parallel processing and logic isolation through a “virtual machine” structure.
This module is widely deployed in manufacturing, energy, and chemical industries for applications requiring precision, scalability, and robust communication.
