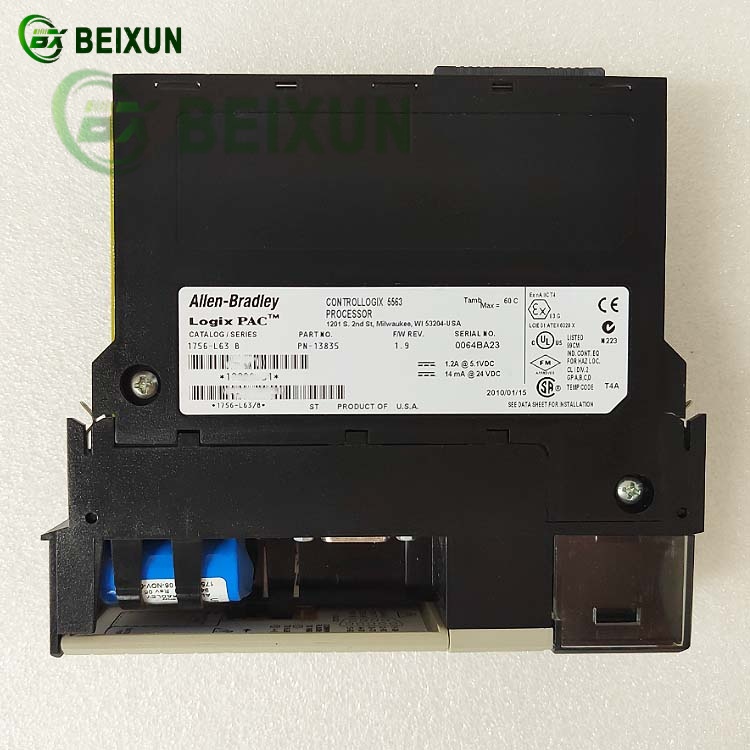

The A-B 1756-L63 ControlLogix Controllers CPU Module is a core component of Rockwell Automation’s ControlLogix series, designed for industrial automation and control applications.
Its primary functions and features include:
1. Centralized Control & Logic Execution
Acts as the Programmable Logic Controller (PLC) central processing unit, executing user-defined control logic to manage real-time data from sensors, actuators, and other industrial devices.
Supports multi-tasking capabilities, enabling simultaneous execution of independent control tasks (e.g., motion control, process automation).
2. Scalable I/O Management
Handles large-scale I/O systems with support for 128,000 digital I/O points or 4,000 analog I/O points, ideal for complex automation setups.
Modular expansion via ControlLogix backplanes or networks (e.g., EtherNet/IP) allows seamless integration of local or remote I/O modules without CPU bridging.
3. Multi-Network Communication
Integrates EtherNet/IP, DeviceNet, and ControlNet protocols for robust communication with HMIs, SCADA systems, and peripheral devices.
Compatible with communication modules (e.g., 1756-CN2R) to extend support for legacy protocols like DH+.
4. Redundancy & High Availability
Supports enhanced redundancy configurations (firmware ≥19.50), enabling fail-safe operation with hot-swappable backup controllers to minimize downtime.
5. Memory & Storage
Provides 8,192 KB user memory and 64 MB CompactFlash storage for program execution, configuration files, and historical data logging.
Facilitates rapid backup and firmware updates via removable storage media.
6. Key Applications
Industrial automation: Robotics, conveyor systems, batch processing.
Safety-critical systems: Emergency shutdown (ESD), fire and gas monitoring.
