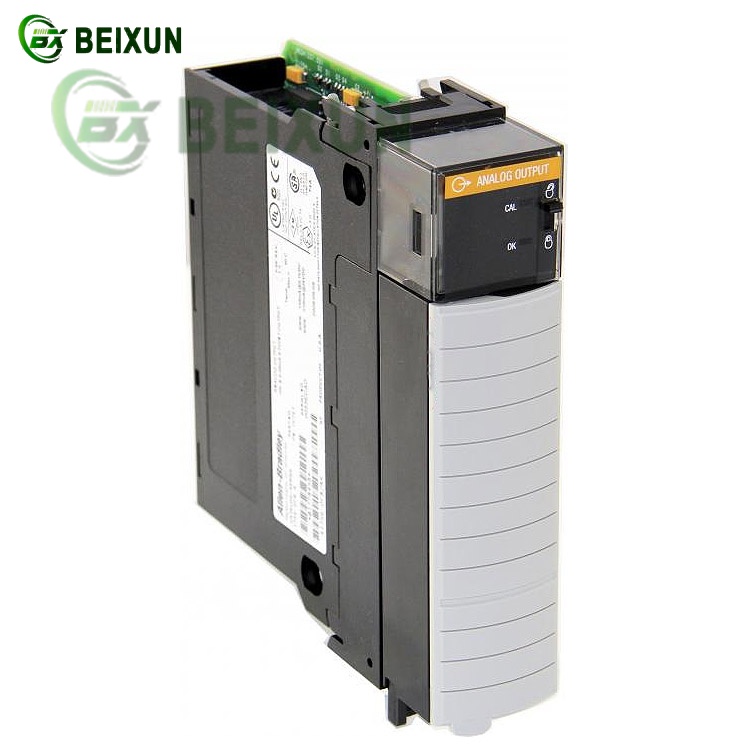

The A-B 1756-OF8 ControlLogix 8 Pt Analog Output Module is a high-performance module within Rockwell Automation’s ControlLogix series, designed to convert digital control signals into industrial-standard analog signals for driving external actuators and devices.
Its core functions and applications include:
1. Key Features
Output Types:
8 independently configurable voltage or current output channels.
Voltage range:
-10V to +10V; current range: 4mA to 20mA, compatible with industrial actuators and instrumentation.
High Precision:
15-16-bit resolution (including sign bit) ensures minimal signal conversion errors (±0.05% full-scale accuracy), ideal for precision control tasks.
Protection Mechanisms:
Built-in overvoltage protection, short-circuit protection, and electronic current limiting (21mA max for voltage outputs) to enhance reliability.
Communication & Synchronization:
Integrates with ControlLogix controllers via the backplane.
Supports synchronized updates across all channels (1ms per channel refresh rate).
2. Technical Specifications
Power Consumption:
Typical:
5.8W; Backplane current: 210mA @ 24VDC, 150mA @ 5.1VDC.
Isolation:
Channel-to-channel and channel-to-backplane electrical isolation to minimize interference.
Compatibility:
Supports ControlNet communication for bridging unscheduled data (up to 64 bidirectional connections).
3. Applications
Process Control:
Valve position control, variable frequency drive (VFD) speed adjustments, and analog-driven industrial processes.
High-Precision Systems:
Closed-loop control in industries like chemical, oil & gas, and power generation.
Scalable Architectures:
Distributed I/O configurations for large systems requiring thousands of analog I/O points.
Combining high accuracy, robust isolation, and fast synchronization, the 1756-OF8 is a critical component in automation systems demanding stable analog signal generation for mission-critical processes.
