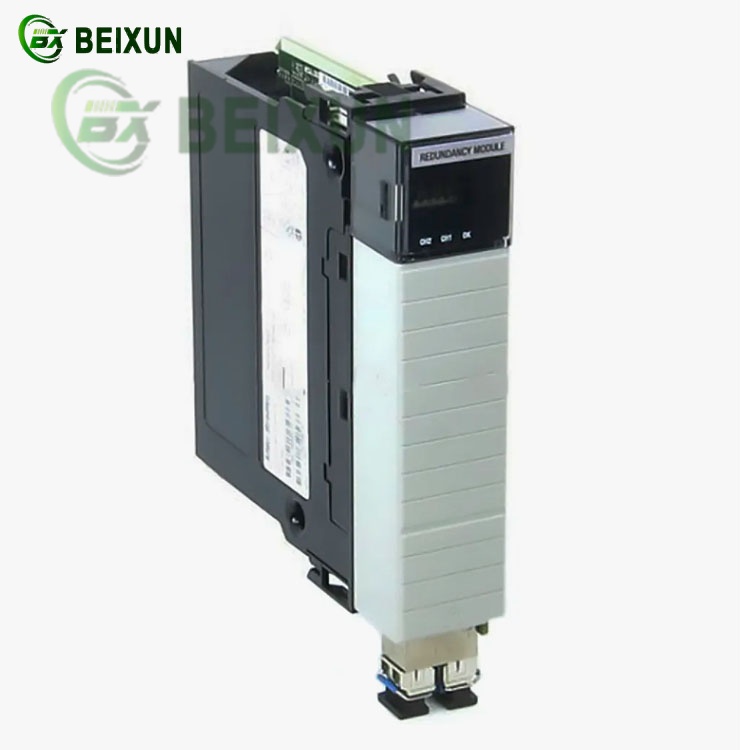

A-B 1756-RM2 ControlLogix Redundancy Module: Key Functions
This module is designed for ControlLogix systems to establish high-reliability redundancy architectures, eliminating single points of failure and ensuring continuous operation in critical industrial automation applications.
1. Core Functions
Redundant Control:
Supports dual-controller hot standby; automatic failover to the backup controller within ≤20ms during primary controller failure, ensuring seamless process continuity.
Synchronizes data and logic between controllers via dedicated fiber-optic links to maintain system integrity.
High-Speed Communication & Synchronization:
Fiber-optic synchronization at 1000 Mbps, enabling millisecond-level data mirroring for real-time-critical applications (e.g., power plants, chemical processes).
Inter-chassis synchronization delays as low as 10ms, preserving mission-critical task consistency.
Safety & Diagnostics:
Built-in non-intrusive diagnostics for real-time health monitoring and fault prediction.
Complies with SIL2 (Safety Integrity Level 2) standards, suitable for high-risk environments (e.g., nuclear facilities, oil & gas pipelines).
2. Technical Specifications
Electrical: Operating voltage: 24V DC; Power consumption: ≤6W (21 BTU/hr heat dissipation).
Environmental: Operating temp: -20°C to 70°C; Storage temp: -40°C to 85°C.
Communication: 4x 10/100 Mbps Ethernet ports; dedicated fiber-optic redundancy links.
Compatibility: Works with ControlLogix 5560/5570 and L7x controllers; integrates with ControlNet/CIP networks.
3. Typical Applications
Oil & Gas: Redundant control for refinery reactors and pipelines to prevent hazardous shutdowns.
Power Generation: Critical systems in nuclear/thermal plants for uninterrupted power supply and safety.
Transportation: SIL4-compliant emergency response systems in rail signaling.
Manufacturing: High-value production lines (e.g., steel mills) to minimize downtime costs.
4. Configuration & Maintenance
Redundancy Setup: Requires identical firmware versions on primary/backup controllers; configured via Studio 5000.
Hot-Swap Capability: Modules can be replaced without system shutdown.
Fiber-Optic Cabling: Use OM3/OM4 multimode fiber for optimal performance (max distance: 300m).
The 1756-RM2 redundancy module ensures fault-tolerant operation through ultra-fast failover, robust synchronization, and SIL2-certified safety, making it indispensable for industries where zero downtime and safety compliance are non-negotiable.
