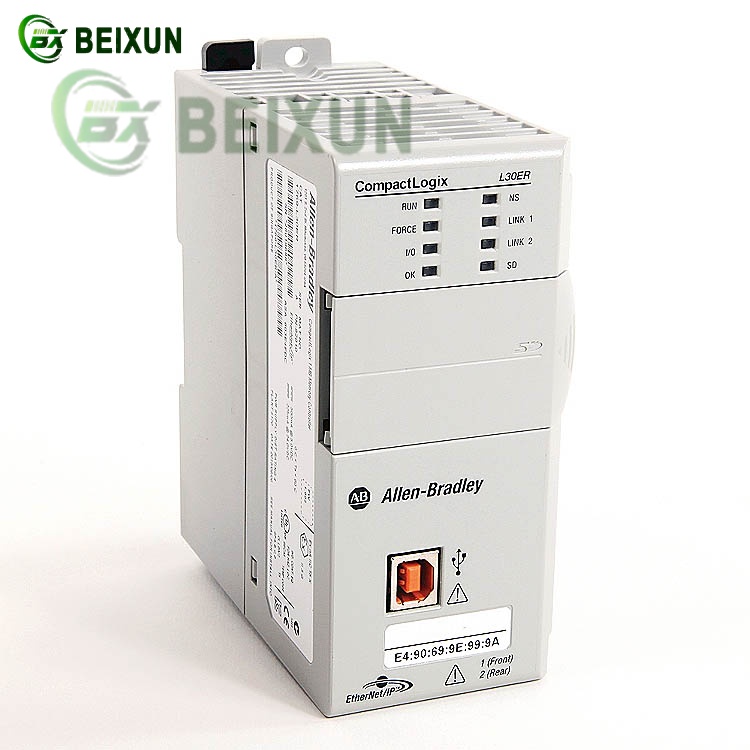

A-B 1769-L30ER Controller CompactLogix 1MB Memory

A-B 1769-L30ER Controller (CompactLogix 1MB Memory): Key Functions‌

The 1769-L30ER is a mid-tier controller in Allen-Bradley’s CompactLogix 5370 series, designed for small-to-medium industrial automation systems with its ‌1MB user memory‌ and flexible architecture.

Below are its core functions and technical highlights:

1. Core Functions‌

Memory & Data Processing‌
1MB User Memory‌: Supports logic execution, data handling, and communication tasks, expandable up to ‌2GB via SD card‌ for larger applications.
Handles complex logic operations and multi-axis motion control (e.g., 4-axis CIP Motion) for mid-scale automation needs.
Communication & Networking‌
Dual Ethernet Ports‌: Enable linear, ring, or star topologies, connecting up to ‌16 nodes‌ (e.g., HMIs, SCADA systems, gateways) via EtherNet/IP.
Integrated ‌DeviceNet‌ and ‌ControlNet‌ compatibility for distributed I/O control and real-time data exchange.
Embedded switch functionality synchronizes network traffic across ports.
I/O Expansion Capability‌
Locally supports up to ‌8x 1769 Compact I/O modules‌ (256 points), with ‌3 remote I/O groups‌ for distributed systems.
Modular design simplifies integration with analog/digital I/O modules for process control (e.g., temperature, pressure monitoring).

2. Technical Specifications‌

Category‌ ‌Details‌
Memory‌ 1MB user memory (expandable to 2GB via SD card); non-volatile storage
Ethernet Ports‌ 2x 10/100 Mbps ports with Device-Level Ring (DLR) redundancy
Motion Control‌ 4-axis CIP Motion via EtherNet/IP; kinematics support for robotics
Compatibility‌ Integrates with 1769 Compact I/O modules; programmed via Studio 5000

3. Applications‌

Discrete Manufacturing‌: Logic control for assembly lines, packaging machines, and conveyor systems.
Process Control‌: Analog monitoring (temperature/pressure) with A/D modules in chemical reactors.
Motion Systems‌: Coordinated multi-axis tasks (e.g., robotic pick-and-place, synchronized drives).

4. Maintenance & Scalability‌

Firmware Updates‌: Achieved via SD card or Studio 5000; backward-compatible with ControlNet modules.
Hot-Swap Support‌: I/O modules can be replaced without system shutdown.

The 1769-L30ER serves as a cost-effective automation hub, combining ‌1MB memory‌, dual Ethernet redundancy, and modular I/O expansion to deliver reliable control for discrete manufacturing, process automation, and motion systems. Its scalability and SIL-compatible architecture make it ideal for applications balancing performance and budget.
