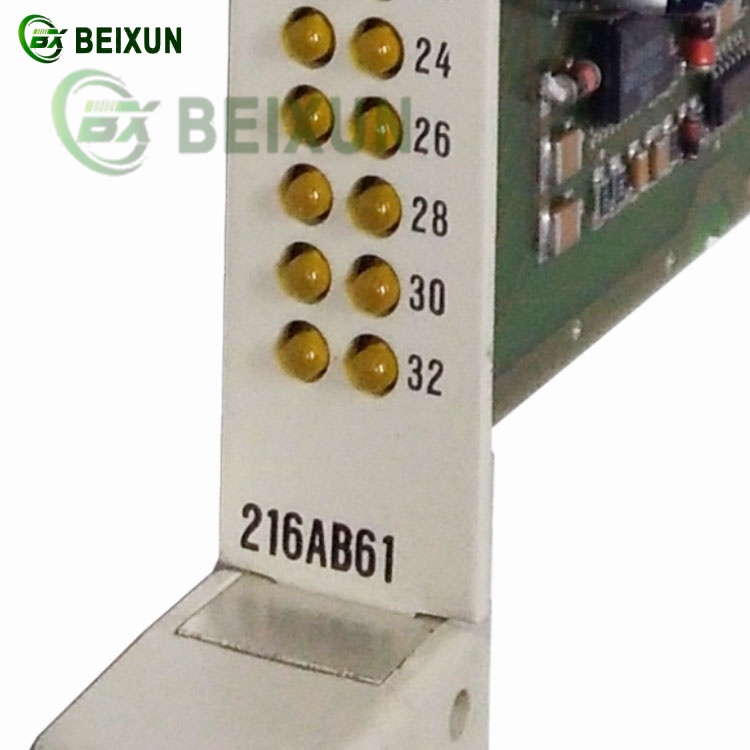

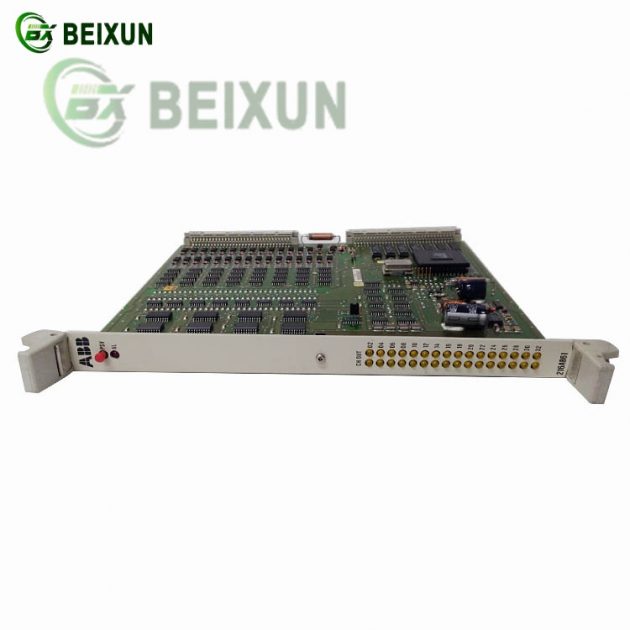

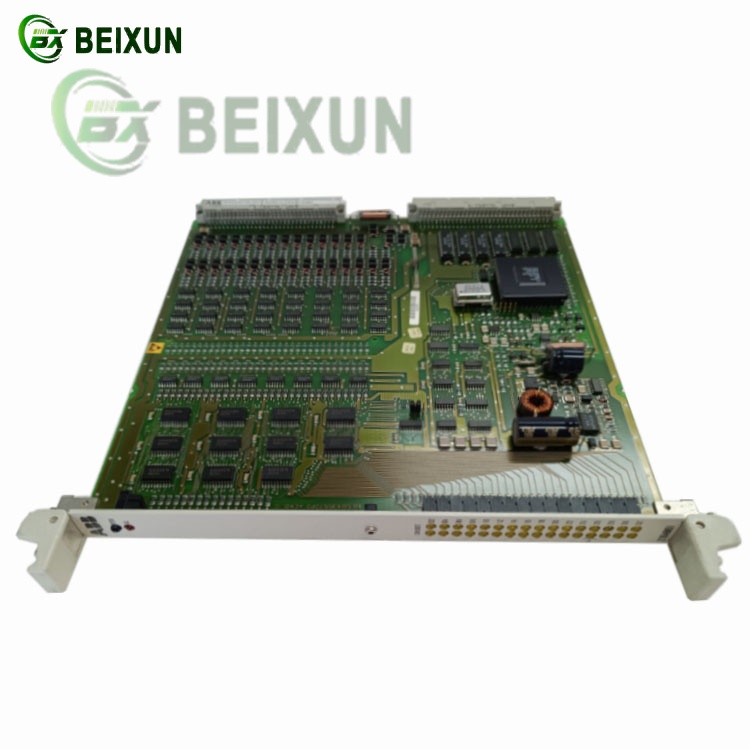

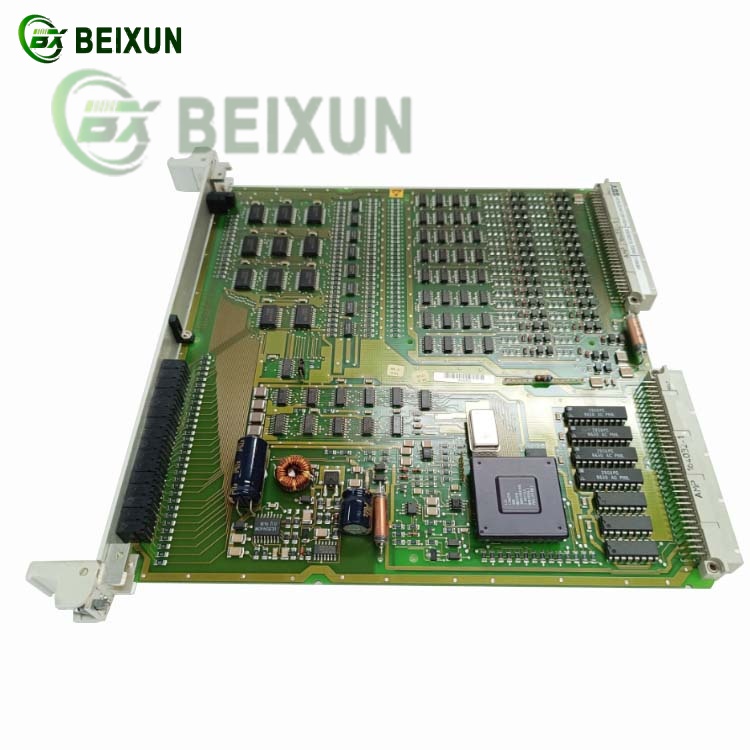

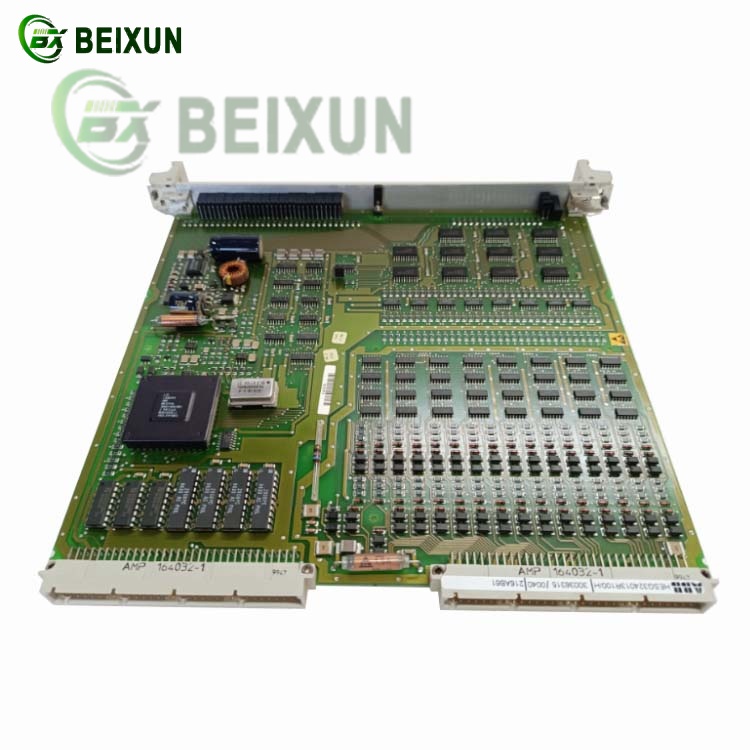

ABB 216AB61 HESG324013R100 HESG216881B Power Conversion Module
1. Core Function
Acts as a power conversion and protection module for industrial power systems, enabling efficient energy transformation and equipment safeguarding.
Integrates generator, transformer, and feeder protection into a unified system, replacing traditional relay-based solutions.
2. Key Features
Comprehensive protection: Covers overcurrent, differential, and directional protection for power equipment.
Flexible configuration: Allows parameter customization (e.g., pickup settings, time delays, trip logic) via PC without programming expertise.
Redundant design: Ensures high availability through parallel controller operation and fault-tolerant synchronization.
Modular architecture: Supports scalable expansion for diverse industrial applications.
3. Applications
Power generation: Protects generators and transformers in utility and industrial plants.
Grid infrastructure: Safeguards feeders and transmission lines in substations.
Process industries: Monitors critical parameters (e.g., voltage, current) in chemical and oil facilities.
4. Compatibility
Compatible with ABB’s HESG series and AC 800M controllers.
Supports digital I/O signal integration for customized control logic.
Note: This module combines advanced protection with modular flexibility, ideal for modern power systems requiring reliability and adaptability.
