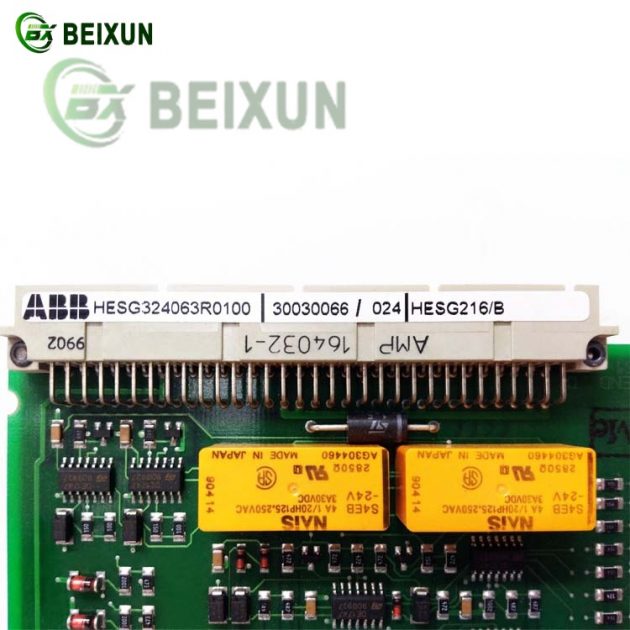

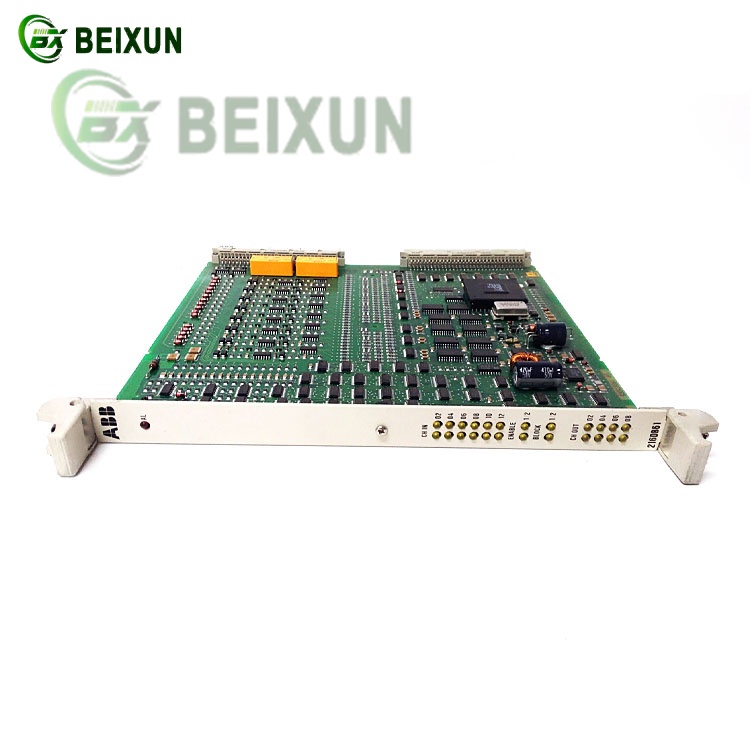

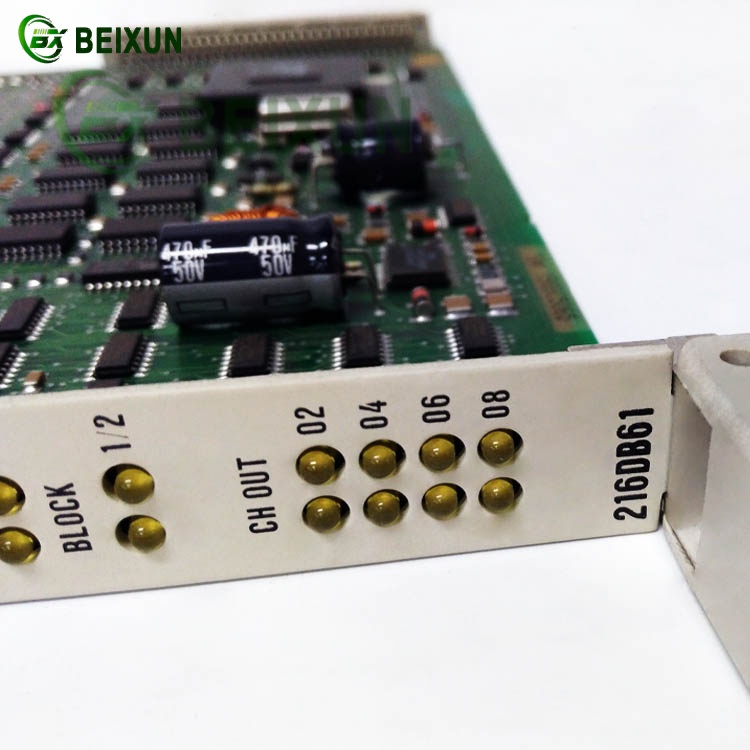

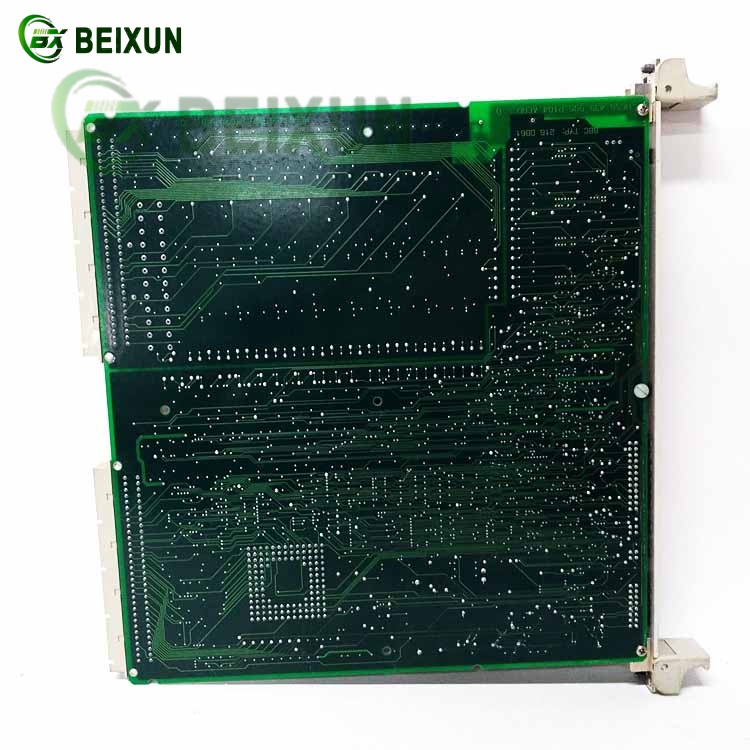

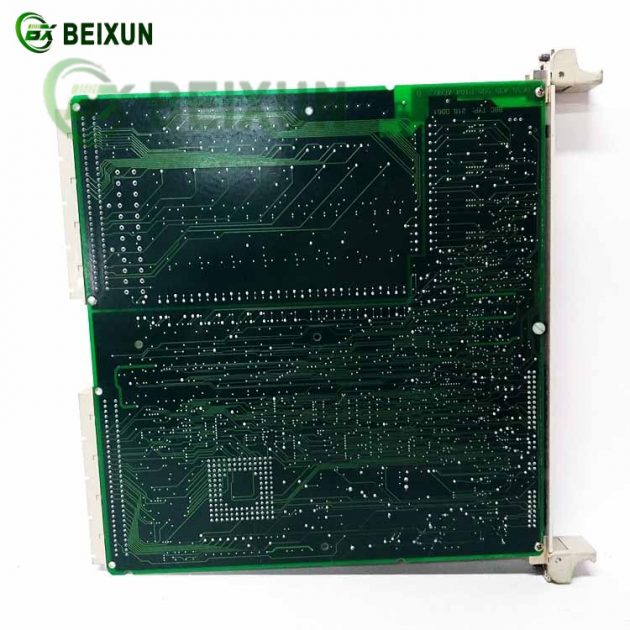

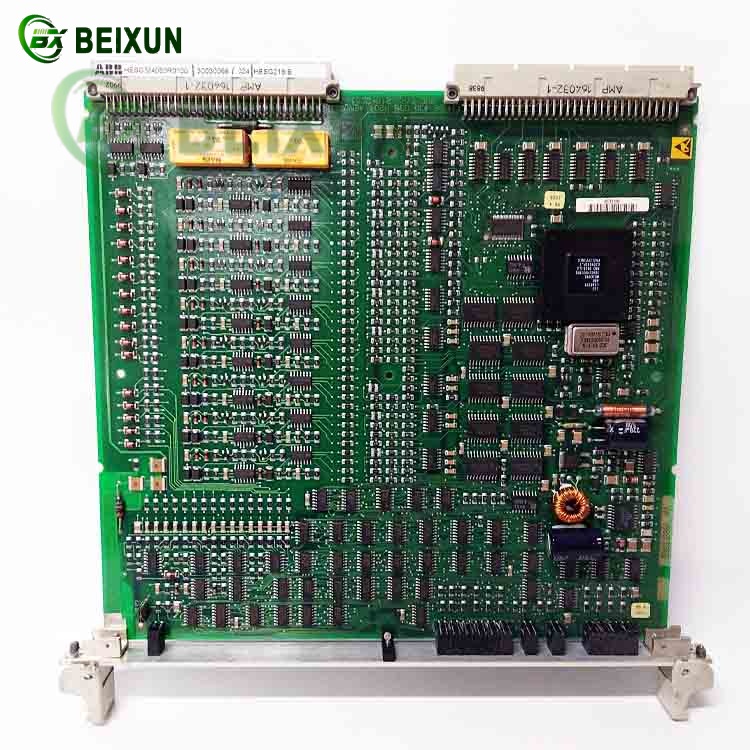

The ABB 216DB61 HESG324063R0100 HESG216882A is a digital output module designed for industrial automation and process control systems,
primarily serving as an execution unit in ABB’s Symphony Plus distributed control systems (DCS).
Its key functions include:
Digital Signal Output & Control:
Converts control signals from the DCS into physical switching commands to operate field devices (e.g., valves, relays, motors).
Supports 16-channel relay outputs (SPDT type) with a 5A/250VAC contact rating, ensuring robust switching capability for industrial loads.
Industrial Safety & Reliability:
Features galvanic isolation and self-diagnostics to prevent electrical interference and ensure stable operation in harsh environments (e.g., power plants, chemical plants).
Supports hot-swappable functionality for minimal system downtime during maintenance.
Power Supply & Integration:
Operates on +24VDC (backplane supply) and integrates seamlessly with ABB’s Symphony Plus platform for centralized automation control.
Compatible with ModbusTCP, Profibus, and other industrial protocols for flexible communication.
Technical Highlights:
High-density relay outputs for efficient control of multiple devices.
Compact DIN-rail mountable design for easy installation.
Wide temperature range (-20°C to +60°C) and IP20 protection for industrial durability.
