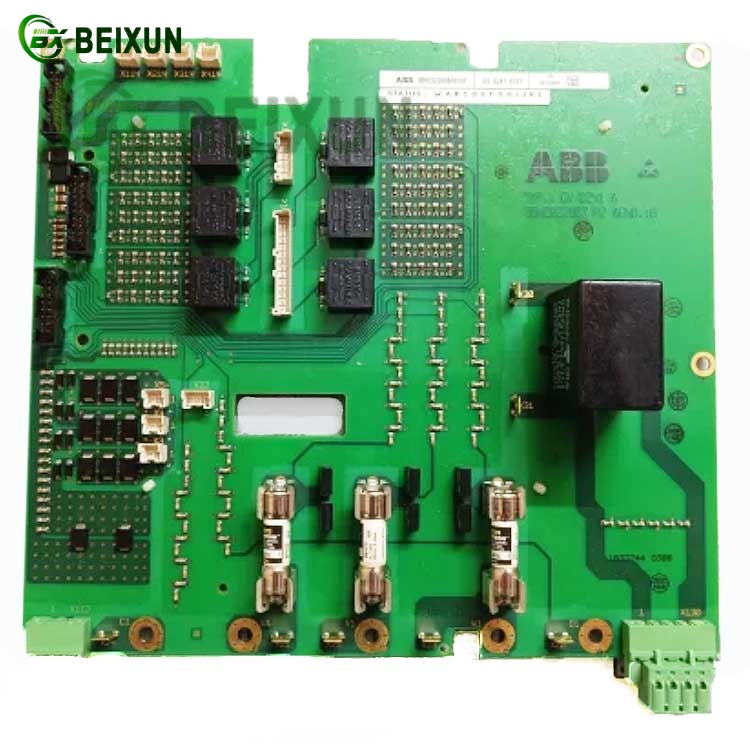

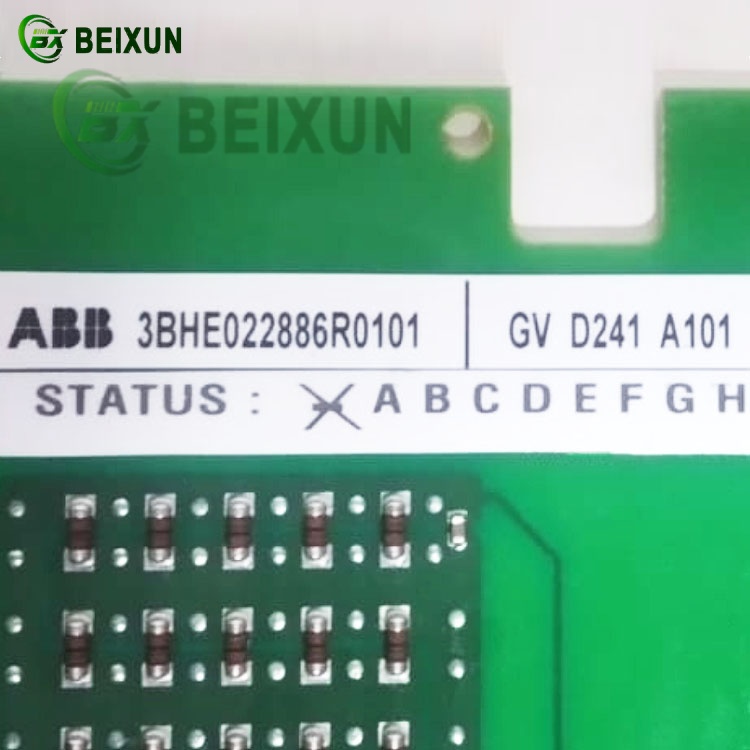

The ABB 3BHE022886R0101 PIN6080 Power Interface Board VCD241A101 is a specialized industrial control component with the following key functions and features:
1. Power Distribution & Interface Control
Acts as a power interface hub between high-voltage power sources and control systems, ensuring stable energy distribution to connected industrial equipment.
Provides voltage/current conditioning for sensitive control circuits, with overload and short-circuit protection.
2. System Integration & Communication
Interfaces with ABB AC 800PEC controllers and other industrial automation systems (e.g., DCS) for centralized power management.
Supports real-time monitoring of power parameters (e.g., voltage, current) via industrial protocols like PROFIBUS or Modbus.
3. Key Features
Modular design: Enables flexible integration into ABB’s Advant/800xA control platforms.
Diagnostic LEDs: Facilitates quick fault detection (e.g., power surges, signal loss).
Galvanic isolation: Protects low-voltage control circuits from high-voltage interference.
4. Typical Applications
Power generation: Used in synchronous generator excitation systems (e.g., ABB Unitrol) for precise voltage/reactive power control.
Industrial automation: Integrates with motor drives, robotics, and process control systems in harsh environments (e.g., oil/gas, metallurgy).
Note: This board is compatible with ABB’s AC 800PEC platform and configurable via Control Builder M software.
