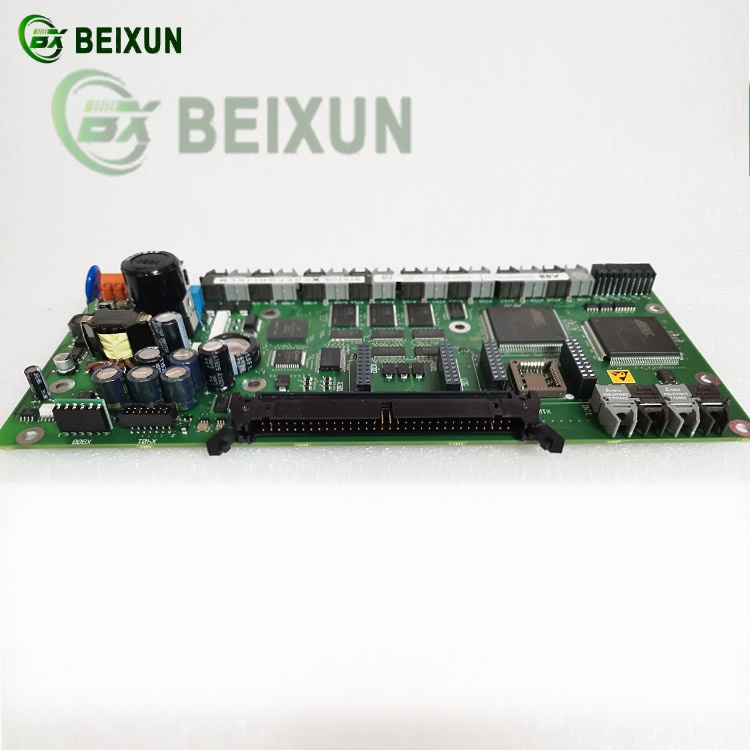

The ABB 3BHE024578P201 PPC907BE High Voltage Board PCB is a critical component in industrial power and automation systems, with the following key functions and features:
1. High-Voltage Power Management
Designed to handle high-voltage input/output signals (typically in power systems above 1kV) for applications like transformer control and motor drives.
Provides voltage conditioning and stabilization, ensuring safe operation in high-power environments.
2. System Integration & Control
Interfaces with ABB AC 800PEC and 800xA control systems for centralized power monitoring and regulation.
Supports real-time data exchange via industrial protocols (e.g., Modbus, Profibus) for grid synchronization and fault diagnostics.
3. Key Features
Modular design: Allows flexible integration into ABB’s Advant/Compact 800xA platforms.
Protection mechanisms: Includes overvoltage/overcurrent protection and thermal monitoring for fail-safe operation.
Galvanic isolation: Prevents noise interference between high-voltage and low-voltage circuits.
4. Typical Applications
Power generation: Used in excitation systems for synchronous generators (e.g., ABB Unitrol) to regulate reactive power.
Industrial automation: Deployed in steel plants, oil refineries, and mining for high-power motor control.
Renewable energy: Integrates with wind turbine converters and solar inverters for grid compliance.
Note: This board is compatible with ABB’s Control Builder M software for configuration and diagnostics.
