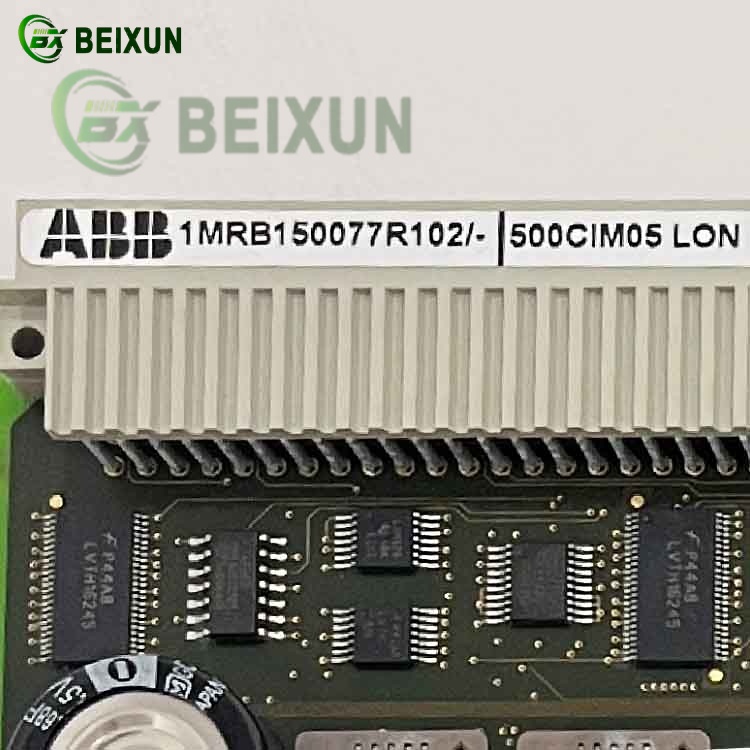

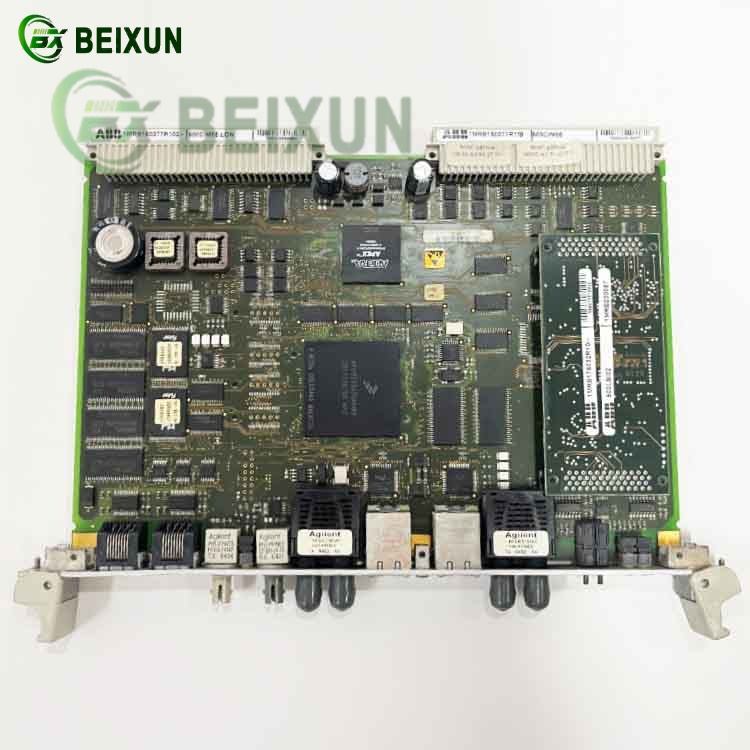

The ABB 500CIM05 1MRB150077R1/B Controller Board is a specialized industrial automation component with the following key functions:
Core Functions
1. EMI Filtering & Signal Conditioning
Integrates a ferrite-chip-based filter for high-frequency electromagnetic interference (EMI) suppression in industrial control systems
Provides signal conditioning for stable data transmission in noisy environments
2. Communication Interface
Acts as a modular interface between PLC/DCS systems and field devices (e.g., sensors, actuators)
Supports programmable logic control with high-precision signal handling
3. Industrial Control Integration
Designed for seamless compatibility with ABB’s automation platforms (e.g., AC500 PLC series)
Enables distributed control in power plants, manufacturing, and process industries
4. Technical Features
Compact Design: Surface-mountable 0402 package (1mm length) for high-density PCB applications
Robust Performance: Operates in extreme temperatures (-55°C to +125°C) with inorganic material construction
Isolation: Closed magnetic circuit structure prevents crosstalk in multi-device setups
