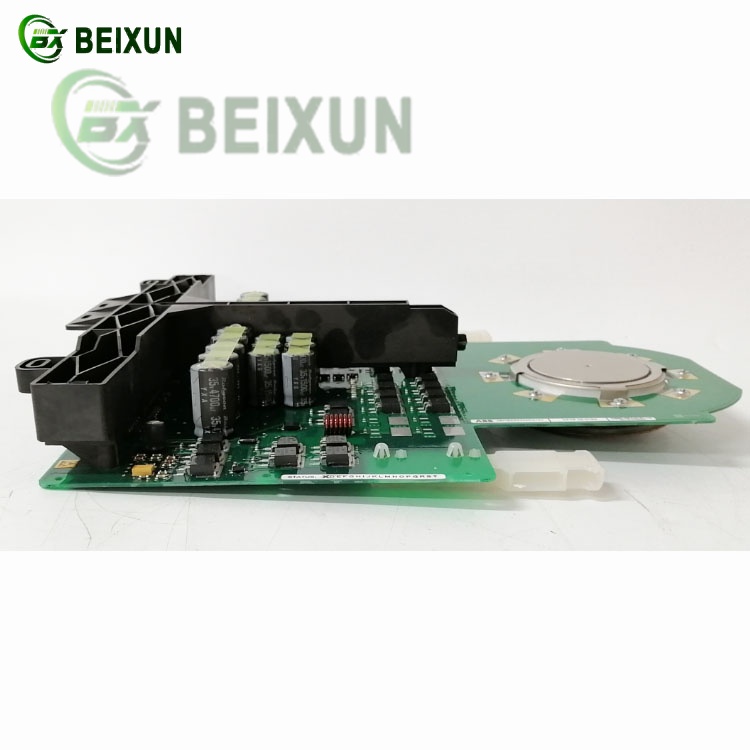

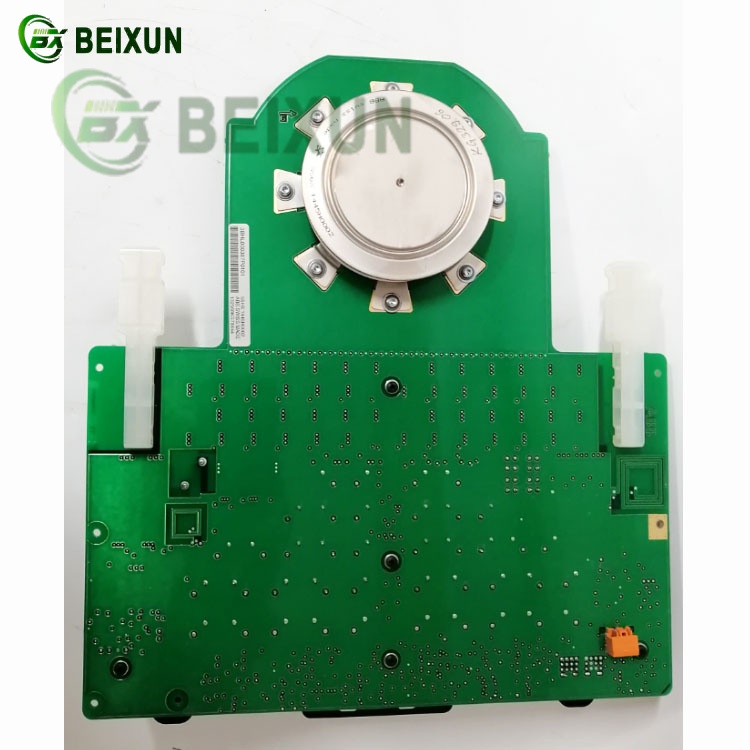

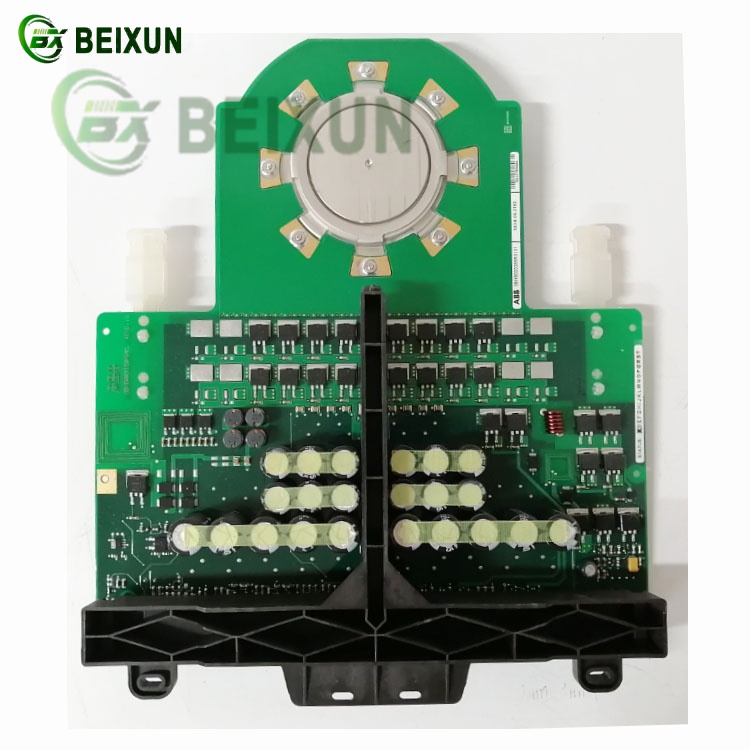

The ABB 5SHX1445H0002 3BHL000387P0101 Silicon Controlled Rectifier (SCR) Module is a high-power semiconductor device with critical industrial applications.
Its core functions include:
1. Power Conversion & Control
Performs AC/DC conversion in high-voltage circuits, enabling precise control of electrical power flow.
Optimized for phase-angle control in industrial rectification and motor speed regulation.
2. Industrial Automation Integration
Interfaces with PLCs (Programmable Logic Controllers) for automated process control in production lines (e.g., packaging, assembly).
Supports sequential control systems to replace traditional relay logic.
3. Motion Control Applications
Used in servo motor and stepper motor systems for position/speed control via PLC programming.
Enables smooth acceleration/deceleration in CNC-like applications with compact modular design.
4. Key Technical Features
High current/voltage tolerance: Designed for heavy-duty industrial loads.
Modular construction: Facilitates maintenance and system integration.
5. Typical Use Cases
Industrial machinery: Printing presses, injection molding machines, conveyor systems.
Power electronics: Voltage regulation in metallurgy, chemical processing.
Note: This SCR module is part of ABB’s power electronics portfolio, compatible with automation systems like PLCs for SIL-rated safety functions.
