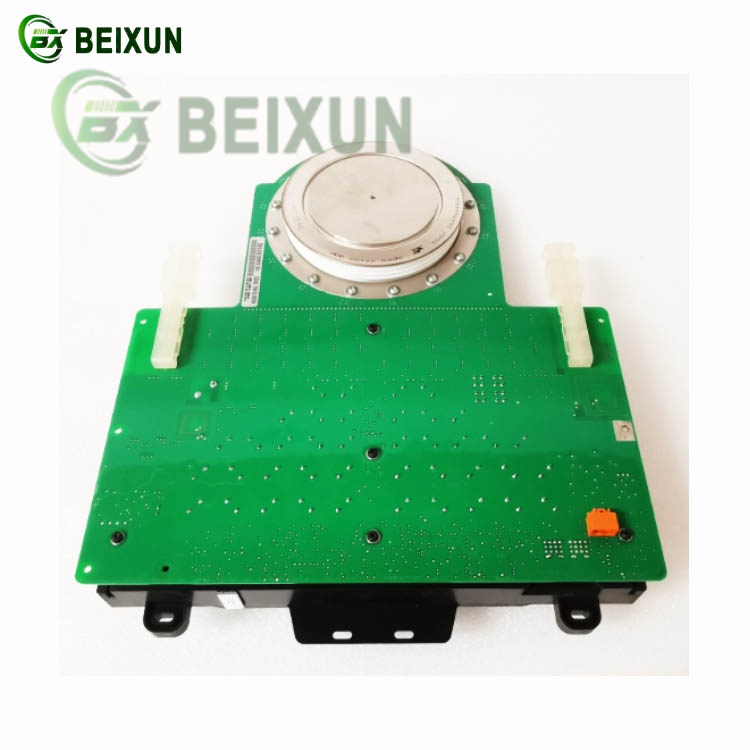

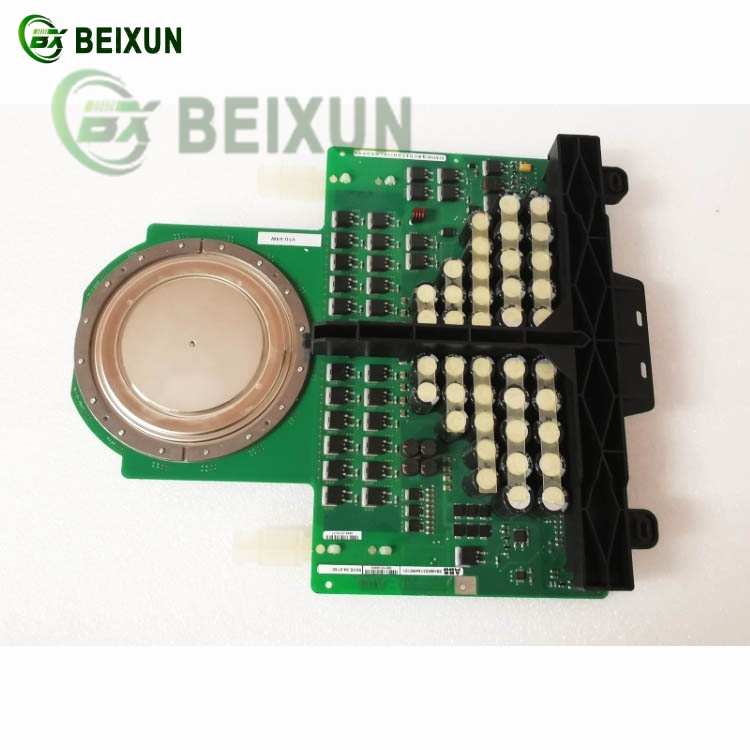

The ABB 5SHX2645L0004 3BHL000389P0104 IGCT Module is a high-power semiconductor device designed for advanced industrial and energy applications.
Its core functions include:
1. High-Power Switching
Acts as a solid-state switch for controlling large currents (up to 10 kA) and voltages (up to 10 kV) in power electronics systems.
Combines the advantages of GTOs (Gate Turn-Off thyristors) and IGBTs with faster switching speeds and lower conduction losses.
2. Key Technical Features
Integrated Gate-Commutated Thyristor (IGCT) Technology: Enables precise control of power flow with minimal energy loss.
Modular Design: Facilitates easy integration and maintenance in complex systems.
High Reliability: SIL-rated for critical applications, with robust thermal management and fault tolerance.
3. Industrial Applications
Motor Drives: Controls high-power industrial motors in steel mills, mining, and oil/gas sectors.
Renewable Energy: Used in wind/solar inverters and grid stabilization systems (e.g., STATCOMs).
Railway Electrification: Powers traction systems and substations.
4. Advanced Control Capabilities
Supports real-time monitoring and adaptive control algorithms via PLC/DCS integration.
Enables series operation for ultra-high-voltage applications (e.g., HVDC transmission).
Note: This module is part of ABB’s power electronics portfolio, optimized for efficiency and scalability in megawatt-scale systems.
