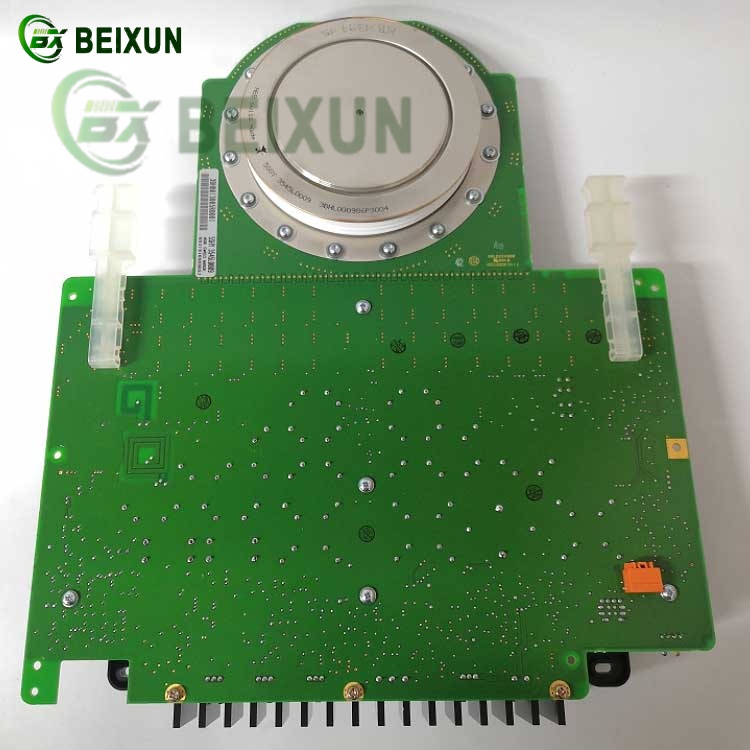

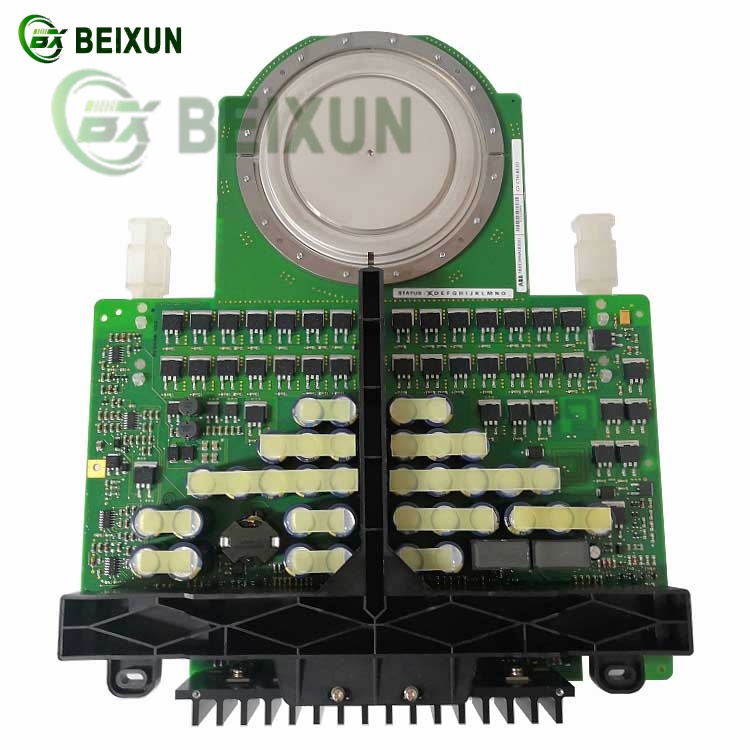

ABB 5SHY3545L0009 3BHB013085R0001 Thyristor Module (3BHE009681R0101 GVC750BE101)
1. Core Function
Acts as an Integrated Gate-Commutated Thyristor (IGCT) module, integrating GTO technology with fast transistor-like switching for high-power energy conversion.
Combines low conduction losses of thyristors with high-voltage blocking capability, optimized for industrial and grid applications.
2. Key Features
High power capacity: Designed for high-current (4500A+) and high-voltage (3500V+) operations.
Integrated gate drive: Includes built-in low-inductance gate drivers for precise switching control.
Low dynamic losses: Reduces energy dissipation during switching by ~50% compared to traditional GTOs.
Robust packaging: Features a press-pack design for enhanced thermal cycling and fault tolerance.
3. Applications
HVDC transmission: Used in converter stations for efficient DC power transmission.
Industrial motor drives: Controls high-power motors in heavy industries (e.g., steel, mining).
Renewable energy systems: Integrates with wind/solar inverters for grid synchronization.
Static VAR compensation (SVC): Manages reactive power in electrical grids.
4. Compatibility
Compatible with ABB’s 5SHY/5SHX series power stacks and control units like GVC750BE101.
Supports 1+1 redundancy configurations for critical applications.
Note: This IGCT module is a key component in high-power electronics, offering reliability and efficiency in demanding environments.
