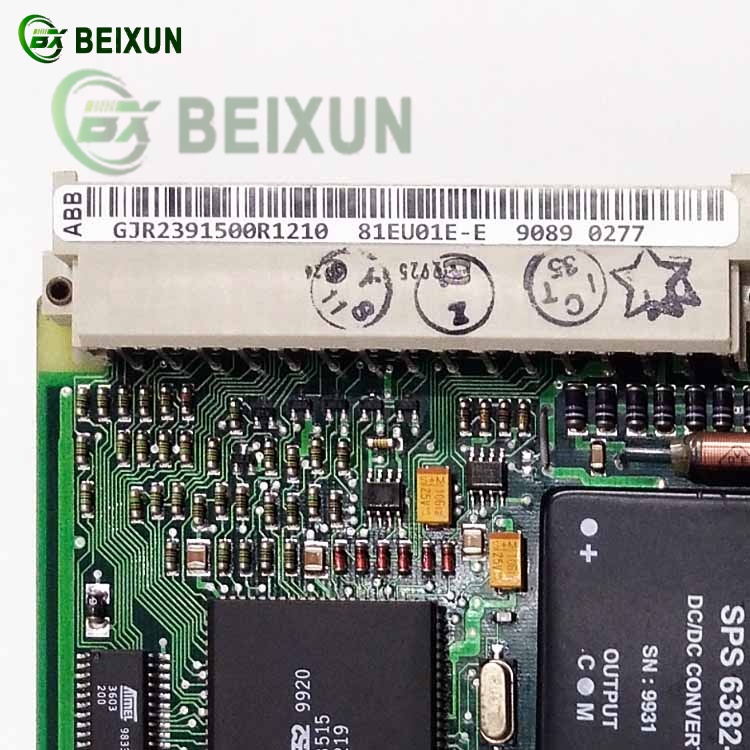

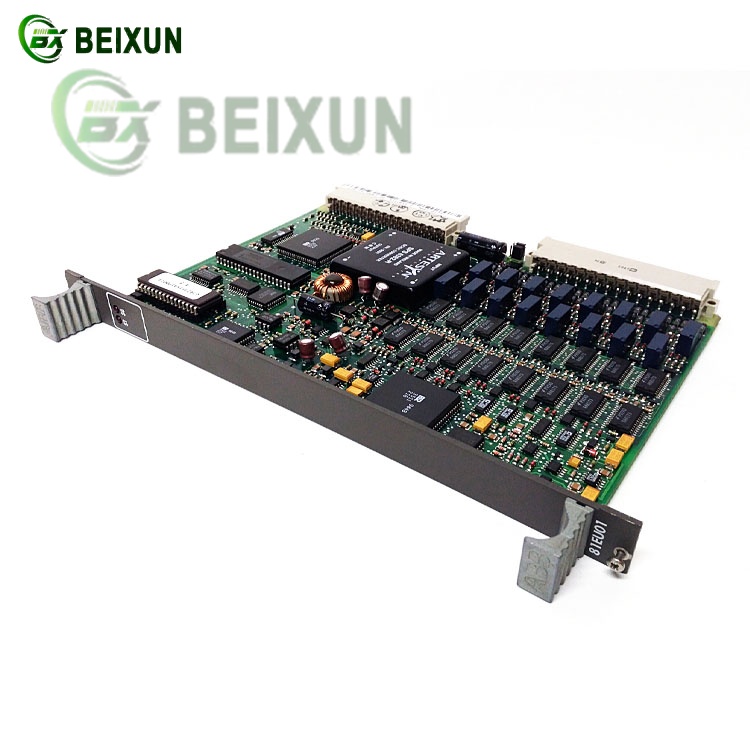

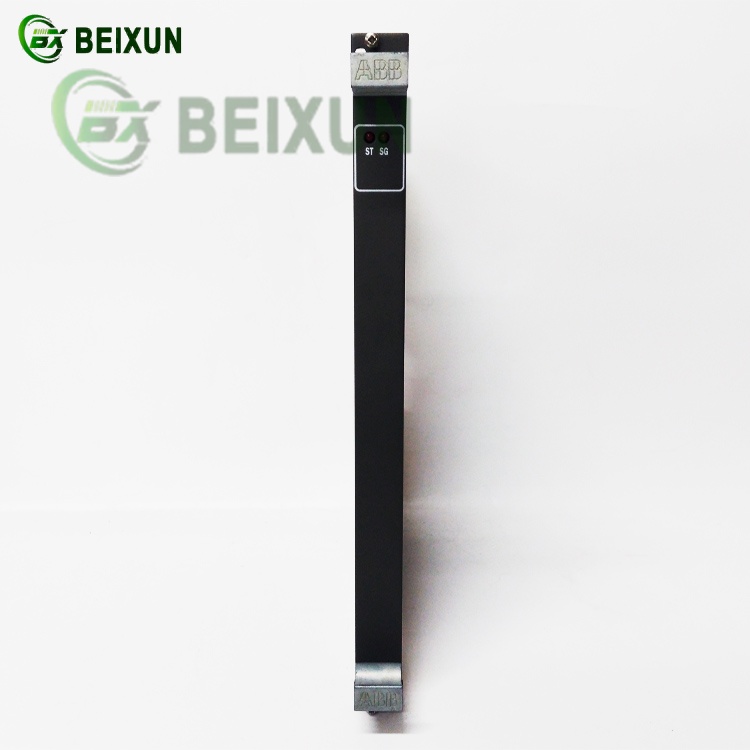

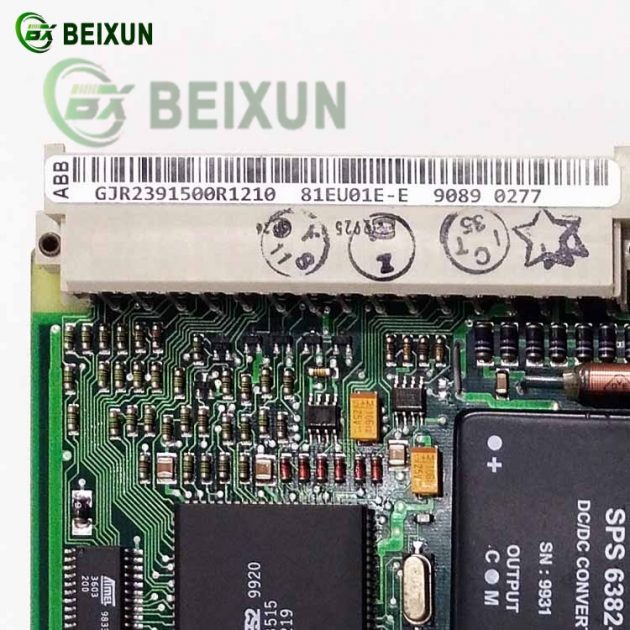

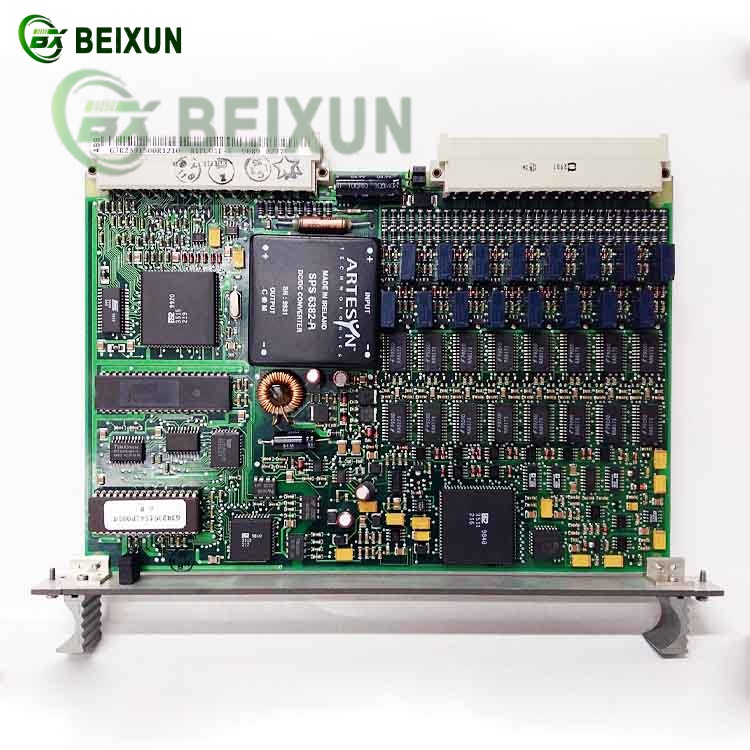

The ABB 81EU01E-E GJR2391500R1210 GJR2391511R42 is a digital input module designed for industrial automation and control systems,
primarily serving as a signal acquisition and processing unit in ABB’s distributed control systems (DCS).
Below are its key functions and applications:
1. Core Functions:
Digital Signal Input:
Receives discrete signals from sensors, switches, or field devices (e.g., proximity sensors, pushbuttons) and converts them into binary data (0/1) for system processing.
Supports multiple input channels (configurable per application) for simultaneous monitoring of various devices.
Signal Conditioning & Isolation:
Provides electrical isolation to protect the control system from voltage spikes or noise in industrial environments.
Ensures high accuracy in signal detection (e.g., pulse counting, trigger signals).
System Integration:
Compatible with ABB’s Symphony Plus and other DCS/PLC platforms, enabling seamless data exchange via Ethernet or standard bus interfaces.
Supports programmable configurations (e.g., input thresholds, filtering) to adapt to specific automation tasks.
2. Applications:
Process Control: Monitors parameters like temperature, pressure, or flow rates in manufacturing or energy plants.
Equipment Monitoring: Tracks machine states (e.g., motor on/off, fault detection) for predictive maintenance.
Building Automation: Used in HVAC, lighting, and security systems for centralized control.
3. Technical Highlights:
Operating Temperature: -20°C to +60°C (industrial-grade durability).
Modular Design: DIN-rail mountable for easy installation.
