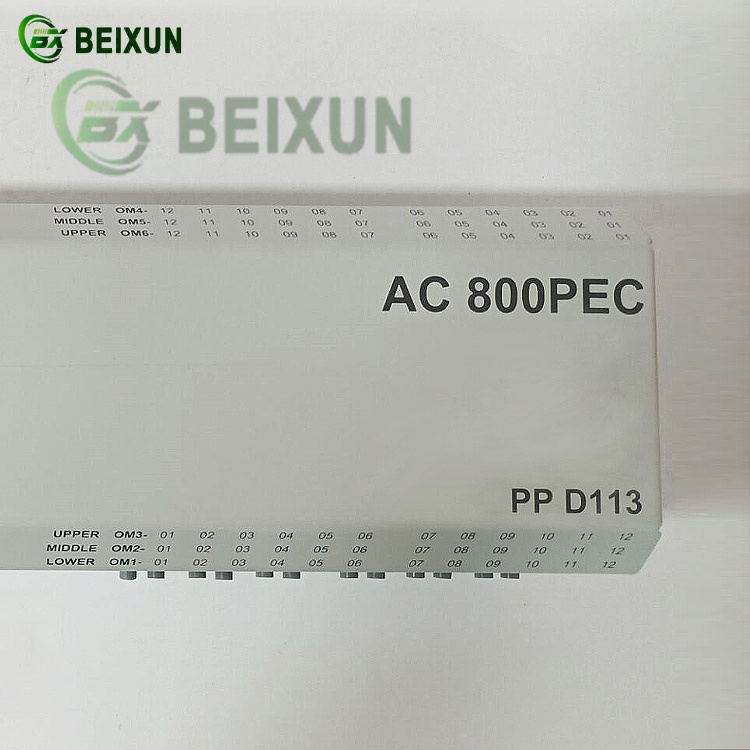

The ABB AC800PEC PPD113A01-10-150000 3BHE023784R1023 Inverter Control Module is a high-performance industrial automation component designed for precision control in demanding applications.
Here are its key functions and features:
Core Functions
1. Inverter & Motor Control
Executes real-time control algorithms for AC/DC inverters and motor drives, enabling precise speed/torque regulation
Supports cycle times as low as 100 μs for high-speed industrial processes
2. Advanced Process Automation
Integrates with ABB’s AC800PEC series to manage complex automation tasks in power plants, refineries, and manufacturing systems
Combines FPGA-based processing and floating-point calculations for dynamic control performance
3. Modular System Integration
Hot-swappable design allows maintenance without disrupting operations
Compatible with ABB’s 800xA DCS and third-party systems via PROFIBUS, Modbus TCP/IP, and Ethernet/IP
4. Technical Specifications
Processor: High-speed embedded CPU with FPGA co-processing
I/O System:

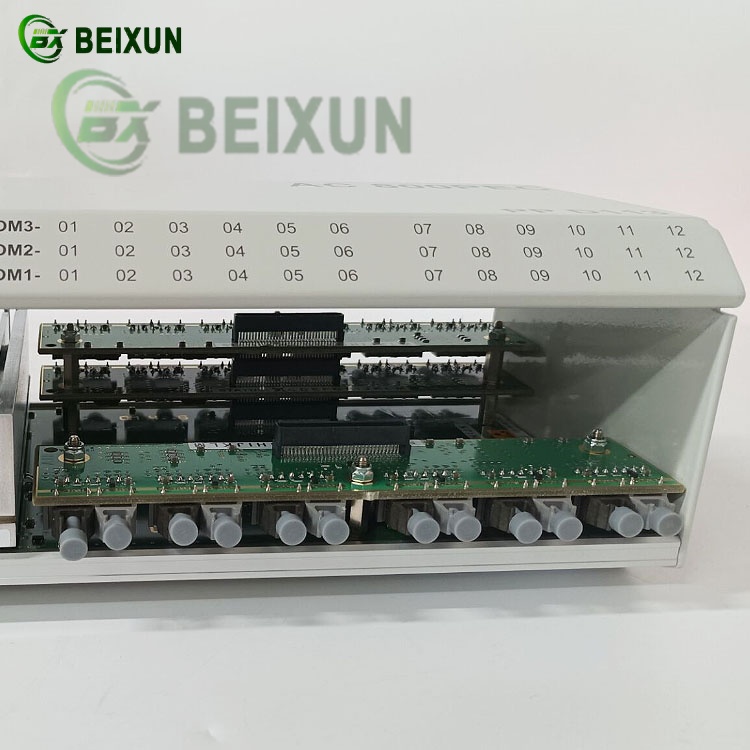

Fast I/O: Fiber-optic links for sub-1ms response (immune to EMI)
Slow I/O: Supports ABB’s S800 modules for standard signals
Environment: Operates at -40°C to +85°C with industrial-grade durability
5. Applications
Power Generation: Excitation control in turbines/generators
Industrial Drives: Steel mills, paper machines, and robotic systems
Oil & Gas: Pump and compressor control
6. Key Advantages
MATLAB/Simulink® Integration: Enables model-based control design
Safety Compliance: Meets industrial standards for EMI and vibration resistance
