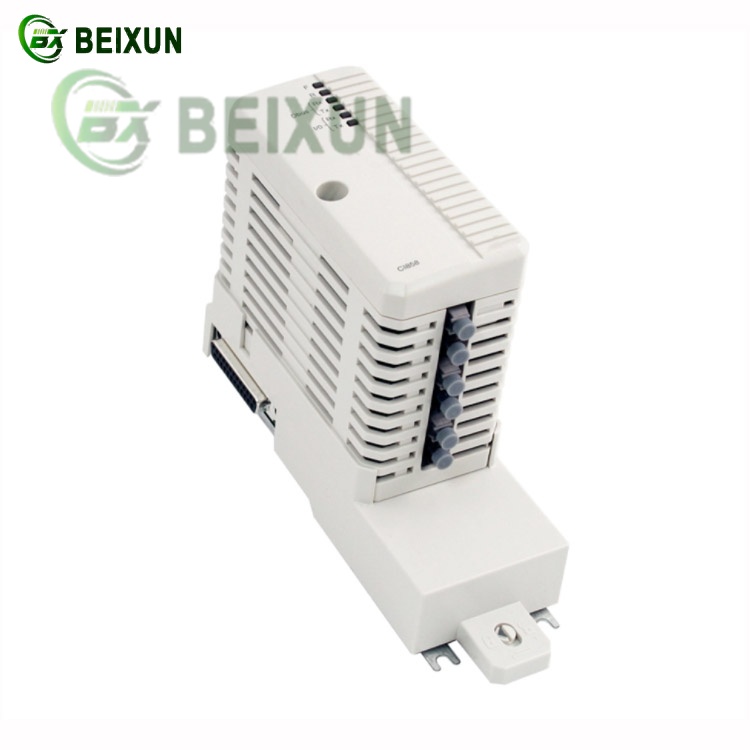

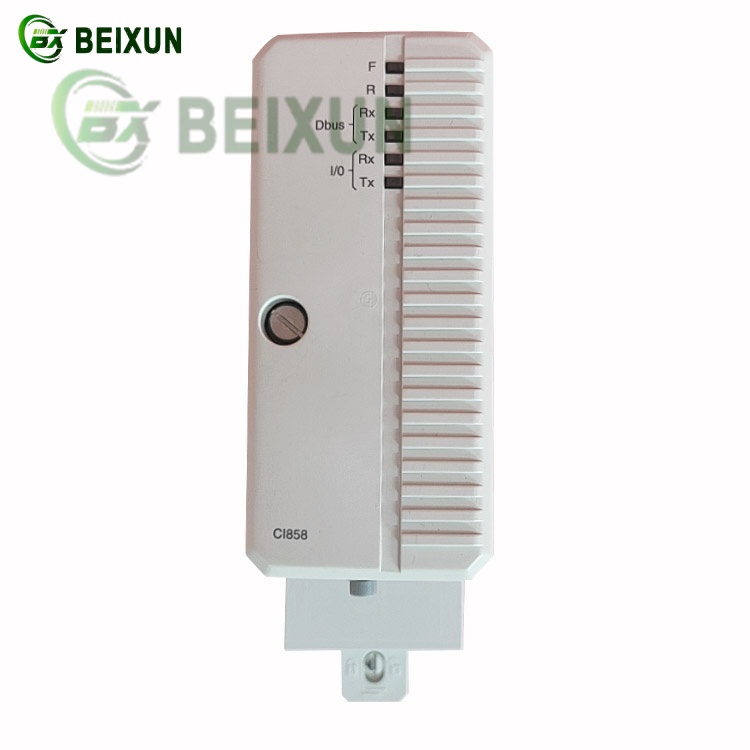

ABB CI858K01 3BSE018135R1 DriveBus Interface Module

ABB CI858K01 3BSE018135R1 DriveBus Interface Module‌

Function‌

The ‌CI858K01‌ is a ‌DriveBus communication module‌ for ABB’s ‌AC 800M controllers‌, enabling high-speed real-time control of ‌ABB drives (e.g., ACS 800, ACS 880)‌ via ‌DriveBus protocol‌.

1. Key Features‌

✔ ‌DriveBus Interface‌ – Direct connection to ABB drives (faster than fieldbus)
✔ ‌Real-Time Control‌ – Supports fast ‌torque/speed regulation‌
✔ ‌Hot-Swappable‌ – Reduces downtime during maintenance
✔ ‌LED Diagnostics‌ – Quick status monitoring (power, communication, errors)

2. Applications‌

Motor control‌ (pumps, fans, conveyors)
Process automation‌ (cement, mining, oil & gas)
High-performance drive systems‌

3. Specifications‌

Protocol‌: ABB DriveBus (proprietary high-speed link)
Max Drives Supported‌: Up to ‌6 drives per module‌
Power Supply‌: 24V DC (via backplane)
Isolation‌: 500V AC (electrical separation)
