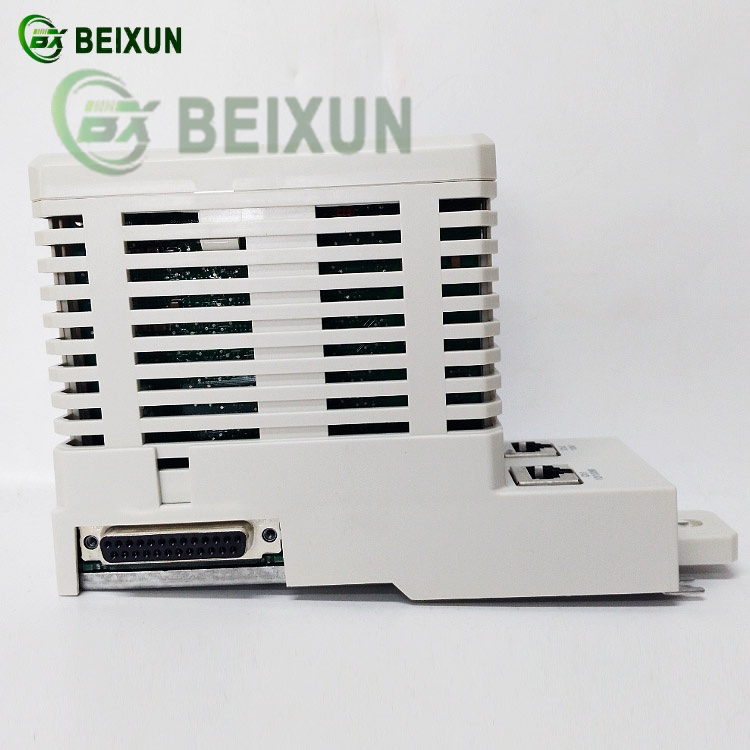

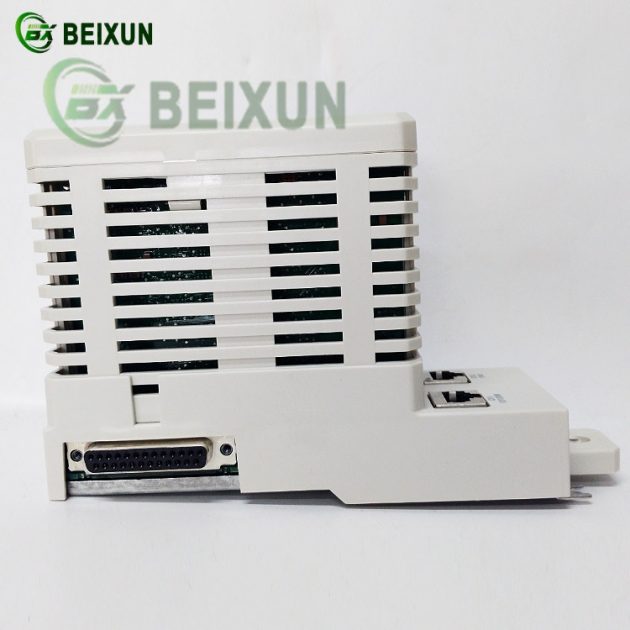

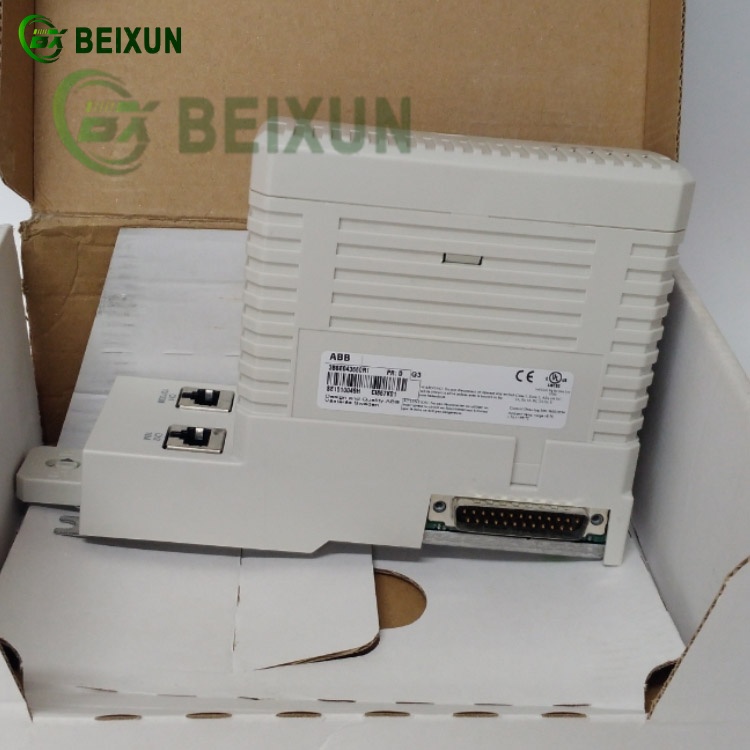

ABB CI867K01 3BSE043660R1 Modbus TCP/IP Interface Module
1. Core Function
The CI867K01 is a Modbus TCP/IP communication interface for ABB’s AC 800M controllers, enabling seamless data exchange between the controller and Modbus TCP-compatible devices (PLCs, HMIs, sensors, etc.) over Ethernet.
2. Key Features
Dual-Channel Ethernet:
Channel 1: 10/100 Mbps (full duplex)
Channel 2: 10 Mbps (half duplex).
Protocol Support: Modbus TCP (industry-standard request-response protocol).
Redundancy & Hot-Swap: Supports redundant configurations and hot-swapping for high availability.

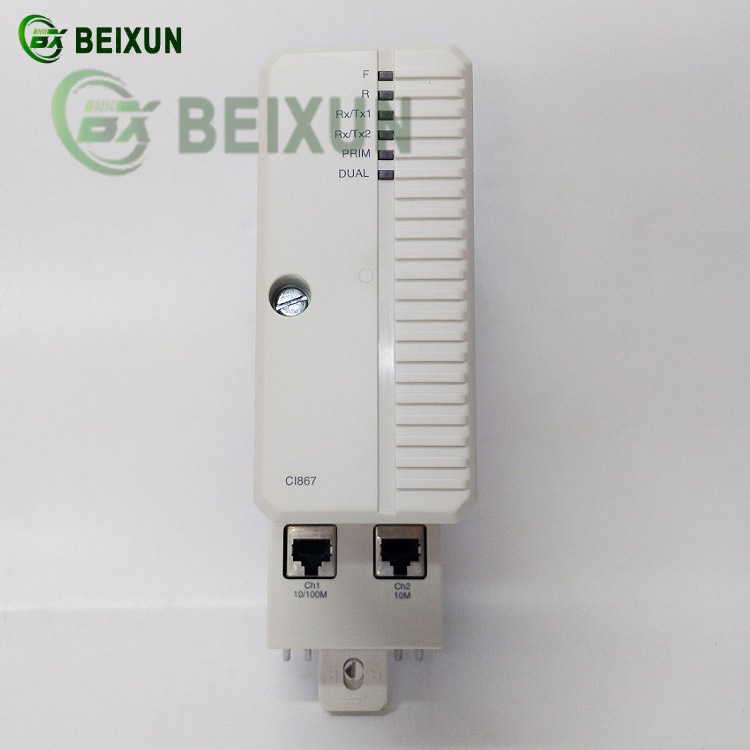

LED Diagnostics: 6 dual-color LEDs for real-time monitoring (power, communication, faults).
High-Speed Processing: Built-in processor for efficient data handling.
3. Technical Specifications
Max Connections: 70 slaves + 8 masters per module
Power Supply: 24V DC (via CEX-Bus)
Isolation: 4000V lightning protection, 1.5A overcurrent protection
Operating Temp: -40°C to +70°C (storage), 0°C to +55°C (operation)
4. Applications
Industrial Automation: Integrates PLCs, drives, and sensors in production lines.
Energy Systems: Monitors grid equipment in power plants.
Remote Monitoring: Enables cloud-based data collection and control.
5. Advantages
Plug-and-Play: Easy setup with standard RJ45 connectors and GSD files.
Robust Design: Operates in harsh industrial environments.
Legacy Integration: Bridges Modbus RTU devices to modern Ethernet networks.
