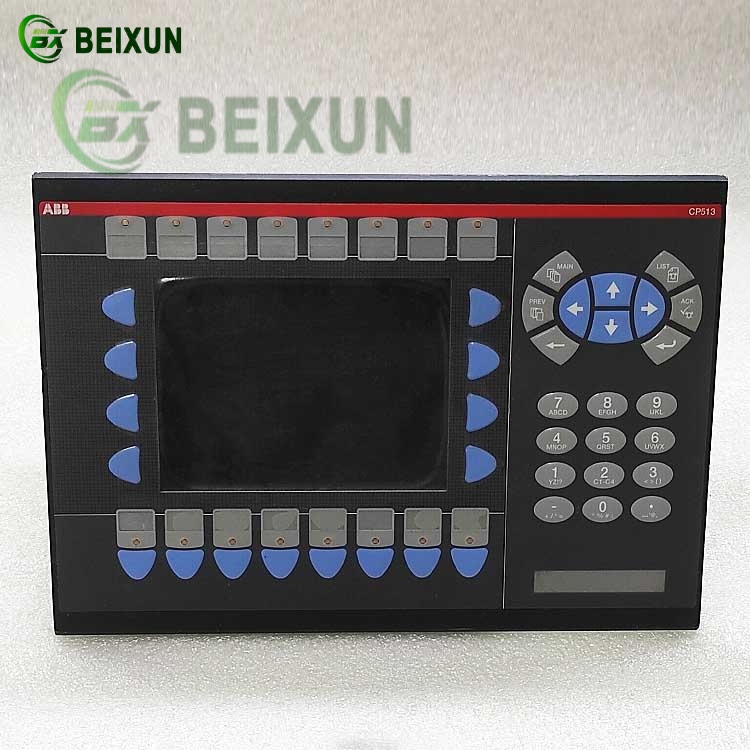

ABB CP513 HMI 24VDC Control Panel
Core Function
The ABB CP513 is a rugged HMI (Human-Machine Interface) control panel designed for industrial automation, providing real-time process visualization, monitoring, and operator control in demanding environments.
1. Key Features
High-Resolution Display:
5.7-inch color TFT LCD (320×240 pixels) with resistive touchscreen for intuitive operation.
IP65/NEMA 4X front-panel protection against dust and water ingress.
Industrial-Grade Durability:
24V DC power supply (wide voltage range: 19.2–30V DC).
Extended temperature range (-20°C to +60°C) for harsh industrial conditions.
Multiple Communication Interfaces:
Ethernet (10/100 Mbps) for fast data exchange with PLCs and SCADA systems.
Serial ports (RS232/RS485) for legacy device connectivity.
USB port for easy configuration and data transfer.
Real-Time Data & Alarming:
Displays process values, trends, and alarms for efficient monitoring.
Supports multi-language interface for global deployment.
2. Applications
Process Industries: Used in chemical, oil & gas, and water treatment plants for operator control.
Manufacturing Automation: Interfaces with PLCs, robots, and motor drives in production lines.
Energy & Utilities: Monitors power distribution, wind turbines, and substations.
3. Advantages
Reliable & Robust: Built for 24/7 operation in extreme conditions.
User-Friendly: Touchscreen and customizable UI for easy navigation.
Flexible Connectivity: Compatible with ABB AC 800M and other automation systems.
