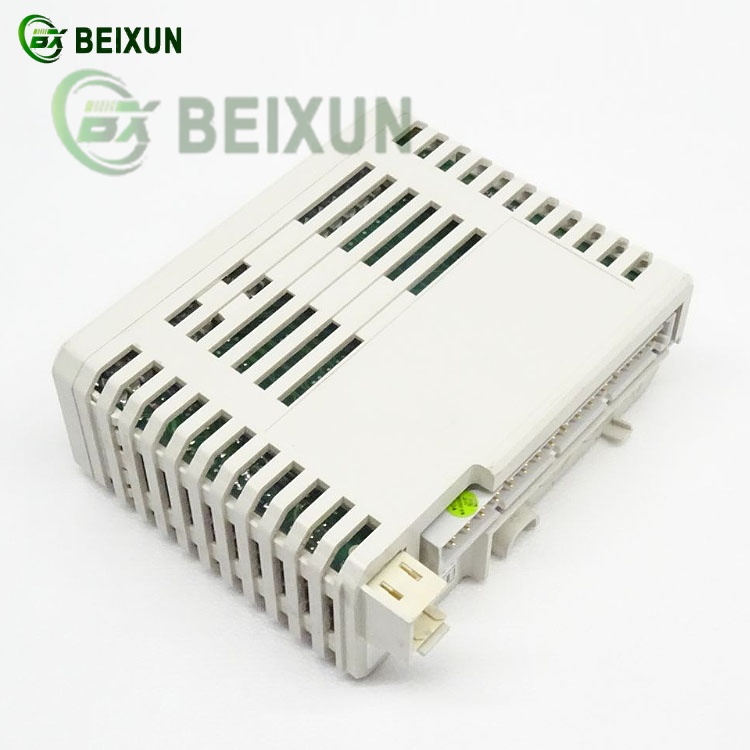

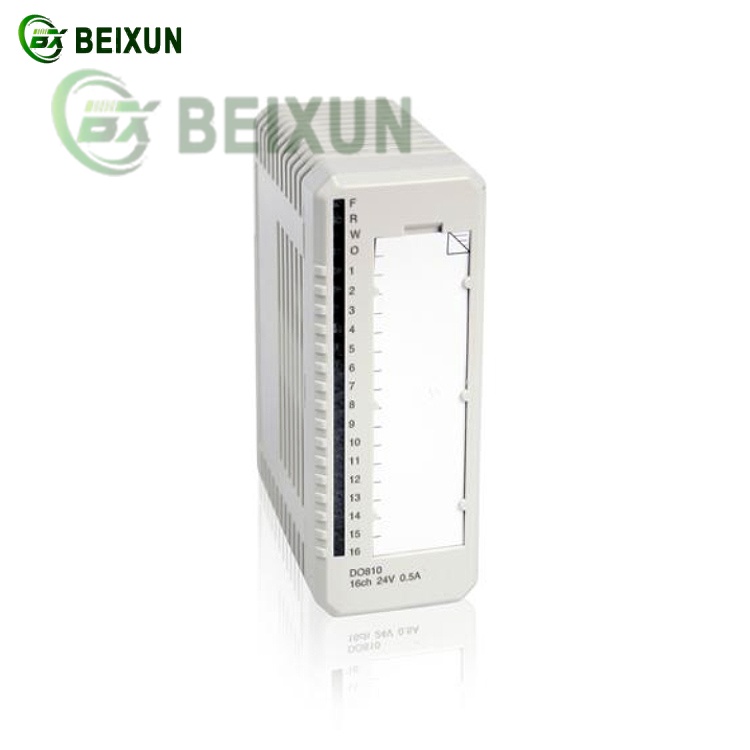

The ABB DO810 3BSE008510R1 Digital Output Module is a high-performance industrial automation component designed for robust signal control and device actuation.
Here’s its technical profile:
1. Core Functions
Digital Signal Output:
Controls field devices (e.g., motors, valves, relays) via 16 configurable digital output channels
Supports multiple output types: relay (10-30V DC) and transistor (0.5A max continuous current)
Industrial Communication:
Interfaces with PLC/DCS systems via PROFIBUS DP, Ethernet, or CAN bus
Enables remote monitoring and control in distributed architectures
2. Protection & Diagnostics
Integrated safeguards: short-circuit, overvoltage, and thermal protection per channel
Real-time fault detection with LED status indicators for each output
3. Technical Specifications
Isolation: 1500V AC galvanic isolation (channel-to-channel and system-wide)
Response Time: <1ms for rapid industrial process control
Environmental Rating: Operates in -25°C to +70°C with high EMI immunity
4. Key Features
Hot-Swappable Design: Allows maintenance without system downtime
Modular Configuration: Two isolated groups (8 channels each) with independent voltage monitoring
Programmable Logic: Customizable output behavior via software
