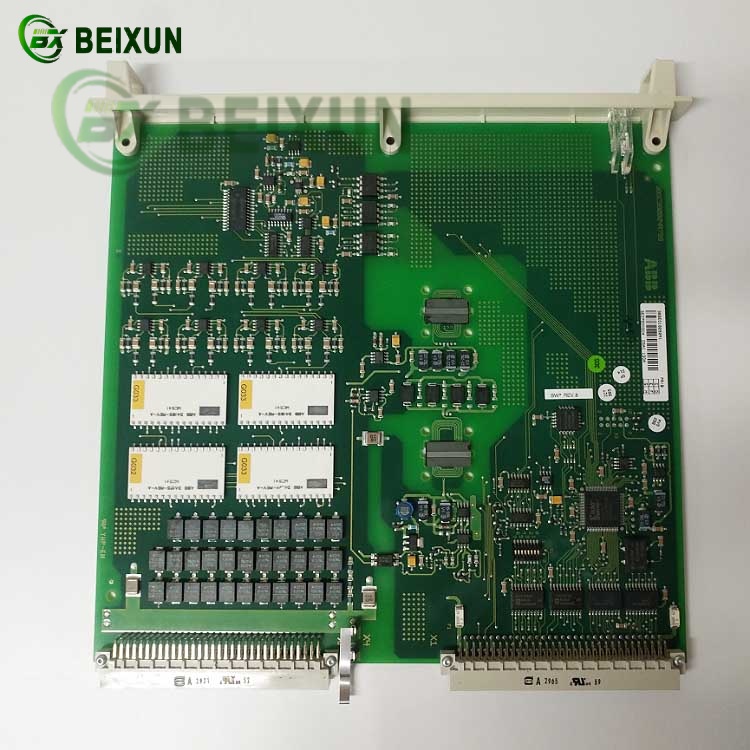

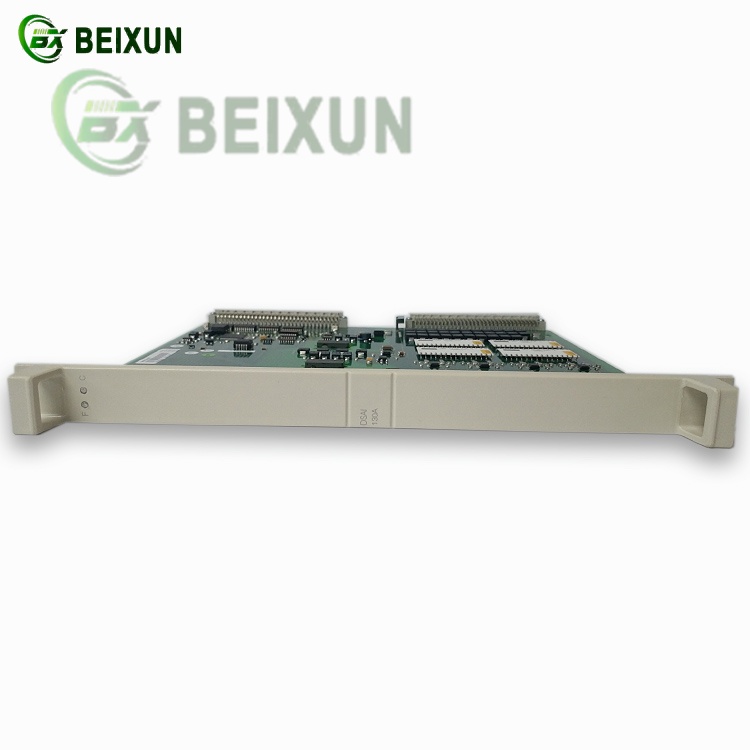

The ABB DSAI 130A 3BSE018292R1 Analog Input Board (16-Channel) is a high-precision industrial automation module designed for reliable signal acquisition and processing.
Here’s its technical breakdown:
1. Core Functions
Analog Signal Acquisition:
Receives 16-channel analog inputs (e.g., 4-20mA, 0-10V) from field sensors (temperature, pressure, flow rate)
Converts analog signals to digital data for PLC/DCS systems with high resolution
Signal Conditioning:
Provides galvanic isolation (1500V AC) per channel for noise immunity
Includes built-in filtering for stable performance in electrically noisy environments
Industrial Communication:
Supports Ethernet and multiple protocols (e.g., PROFIBUS, Modbus) for seamless integration with ABB 800xA/AC800M control systems
2. Technical Specifications
Channels: 16 isolated input channels (configurable for voltage/current)
Resolution: ≥12-bit for high-accuracy measurement
Update Rate: <1ms per channel for real-time monitoring
Operating Temperature: -40°C to +85°C (industrial-grade durability)
This module combines high-density signal acquisition with ABB’s robust engineering for critical industrial applications.
