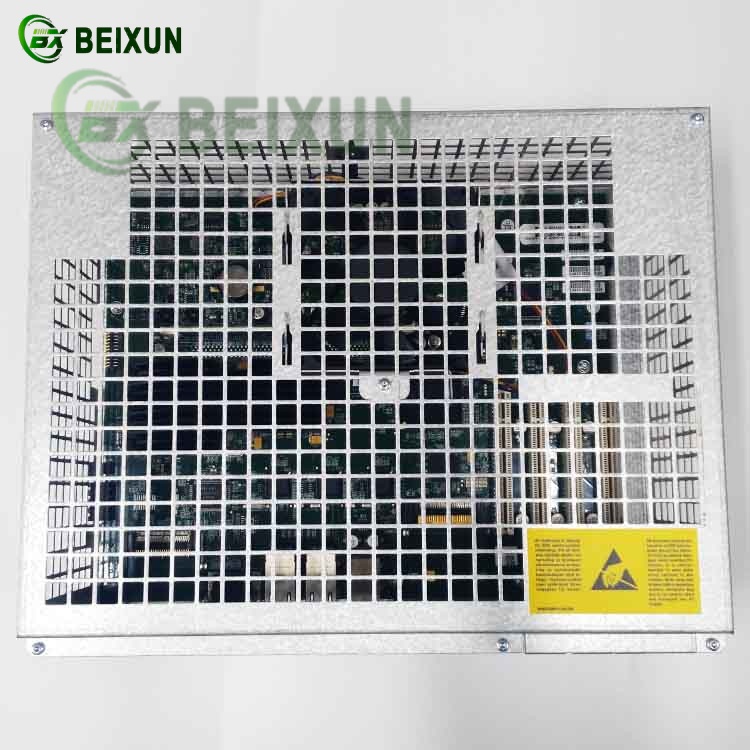

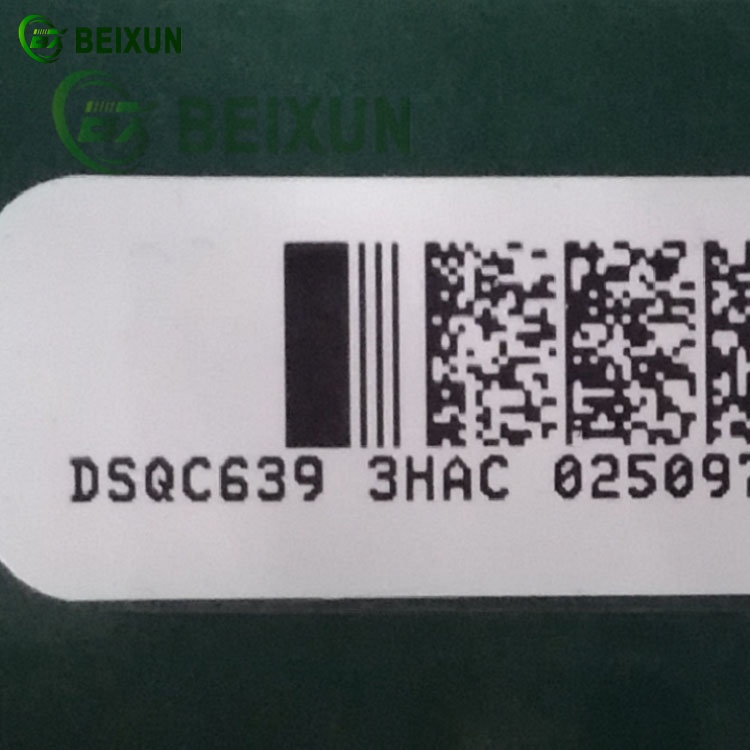

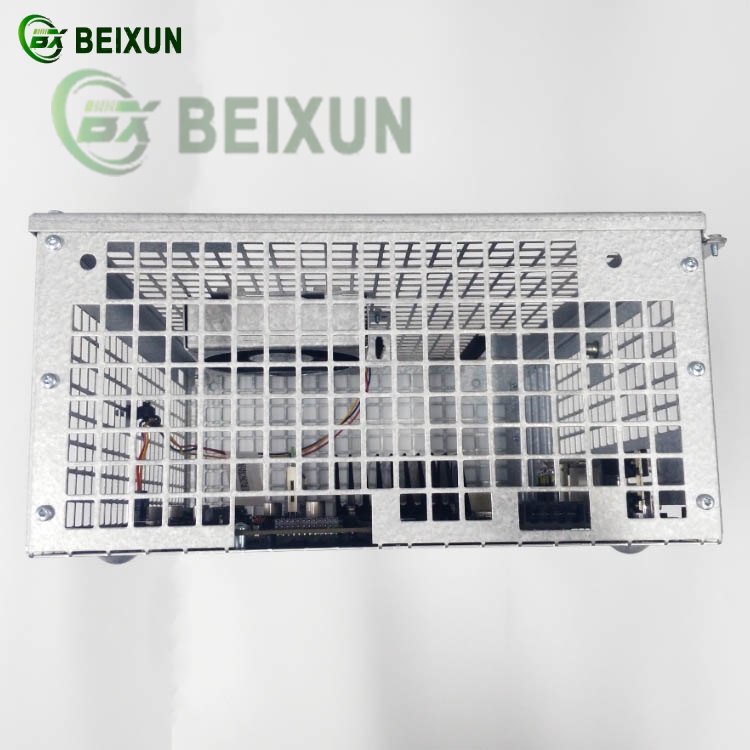

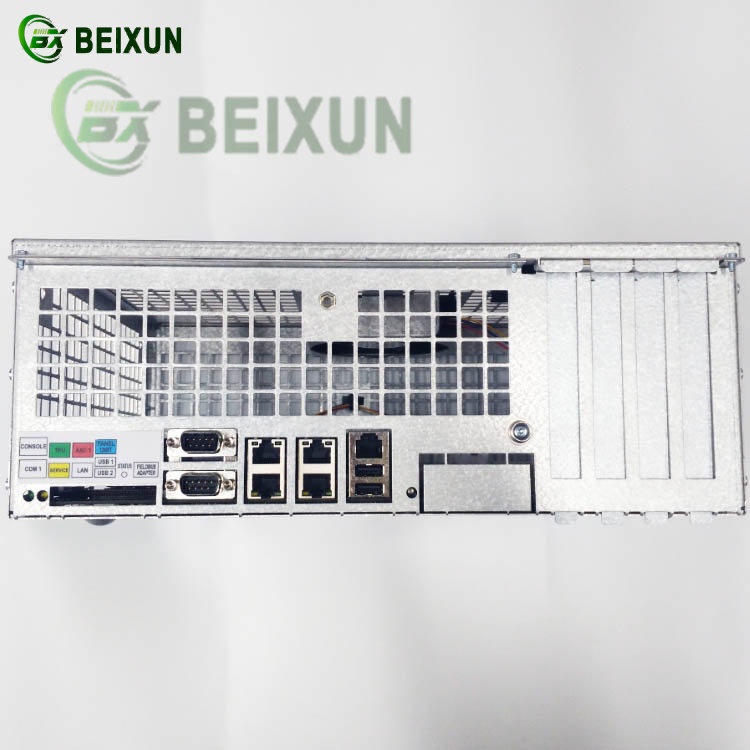

ABB DSQC639 3HAC025097-001/16 Robot Host Control Board

The ‌ABB DSQC639 3HAC025097-001/16 Robot Host Control Board‌ serves as the central processing unit for ABB industrial robots, integrating motion control, logic execution, and system coordination.

Here’s its technical breakdown:

1. Core Functions‌

Motion Control & Trajectory Planning‌:
Executes real-time kinematic calculations for precise robot arm movements (e.g., welding, assembly)
Supports multi-axis synchronization (up to 6 axes) with microsecond-level precision
System Coordination‌:
Acts as the “brain” of ABB robots, managing I/O modules, sensors, and peripheral devices
Implements logic control for automated workflows (e.g., conditional loops, error handling)
Data Processing & Communication‌:
Processes sensor data (force, vision) for adaptive control
Interfaces with upper-level systems via Ethernet/IP, PROFIBUS, or DeviceNet

2. Key Features‌

Modular Design‌: Hot-swappable for maintenance without production downtime
Safety Compliance‌: Meets ISO 13849 (PLd) for fail-safe operations
Diagnostic Tools‌: LED indicators and software alerts for fault isolation
