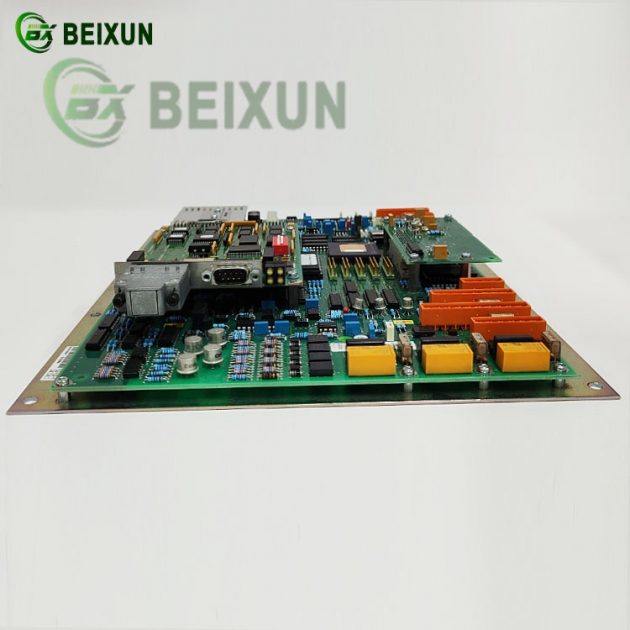

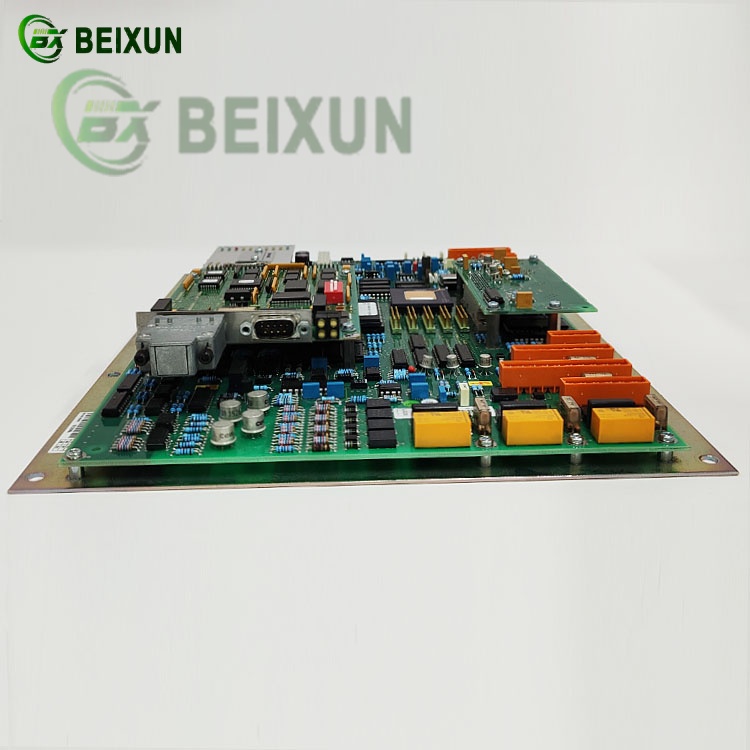

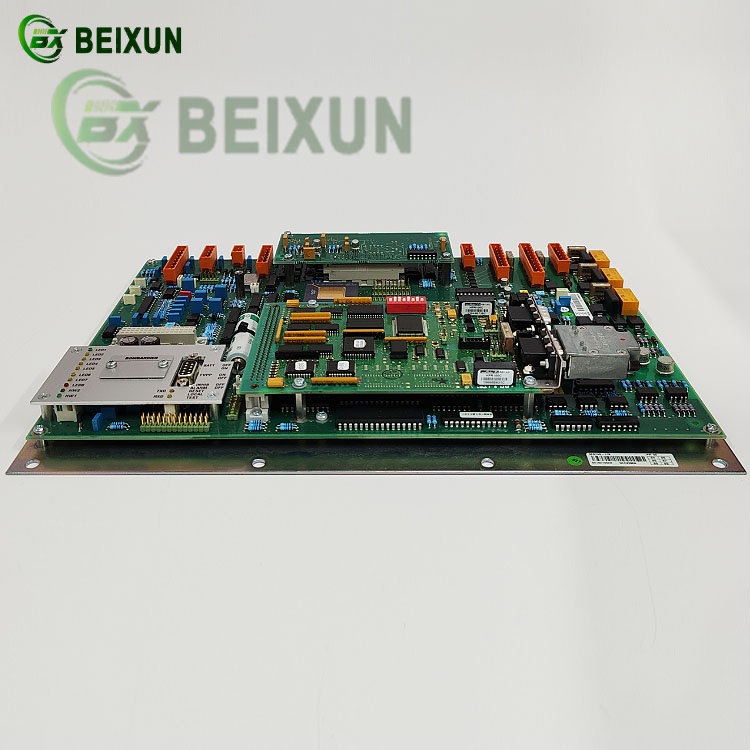

The ABB DTCC901B 3BSC980006R152 61430001-FU Input/Output (I/O) Module is a critical component in industrial automation systems, designed to interface between field devices and control systems.
Below is its technical profile:
1. Core Functions
Signal Conditioning & Conversion:
Processes analog/digital signals (e.g., 4-20mA, 0-10V, or discrete I/O) from sensors/actuators
Provides galvanic isolation (up to 2.5kV) to protect control systems from electrical noise
Fieldbus Integration:
Supports PROFIBUS, DeviceNet, or Ethernet/IP for seamless communication with PLCs/DCS
Enables real-time data exchange for process monitoring and control
Diagnostics & Redundancy:
Features LED indicators for channel status (active/fault)
Supports hot-swapping for maintenance without system shutdown
2. Key Specifications
Input Types: 16-channel digital/8-channel analog (configurable)
Operating Voltage: 24V DC (±10%)
Environmental: IP67-rated for harsh industrial conditions (-40°C to +70°C)
3. Applications
Process control (oil/gas, chemical plants)
Manufacturing automation (robotic cell interfacing)
Power distribution (grid monitoring and protection)
This module ensures high reliability and scalability in complex industrial networks.
