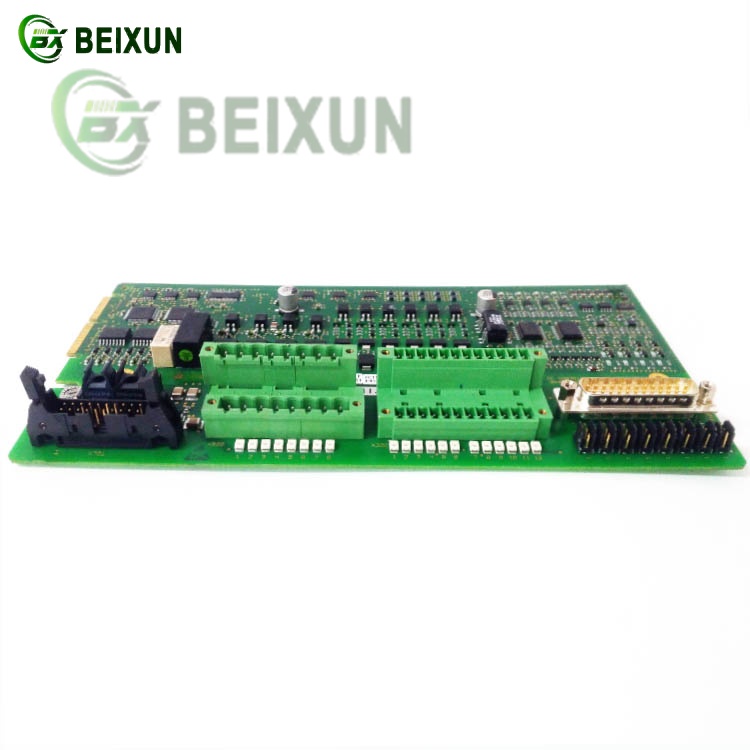

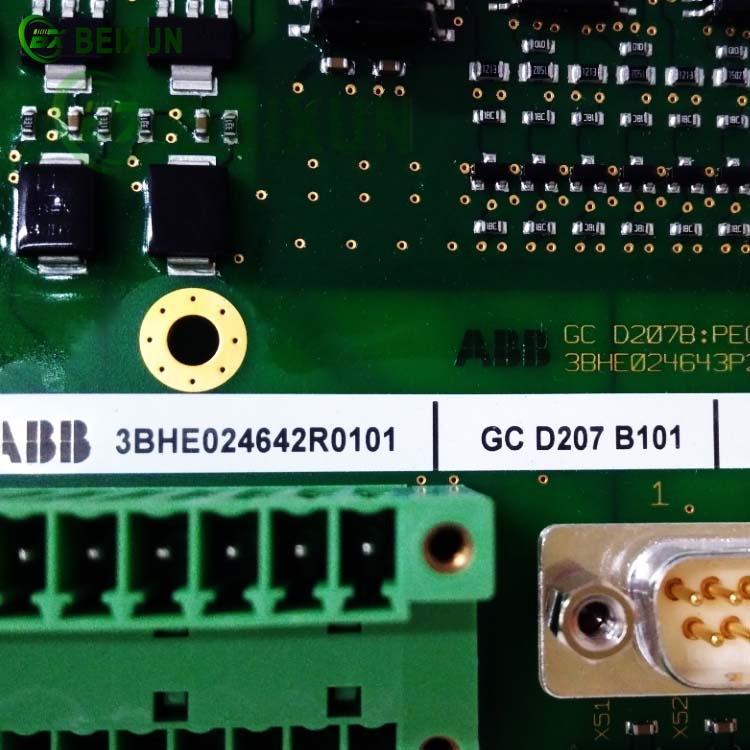

The ABB GCD207B101 3BHE024642R0101 Inverter Module PCB is a high-performance power electronics component designed for industrial motor control applications.
Here’s a detailed technical breakdown:
1. Core Functions
Power Conversion:
Implements IGBT-based 3-phase PWM inversion with switching frequencies up to 16kHz
Provides variable voltage/variable frequency (VVVF) output for precise AC motor control
Features dynamic braking with integrated chopper circuit (optional external resistor)
Protection & Monitoring:
Comprehensive fault detection:
Overcurrent (phase-to-phase/short-circuit)
Overvoltage/undervoltage (DC bus monitoring)
Overtemperature (IGBT junction temp sensing)
Real-time diagnostics via optical isolation status signals
Control Interface:
Accepts fiber-optic isolated gate signals from control unit
Supports analog/digital feedback (current, voltage, temperature)
Compatible with ABB’s DCS 800/ACS 800 drive architecture
2. Technical Specifications
Voltage Rating: 380-690V AC (3-phase)
Current Capacity: 207A continuous (with 40°C ambient)
Switching Devices: HiPak IGBT modules (press-pack technology)
Cooling Method: Liquid or forced air cooling (thermal resistance <0.04K/W)
Certifications: UL, CE, IEC 61800-5-1 (functional safety)
3. Key Features
Low-inductance busbar design for reduced voltage spikes
Active front-end option for regenerative operation
4. Typical Applications
Industrial fans/pumps (energy-saving applications)
Crane & hoist systems (torque-controlled operation)
Marine propulsion drives
Mining conveyor systems
