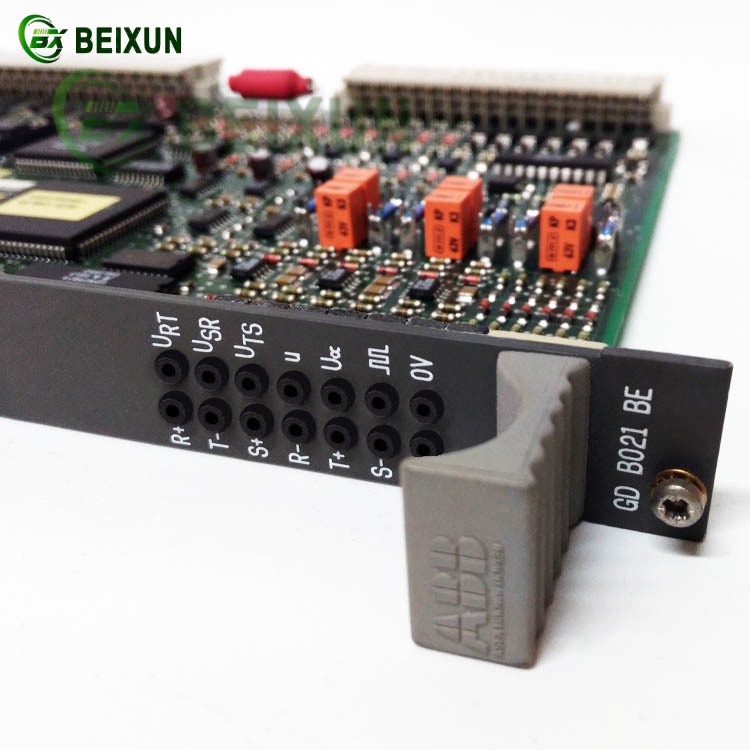

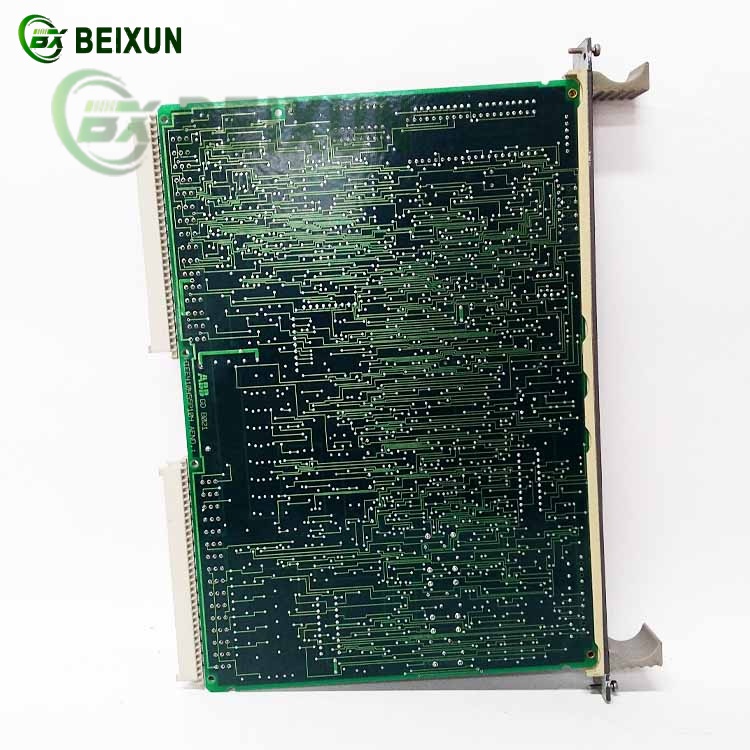

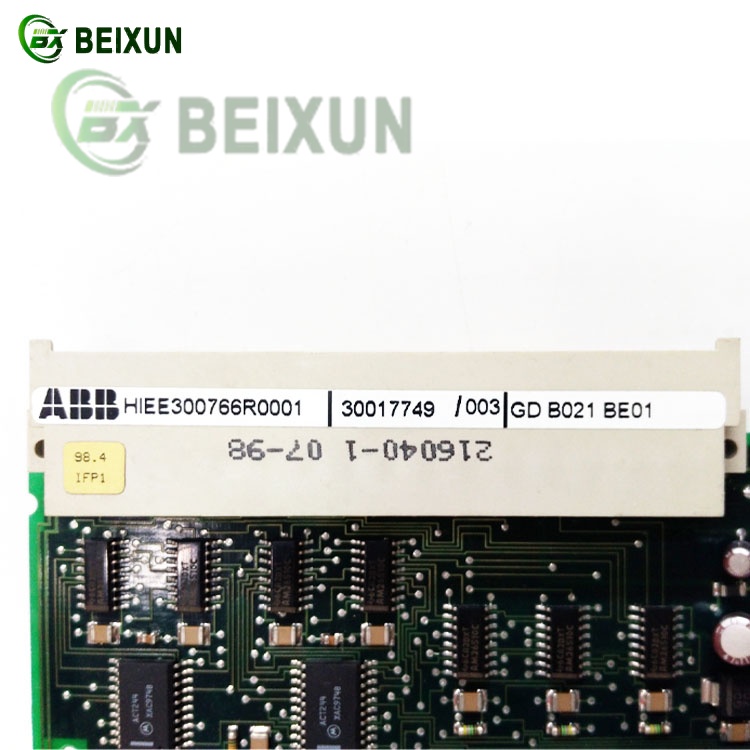

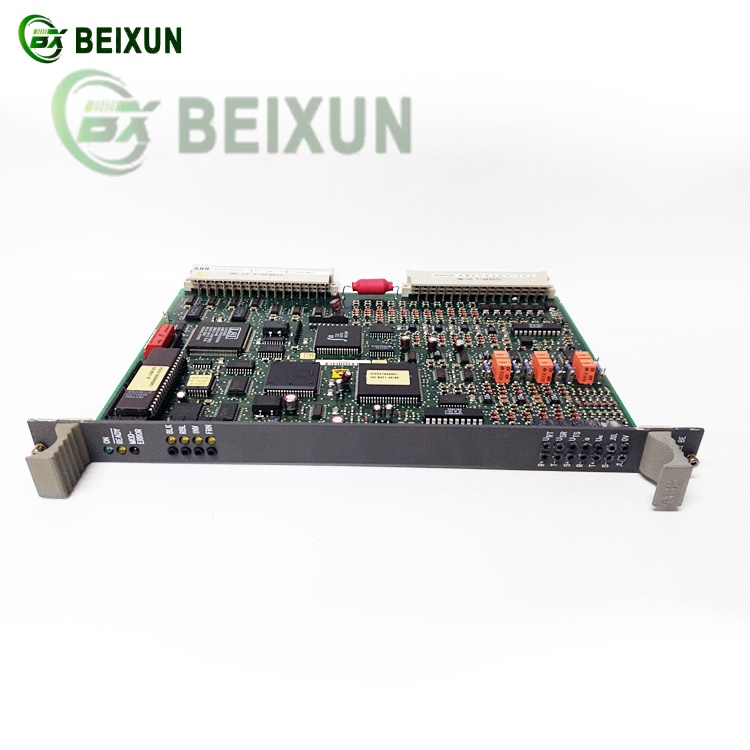

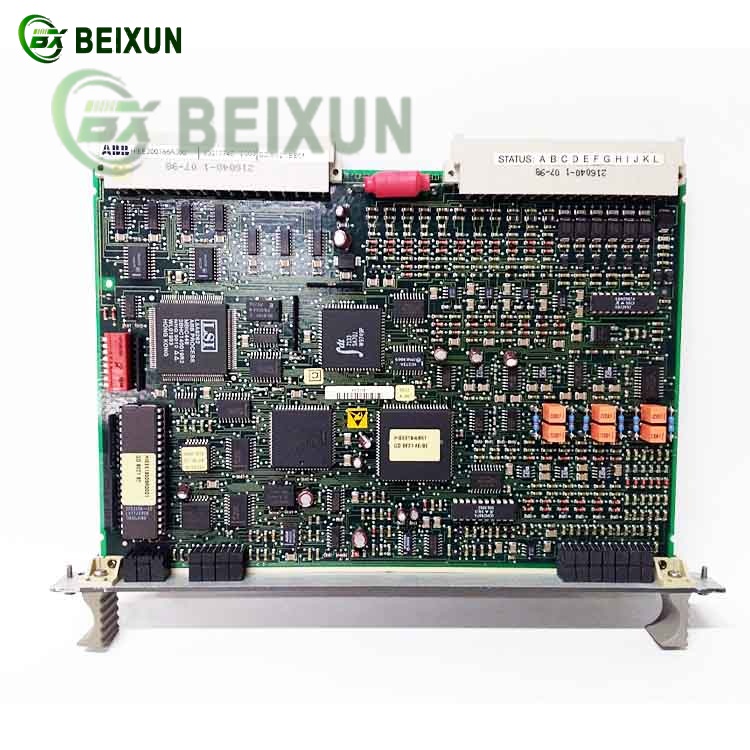

The ABB GDB021BE/GDB021BE01 HIEE300766R0001 Gate Control Unit serves as a high-performance interface module for industrial automation and power system applications, primarily focusing on gate control, synchronization, and signal processing.
Its key functions include:
1. Gate Control & Safety Management:
Ensures secure operation of gates or barriers in industrial environments, integrating with ABB’s HIEE3000 series for access control and safety protocols.
Supports synchronization control of generators with power grids by matching voltage, frequency, and phase parameters, enabling safe power transmission and grid connection.
2. Automated Synchronization & Protection:
Monitors grid conditions and automatically executes synchronization when parameters align, reducing manual intervention.
Includes synchronization protection features to prevent damage to generators or power systems from faults.
3. Signal Processing & PLC Integration:
Acts as an I/O module, converting digital signals (8 inputs/outputs) for PLC systems, enhancing control flexibility and response speed.
Utilizes hardware-based control logic (via digital pathways) for real-time signal handling, ensuring reliability in harsh industrial conditions.
4. Industrial & Power System Applications:
Widely used in automation control systems (e.g., factory gates, generator synchronization) and power distribution (e.g., grid integration).
Compatible with ABB’s AC 900F controllers, offering modular design for scalability.
5. Technical Highlights:
Protocol Translation: Supports ModbusTCP, Profinet, and other industrial protocols.
Robust Design: Meets IP/EMC standards for industrial environments.
