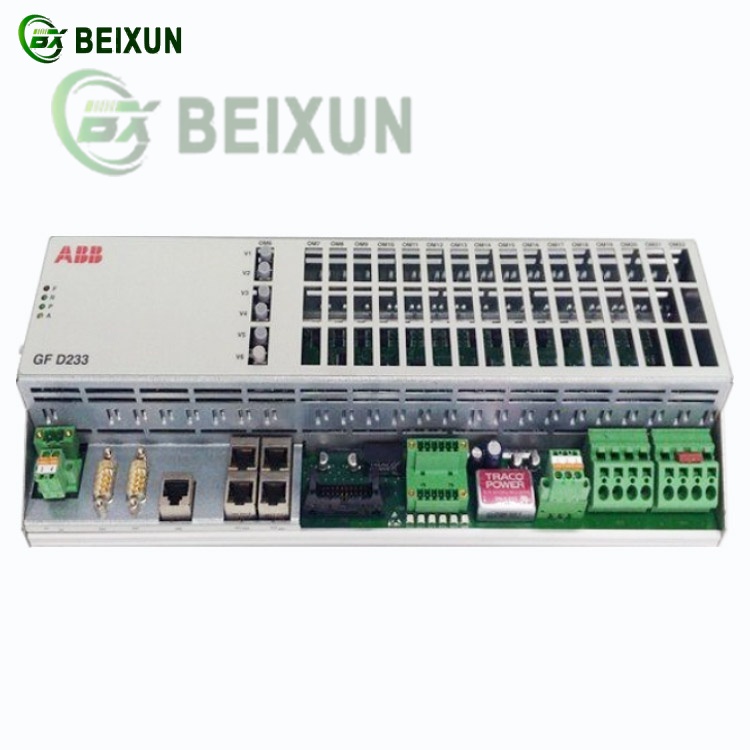

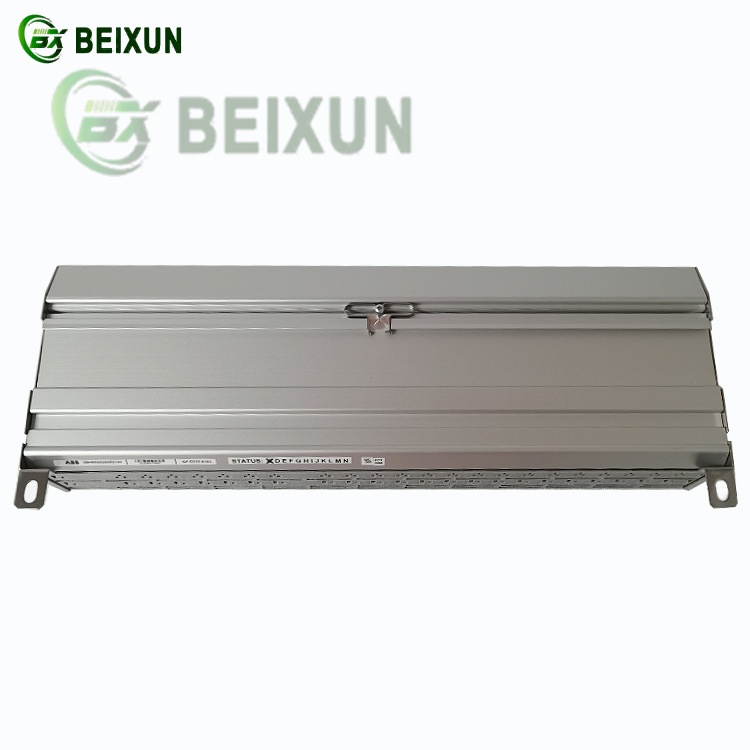

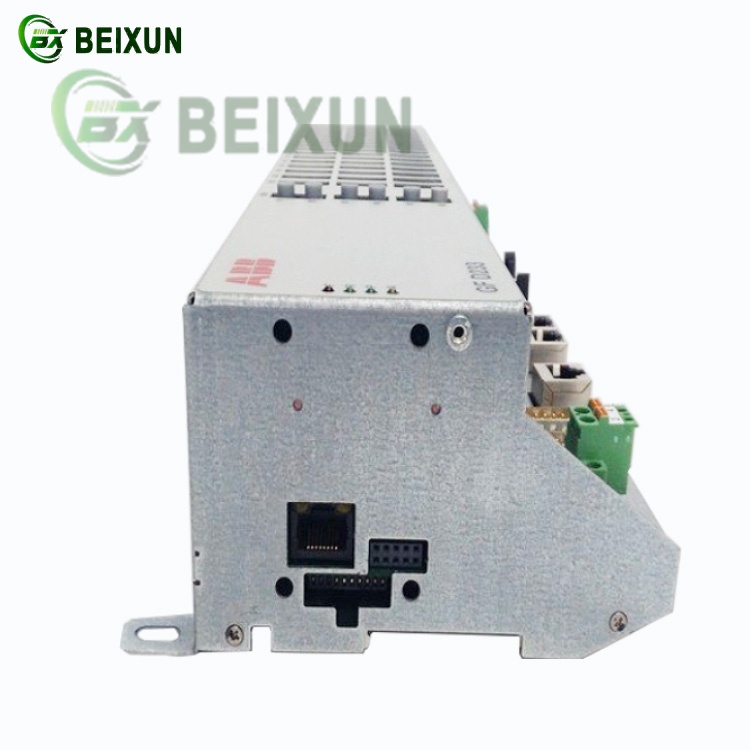

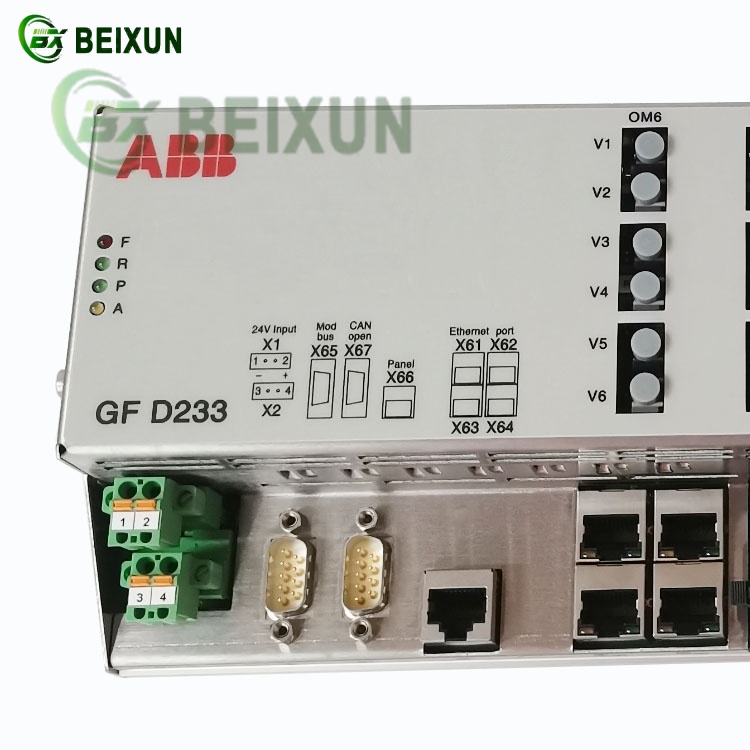

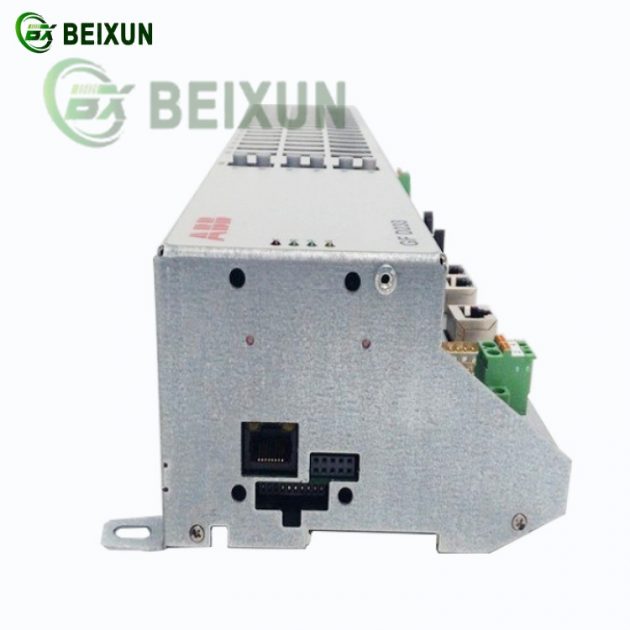

The ABB GFD233A 3BHE020356R0101 / 3BHE020357P201 Excitation Control Module is a specialized industrial control component designed for precise regulation of generator excitation systems in power generation and grid stability applications.
Here’s its detailed functionality and features:
1. Core Functions
Excitation Regulation:
Controls generator field current and terminal voltage to maintain stable power output under varying load conditions.
Dynamic Response:
Implements advanced control algorithms (e.g., PID) to ensure rapid adjustment during grid disturbances (e.g., faults or load changes).
Multi-Mode Operation:
Supports voltage control, power factor control, and reactive power compensation modes for flexible grid integration.
Protection Mechanisms:
Detects and mitigates faults (e.g., overcurrent, loss of field) to safeguard generator and grid equipment.
2. Key Features
High Reliability:
Industrial-grade design with a wide operating temperature range (-40°C to +70°C) and EMI resistance.
Communication Interfaces:
Integrates with Modbus, Profibus, and IEC 61850 for seamless DCS/SCADA connectivity.
User-Friendly Configuration:
Offers intuitive HMI and software tools (e.g., ABB’s Control Builder M) for parameter tuning and diagnostics.
Modular Redundancy:
Supports hot-swappable redundancy for critical applications (e.g., power plants).
3. Typical Applications
Power Plants:
Synchronous generator excitation in thermal, hydro, and nuclear facilities.
Renewable Energy:
Wind turbine and hydroelectric generator control.
Grid Stability:
Voltage and reactive power management in substations.
