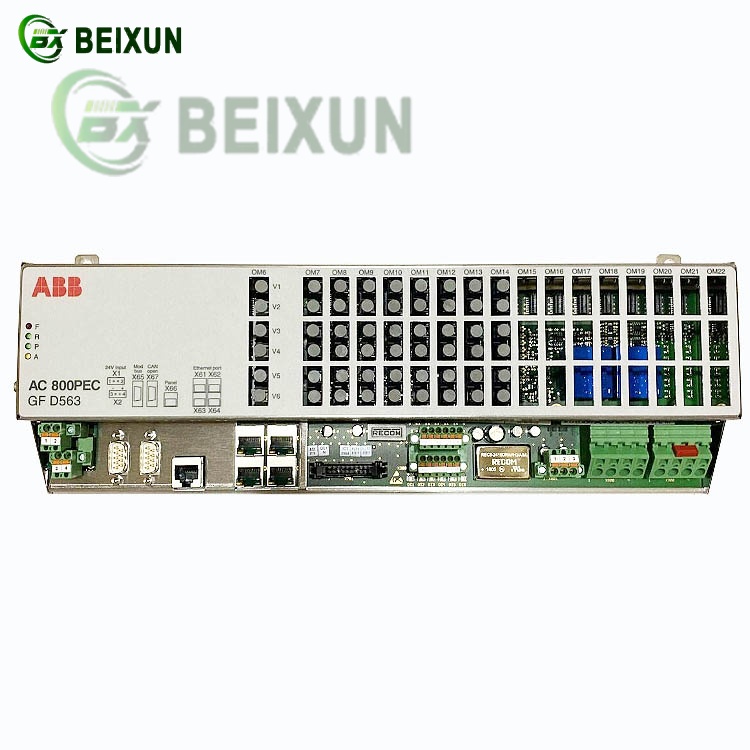

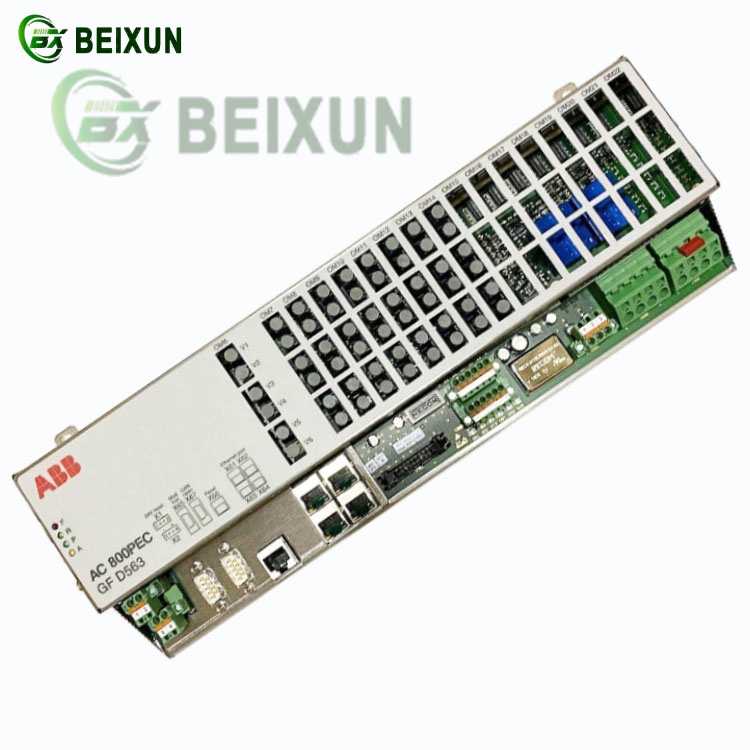

The ABB GFD563A102 3BHE046836R0102 AC800PEC Excitation Control Module is a high-performance industrial controller designed for advanced excitation management in power generation systems.
Here are its key functions and features:
1. Primary Functions
Excitation Regulation:
Controls generator field current and terminal voltage to maintain grid stability under dynamic load conditions.
Supports voltage, power factor, and reactive power control modes for flexible grid integration.
Ultra-Fast Response:
Executes control algorithms with cycle times as short as 100 μs for real-time adjustments during grid faults or transients.
Protection Mechanisms:
Detects and mitigates faults (e.g., overvoltage, loss of field) to safeguard generators and connected equipment.
2. Key Features
Dual-Core CPU + FPGA Architecture:
Combines high-speed processing (25 ns for FPGA tasks) with programmable logic for complex control tasks.
Industrial Communication Protocols:
Integrates with IEC 61850, Modbus, and ABB’s 800xA DCS via optical PowerLinks or Ethernet.
Redundancy & Reliability:
Hot-swappable modules ensure continuous operation in critical applications (e.g., power plants, HVDC).
Programming Flexibility:
Compatible with Control Builder M (IEC 61131-3) and MATLAB/Simulink for model-based design.
3. Typical Applications
Power Generation:
Synchronous generator excitation in thermal, hydro, and nuclear plants.
Grid Stability:
Enhances dynamic voltage regulation and transient stability.
Industrial Systems:
Controls high-power rectifiers in metallurgy and mining.
