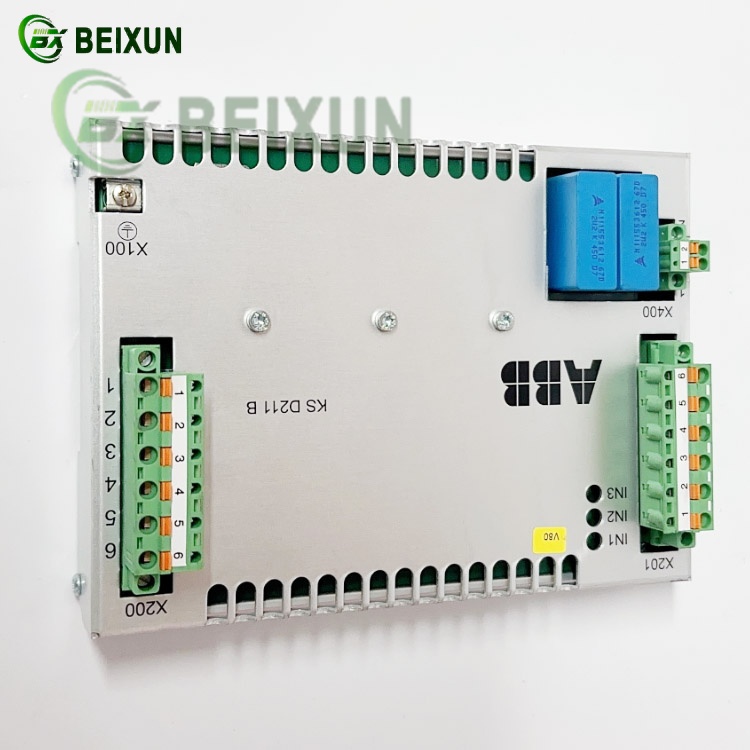

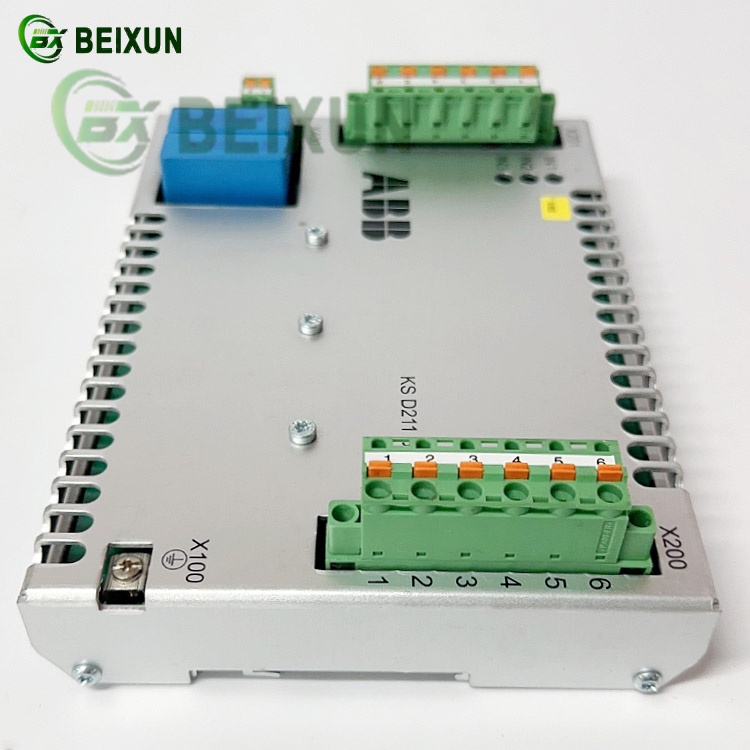

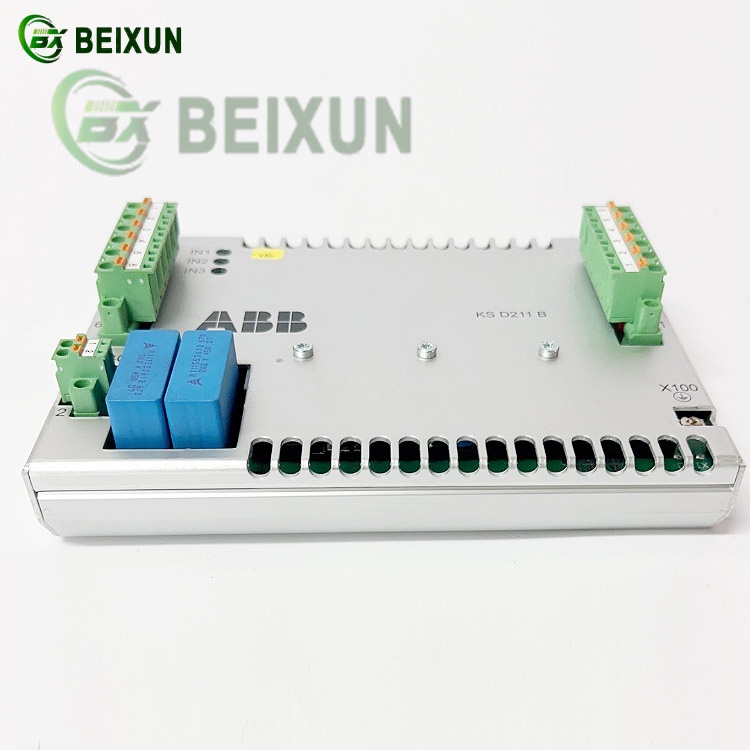

The ABB KSD211B101 3BHE022455R1101 Input Coupling Unit is a critical interface module designed for industrial automation and control systems, particularly in ABB’s AC 800M controller family.
Below is a detailed explanation of its functions and features:
1. Primary Functions
Signal Conditioning & Isolation:
Acts as an interface between field sensors (e.g., 4–20 mA, RTDs, thermocouples) and the control system.
Provides galvanic isolation to protect sensitive electronics from ground loops, surges, and EMI.
Signal Conversion:
Converts analog input signals (current/voltage) to digital values for processing by the AC 800M controller.
Supports configurable scaling and filtering for accurate measurements.
Redundancy & Diagnostics:
Enables redundant input configurations for critical applications (e.g., power plants, oil & gas).
Includes self-diagnostic features (e.g., wire break detection, out-of-range alerts).
2. Key Features
Modular Design: Hot-swappable for maintenance without system shutdown.
Wide Compatibility: Integrates with ABB’s S800 I/O series and 800xA DCS.
High Accuracy: Typical error margin < ±0.1% of full scale.
Industrial Protocols: Supports Profibus DP, Modbus, and ABB’s Advant Fieldbus 100.
3. Typical Applications
Process Automation: Monitoring pressure, temperature, and flow in chemical/petrochemical plants.
Power Generation: Interface for turbine control systems (e.g., excitation, governor).
HVAC & Utilities: Signal conditioning for building management systems.
4. Technical Specifications
Input Channels: 8 or 16 (configurable).
Isolation Voltage: 1.5 kV AC/DC.
Operating Temperature: -25°C to +70°C.
