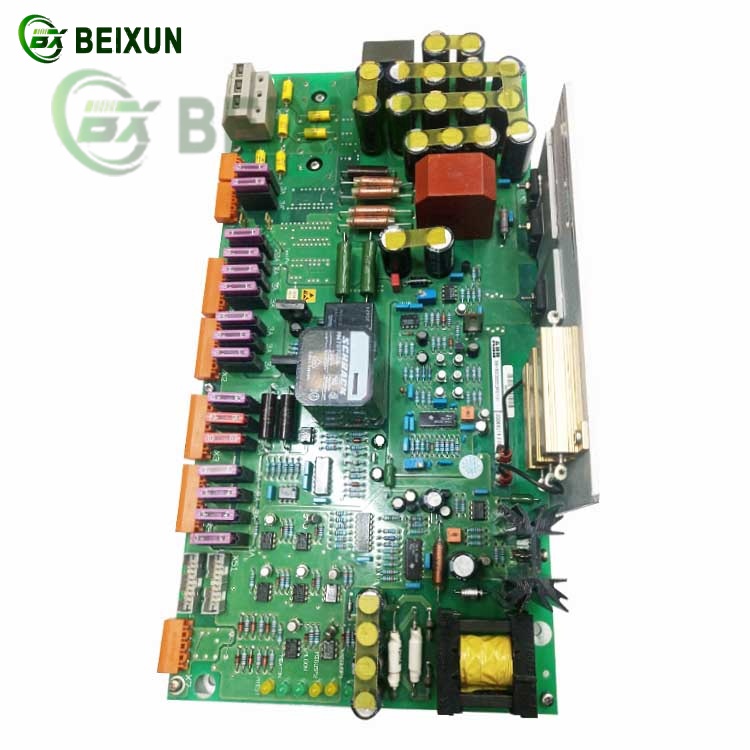

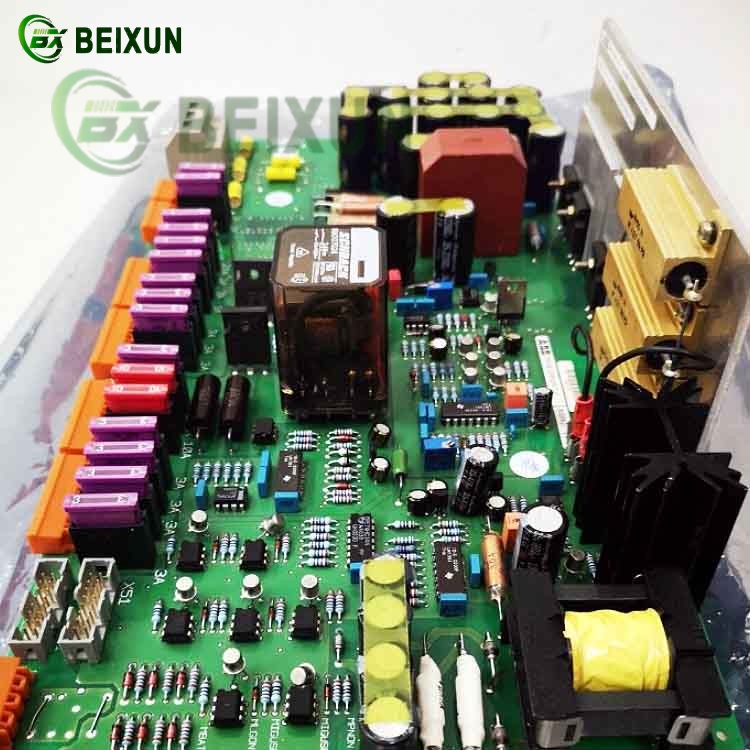

ABB KUC720AE01 3BHB003431R0001 Control Board – Functional Overview
The ABB KUC720AE01 (3BHB003431R0001) is a high-performance control board designed for industrial automation and power electronics applications.
Its primary functions include:
Real-Time Control & Processing:
Equipped with a high-speed processor for executing advanced control algorithms in industrial systems.
Supports precise regulation of motor drives, inverters, and power converters.
Communication & Integration:
Features multiple interfaces (Modbus, Profibus, Ethernet) for seamless integration with PLCs, SCADA, and other industrial devices.
Enables data exchange and remote monitoring in automated systems.
Modular & Scalable Design:
Allows flexible configuration for diverse industrial applications (e.g., manufacturing, energy management).
Supports hot-swappable modules for minimal downtime during maintenance.
Robust Performance:
Built for harsh environments with high EMI resistance and wide operating temperature ranges (-40°C to +70°C).
Includes self-diagnostic functions for fault detection and system protection.
1. Key Applications
Motor Drives & Inverters: Controls frequency and voltage output in AC/DC converters.
Industrial Automation: Used in PLC-based systems for process control.
Energy Systems: Integrates with power grids and renewable energy infrastructure.
2. Technical Specifications
Input Voltage: 24V DC (typical).
Communication Protocols: Modbus RTU/TCP, Profibus-DP, IEC 61850.
