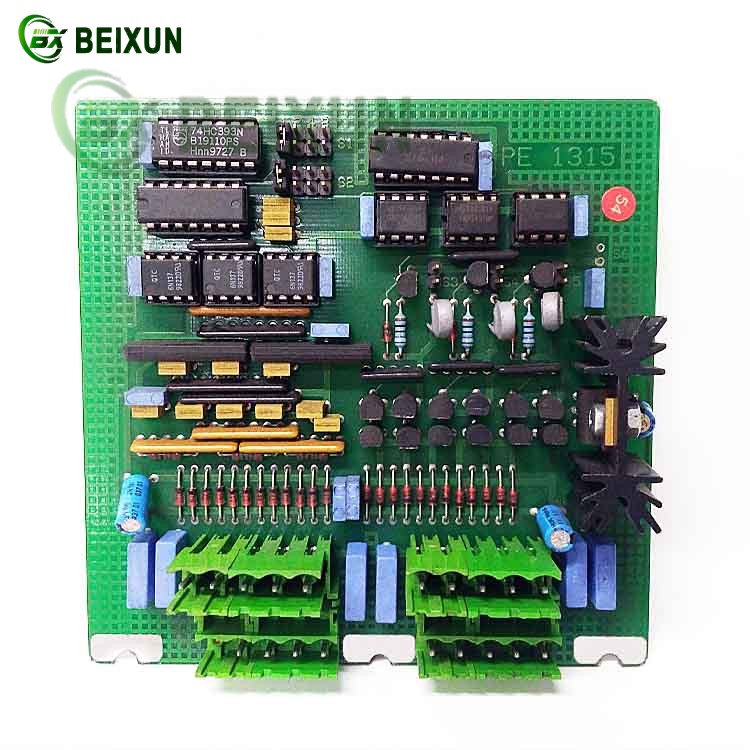

The ABB PE1315A Opto Isolated Pulse Amplifier is a specialized industrial signal conditioning device designed for robust pulse signal processing in automation systems.
Here’s a detailed technical breakdown:
1. Core Functions
Signal Isolation: Utilizes opto-isolation technology to electrically separate input/output circuits, preventing ground loops and noise interference.
Pulse Amplification: Boosts weak pulse signals (e.g., from encoders or sensors) to standardized levels (5–24VDC) for reliable transmission.
Multi-Channel Distribution: Splits one input pulse into three isolated outputs (Channels A, B, and strobe) for parallel device connectivity.
2. Key Features
High Noise Immunity: Photocouplers ensure stable performance in electromagnetically harsh environments (e.g., steel plants).
Configurable Current Limit: Optional 13mA output current protection to safeguard downstream equipment.
DIN-Rail Mounting: Compact design for space-efficient panel integration.
3. Applications
Motion Control: Drives servo/stepper motors by amplifying encoder feedback pulses.
Process Automation: Interfaces with flow meters, valve controllers, and safety interlocks in oil/gas/power industries.
Radar/Laser Systems: Enhances pulse signal integrity in high-frequency detection equipment.
4. Technical Specifications
Input Voltage: 5–24VDC
Operating Temp: Industrial range (unstated, typical -20°C to +60°C)
