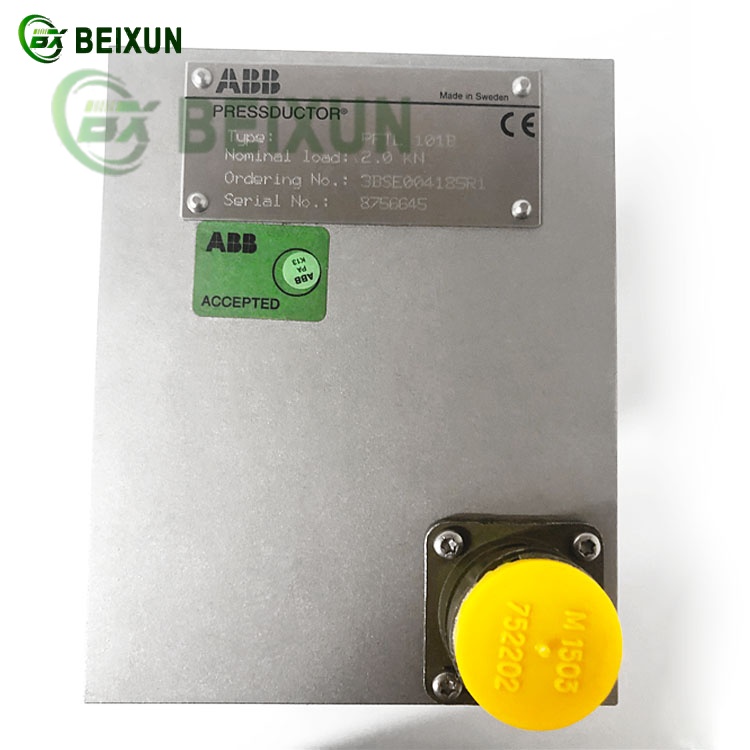

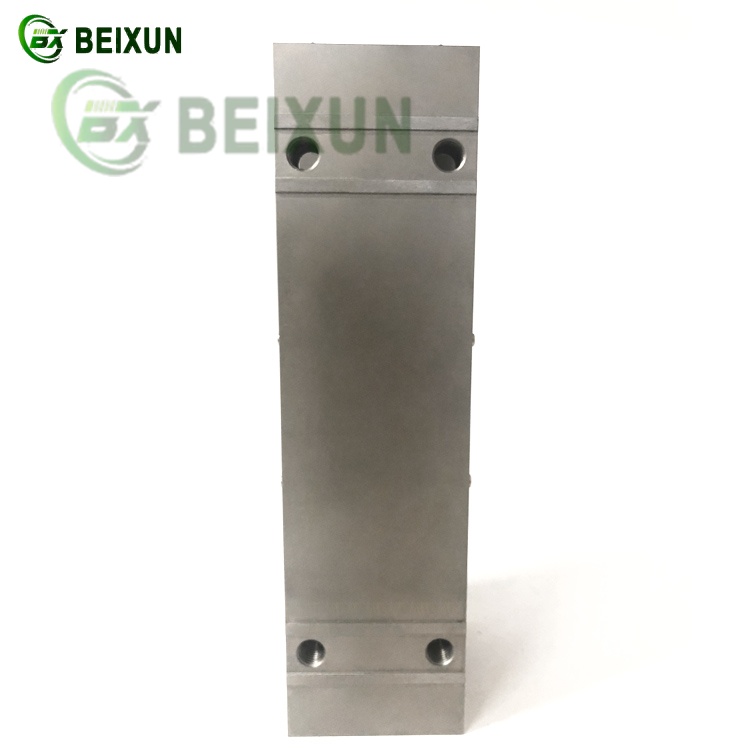

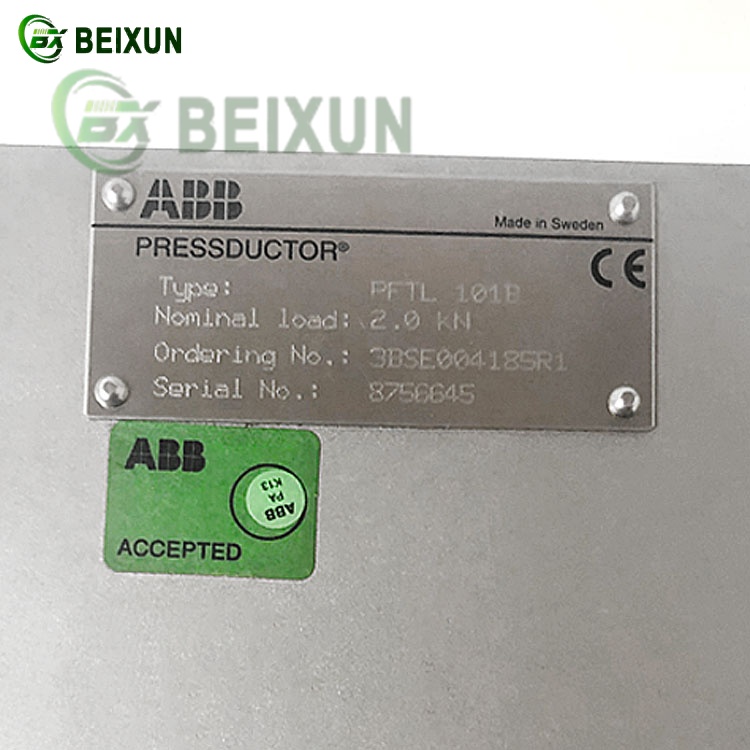

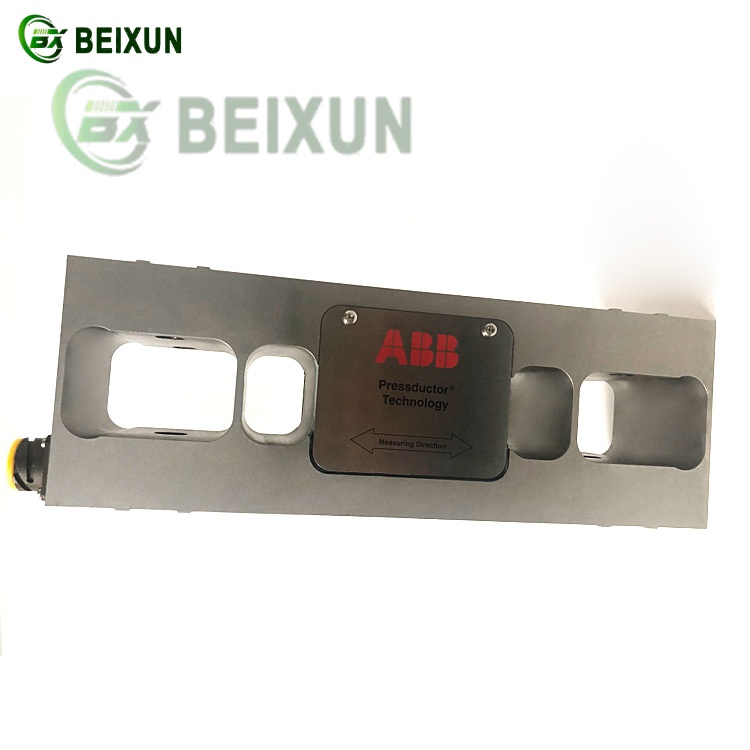

The ABB PFTL-101B 3BSE004185R1 2.0KN Load Cell is a high-precision tension/force measurement device designed for industrial applications,
with the following key functions and features:
1. Core Functionality
Measures tensile/compressive forces up to 2.0 kilonewtons (KN) with high accuracy.
Converts mechanical force into electrical signals via magnetostrictive (Piezomagnetic dynamometry) technology, where applied force alters magnetic permeability to generate proportional voltage output.
2. Technical Specifications
Material: Stainless steel construction for durability in harsh environments (e.g., metallurgy, paper mills).
Communication: Supports Profibus and analog signals for integration with control systems.
Installation: Requires high-strength bolts (8.8 grade) with torque settings of 20–30 Nm and parallel alignment (<0.05mm tolerance).
3. Applications
Industrial Tension Control: Critical in steel/paper production to prevent strip breakage or thickness deviations.
Automation Systems: Used in material handling, packaging, and robotic arms for force feedback.
Calibration: Requires biannual zero/linearity checks to maintain precision.
4. Advantages
High Stability: Immune to temperature fluctuations and electromagnetic interference.
Modular Design: Compatible with ABB’s Freelance DCS and other PLC systems.
