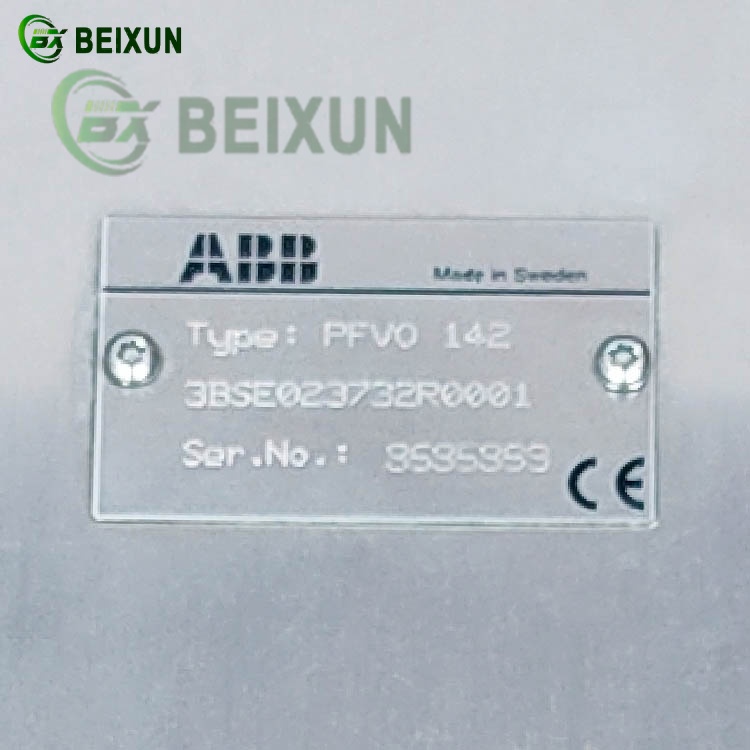

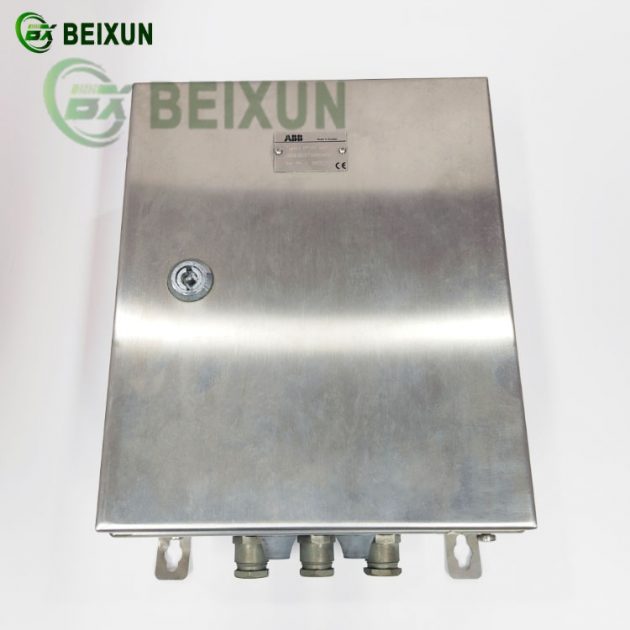

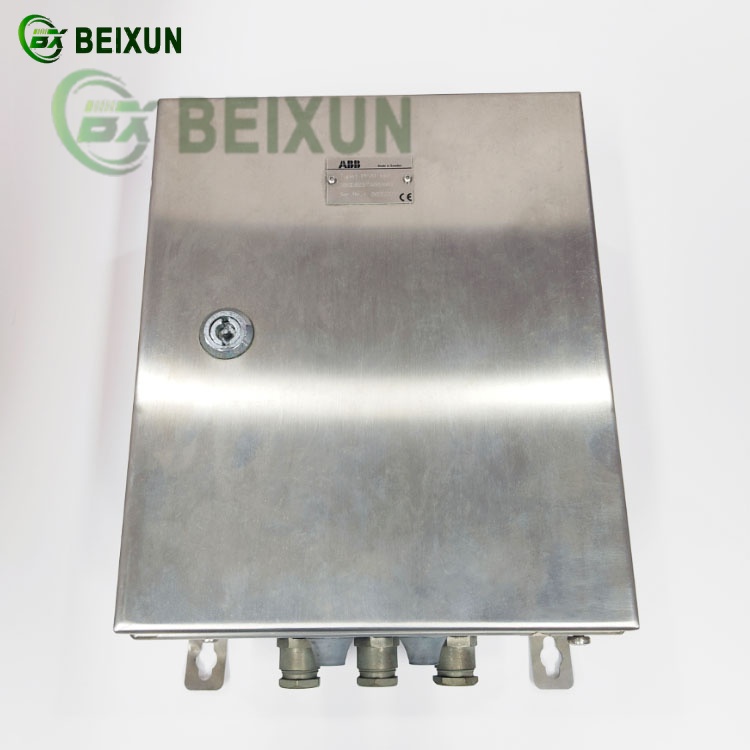

ABB PFVO142 3BSE223732R0001 / 3BSE023732R1 Matching Unit Module – Key Functions
1. Voltage & Frequency Matching
Acts as an interface module for ABB drives, ensuring compatibility between different voltage levels (single-phase 220V, three-phase 220V/400V/690V) and motor types (asynchronous/synchronous/PM motors)
Operates at 1638 Hz frequency for precise signal synchronization in drive systems
2. Enhanced Drive Control
Supports multiple control modes:
Sensorless vector control (SVC) for improved low-speed stability
V/F control with torque/speed/position servo capabilities
Enables real-time parameter tuning via ABB’s backend software (e.g., oscilloscope monitoring)
3. Industrial Connectivity
Integrates with fieldbus protocols (Modbus-RTU, Profibus-DP, CANopen, EtherCAT) for PLC/DCS communication
Compatible with diverse encoders (ABZ, UVW, SSI, EnDat, Hiperface)
4. Applications
Motor-driven systems: Optimizes performance in pumps, fans, and conveyors
Process automation: Ensures stable torque control in chemical/oil industries
