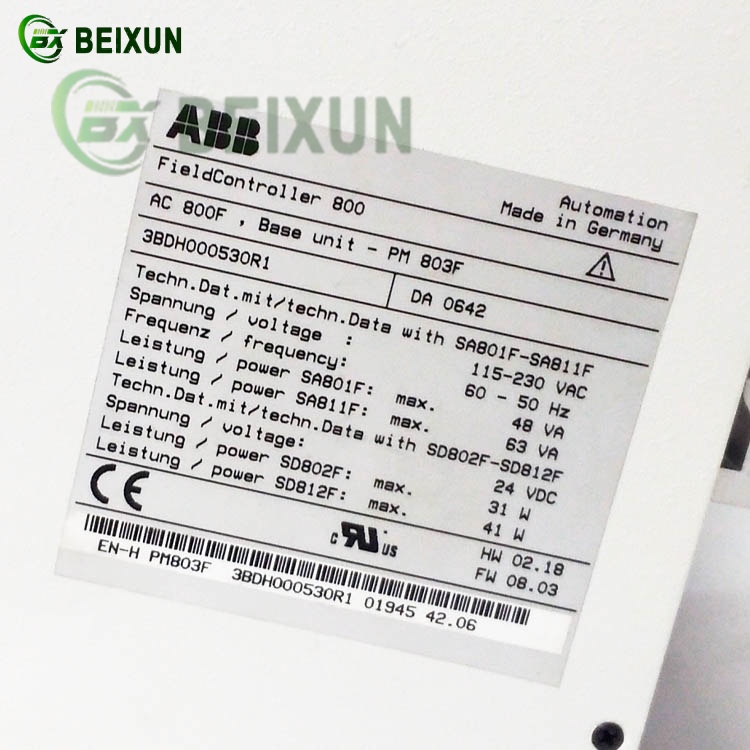

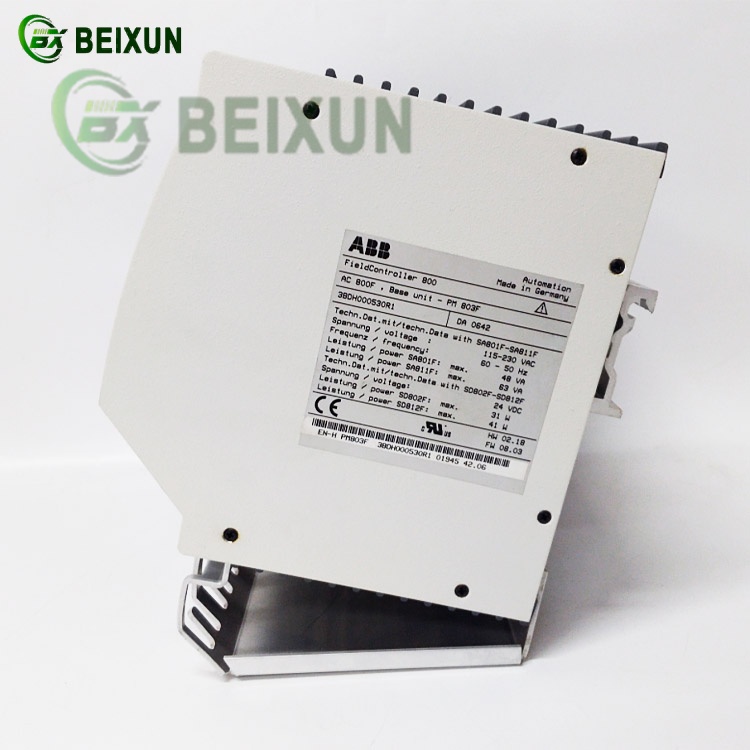

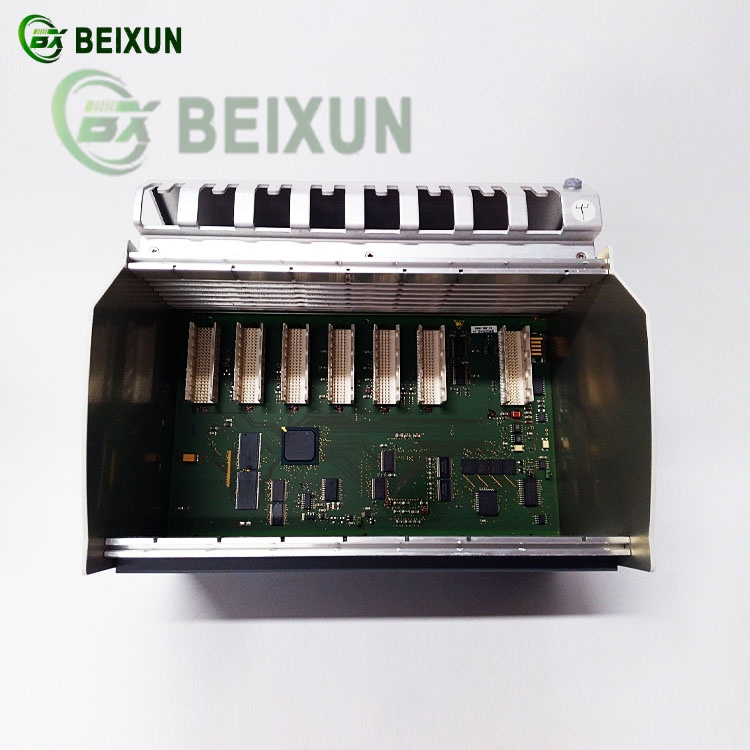

The ABB PM803F 3BDH000530R1 Base Unit serves as the core processing module in ABB’s AC 800F Freelance distributed control system (DCS),
designed for industrial automation with the following key functions:
1. Centralized Control
Acts as the primary CPU unit, executing control logic and managing communication with I/O modules (e.g., SM811 for safety functions).
2. High-Performance Processing
Supports 16MB SDRAM for large-scale program execution.
3. Modular & Expandable Design
Features hot-swappable capability for modules like SM811, though synchronization is required.
4. Multi-Protocol Communication
Interfaces with PROFIBUS-DPV1, Modbus, CAN, and other fieldbus systems for seamless integration.
5. Industrial Reliability
Operates in -20°C to 50°C environments with IP65-rated protection.
Includes battery-backed memory for quick recovery after power failures.
6. Application Scope
Widely used in power distribution, manufacturing, and process industries (e.g., oil/gas, metallurgy).
