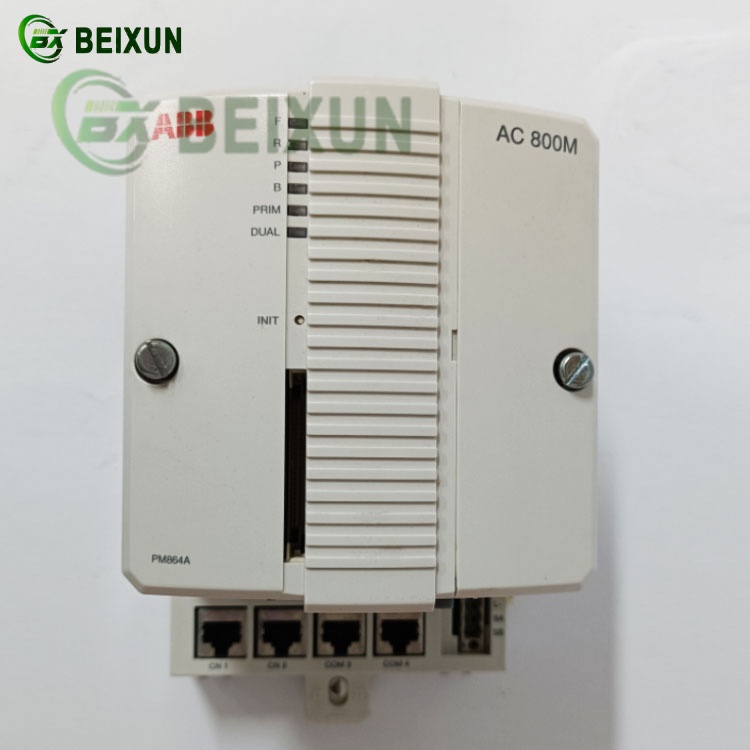

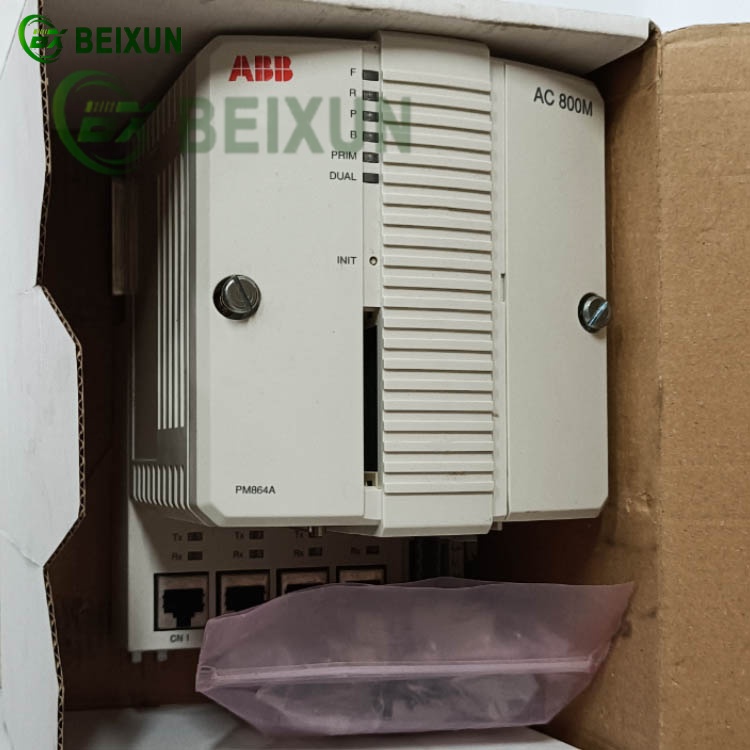

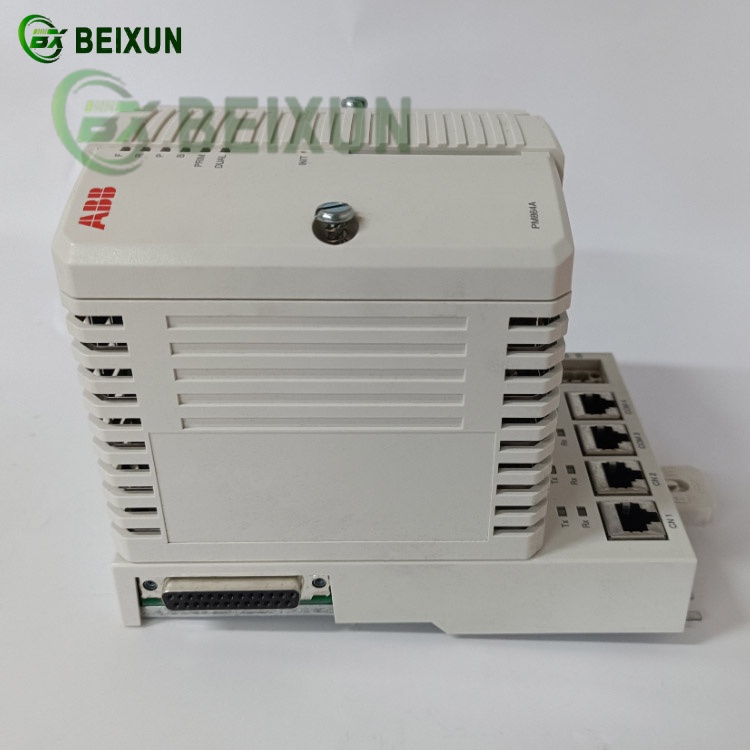

ABB PM864AK01 3BSE018161R1 Processor Unit Module – Key Functions
1. Core Processing & Control
Serves as the central processing unit for ABB’s AC 800M series, executing complex control algorithms in real-time for industrial automation systems
Features a dual-core ARM Cortex-R4 CPU for high-speed data processing and reliable real-time control performance
2. Industrial Communication & Integration
Supports multiple fieldbus protocols:
PROFIBUS DP, PROFINET IO, Modbus TCP, EtherNet/IP for seamless device integration

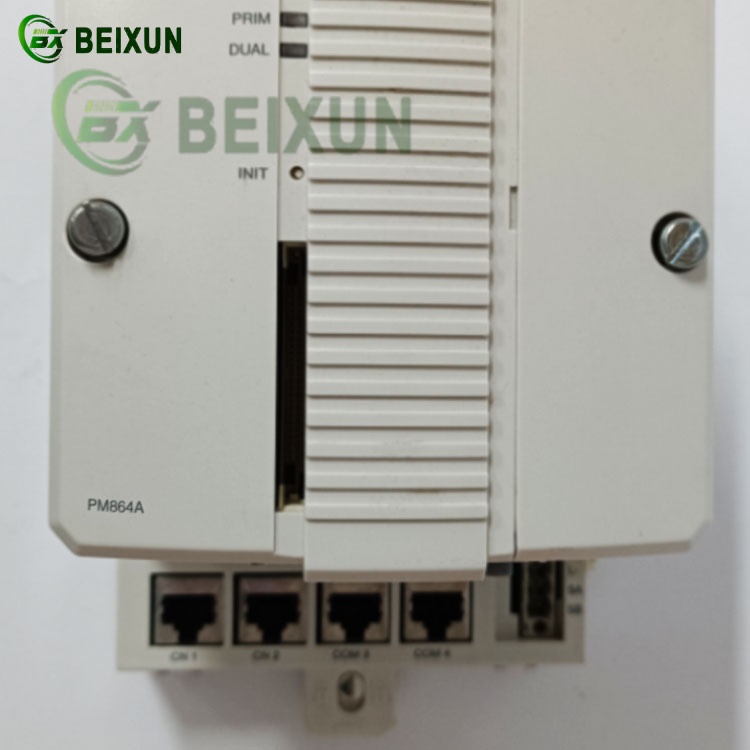

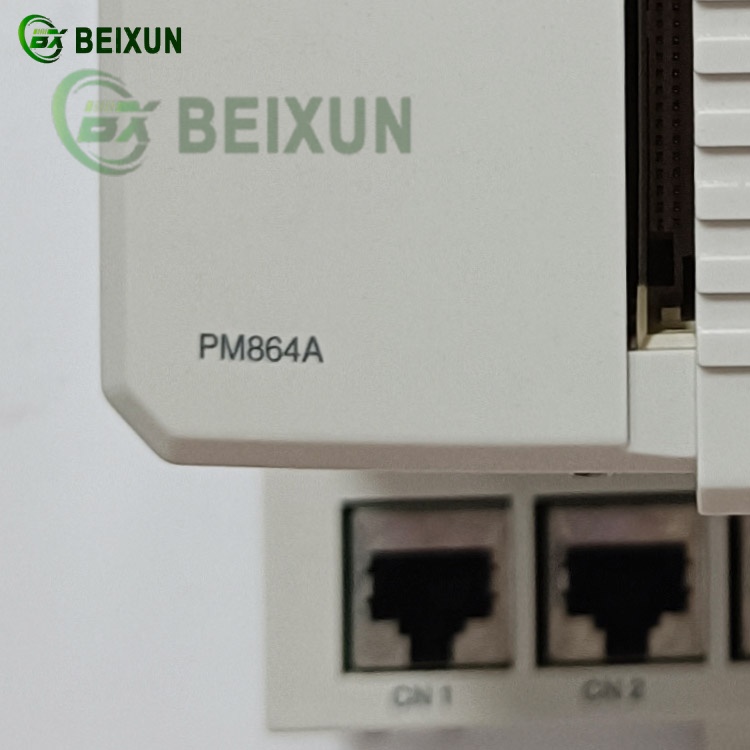

Dual RJ45 Ethernet ports (CN1/CN2) and serial ports (COM3/COM4) for flexible network configurations
3. Redundancy & Reliability
Built-in redundancy functionality to prevent single-point failures, ensuring continuous operation in critical applications
Self-diagnostic capabilities for fault detection (e.g., memory/CPU self-checks, power/communication monitoring)
4. Storage & Programmability
32MB Flash memory for storing control programs, parameters, and historical data with online upgrade support
Programmable via multiple languages (Ladder Logic, Function Block Diagram, Structured Text)
5. Applications
Process industries: Power plants (excitation control), oil/gas refineries
Manufacturing: Robotics, CNC machines, packaging lines
