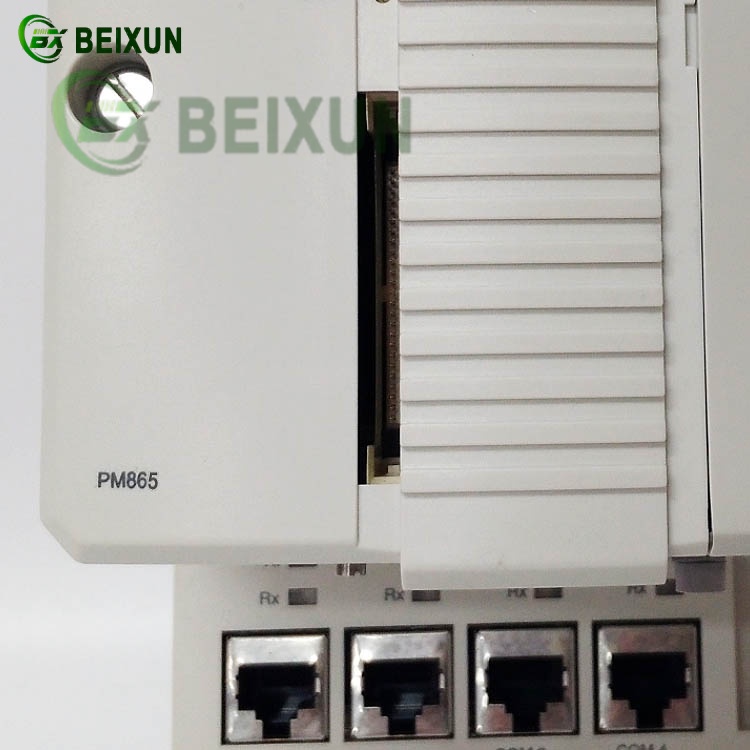

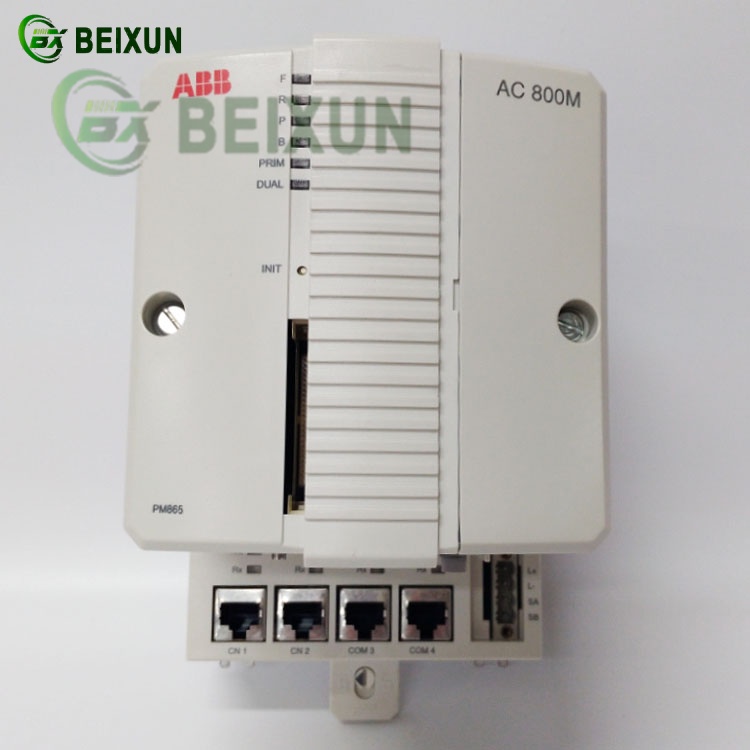

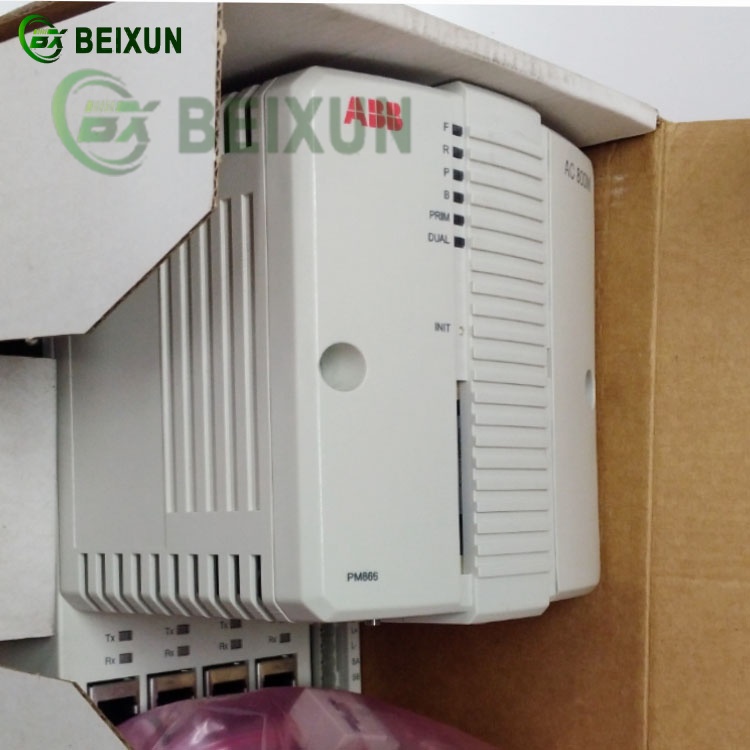

ABB PM865K01 3BSE031151R1 Processor Unit (AC800M) – Key Functions
1. High-Performance Industrial Control
Acts as the central processing unit for ABB’s AC 800M series, executing complex control algorithms with a multi-core industrial-grade CPU for real-time automation tasks
Supports ≤1ms cycle times for critical process control applications (e.g., PID loops, motion control)
2. Modular & Scalable Design
Rail-mounted modular architecture integrates CPU, communication, and power modules, enabling flexible I/O expansion (up to 12 fieldbus modules)
Compatible with S800 I/O clusters and redundant configurations (e.g., paired with PM865K02 for hot standby)
3. Advanced Communication Capabilities
Dual 10/100Mbps Ethernet ports (CN1/CN2) with switch functionality for daisy-chaining devices
Supports PROFIBUS DP, Modbus TCP, PROFINET, and EtherNet/IP for seamless integration with PLCs/SCADA systems
4. Redundancy & Reliability
Hot-swappable CPU redundancy and CEX-Bus redundancy for fault-tolerant operation in critical industries (e.g., power plants, oil refineries)
Built-in diagnostics (LED indicators, event logging) for predictive maintenance
5. Programming & Compliance
Programmable via Control Builder M software (supports FBD, ST, Ladder Logic)
Certified for SIL2/SIL3 safety applications when paired with approved I/O modules
6. Industrial Applications
Process industries: Turbine control, chemical batch processing
Discrete manufacturing: Robotics, CNC systems
