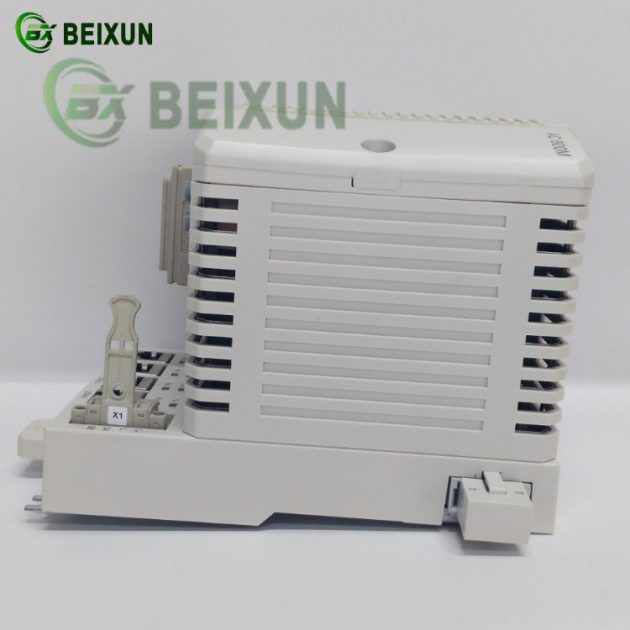

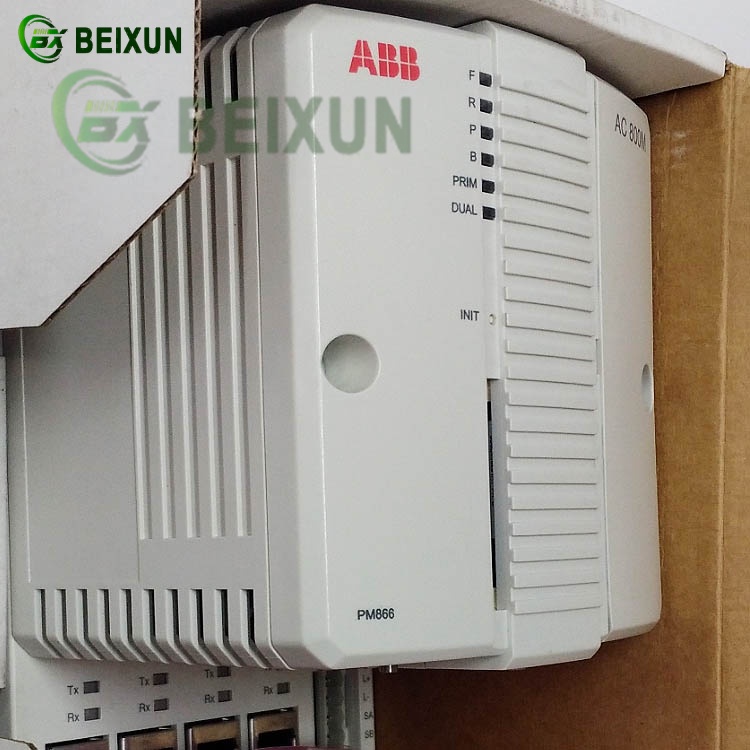

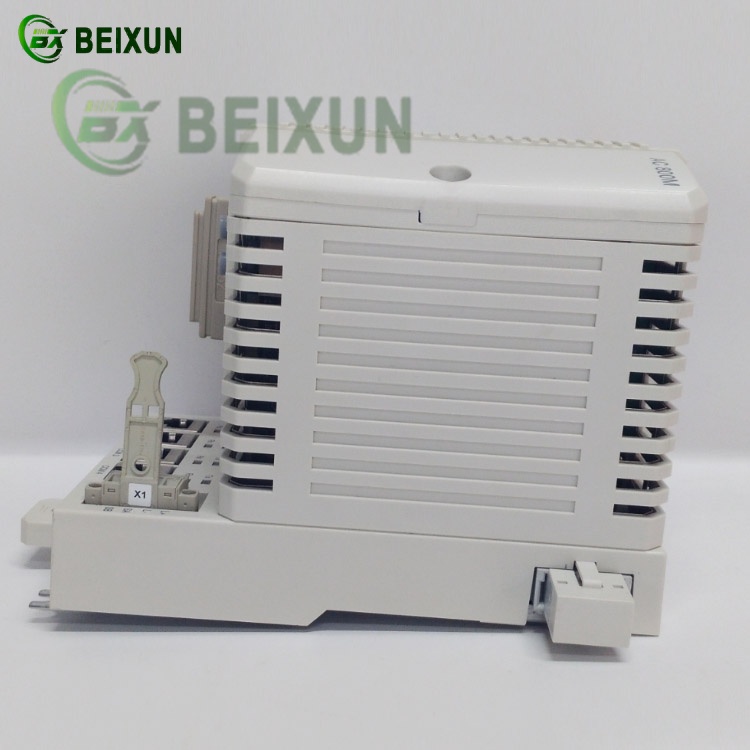

ABB PM866AK01 3BSE076939R1 Processor Unit Module – Key Functions
1. Core Processing & Control
Serves as the central processing unit for ABB’s AC 800M series, executing real-time control algorithms with a PowerPC-based processor (400 MHz clock speed)
Supports ≤1ms cycle times for critical industrial automation tasks (e.g., PID loops, sequential control)
2. Modular I/O & Communication
Features dual RJ45 Ethernet ports (CN1/CN2) for control network connectivity and two serial ports (COM3/COM4) for configuration tools
Compatible with S800 I/O modules via ModuleBus (supports up to 8 local I/O stations in non-redundant mode)
3. Redundancy & Reliability
Enables CPU redundancy (paired with PM866AK02) for fault-tolerant systems, including synchronized CEX-Bus and communication interfaces
Includes LED status indicators and self-diagnostic functions for real-time fault monitoring
4. Industrial Protocols & Integration
Supports PROFIBUS DP, Modbus TCP, and OPC UA for seamless integration with PLCs, HMIs, and SCADA systems
Programmable via Control Builder M (IEC 61131-3 compliant languages: FBD, ST, LD)
5. Applications
Process industries: Power plant excitation control, chemical batch processing
Manufacturing: Robotics, conveyor systems, and safety instrumented systems (SIL2 certified)
