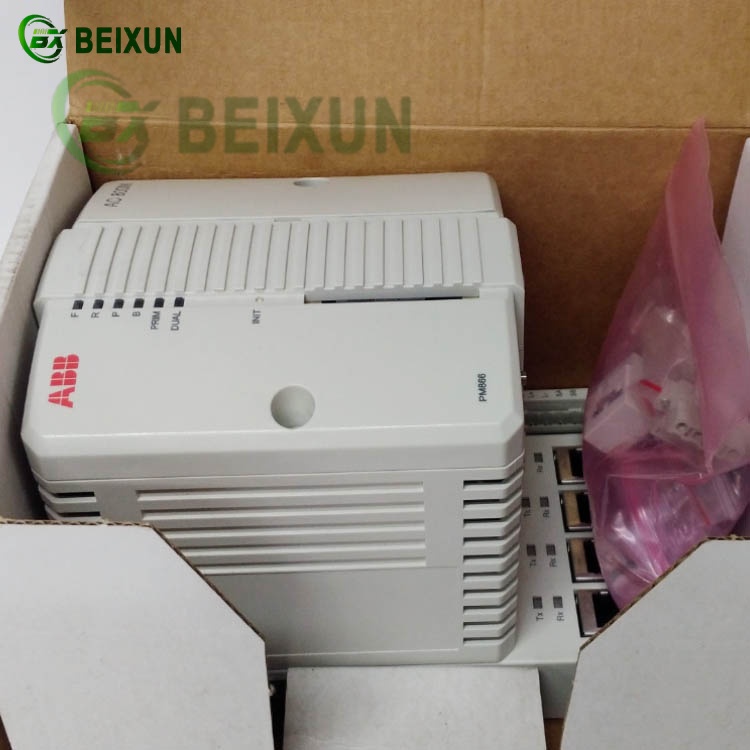

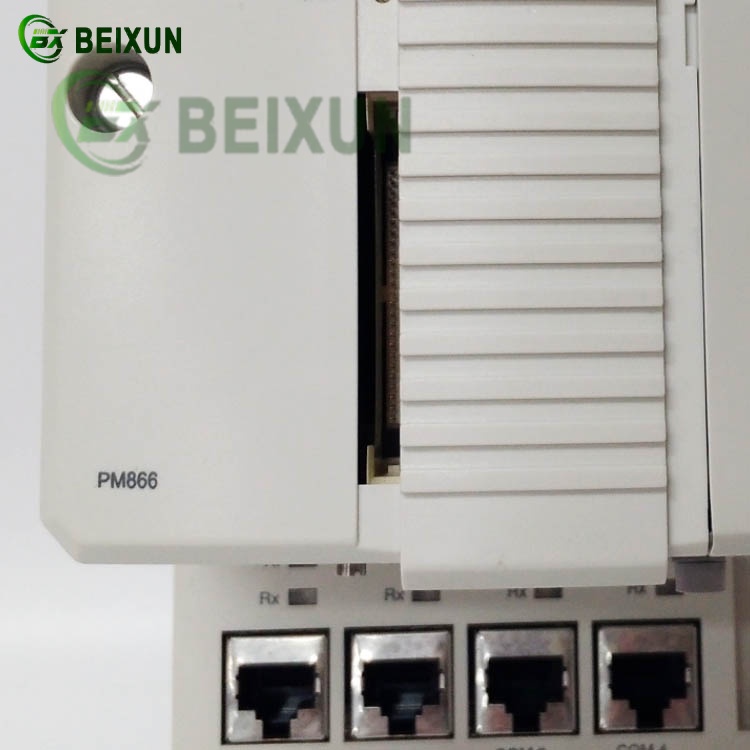

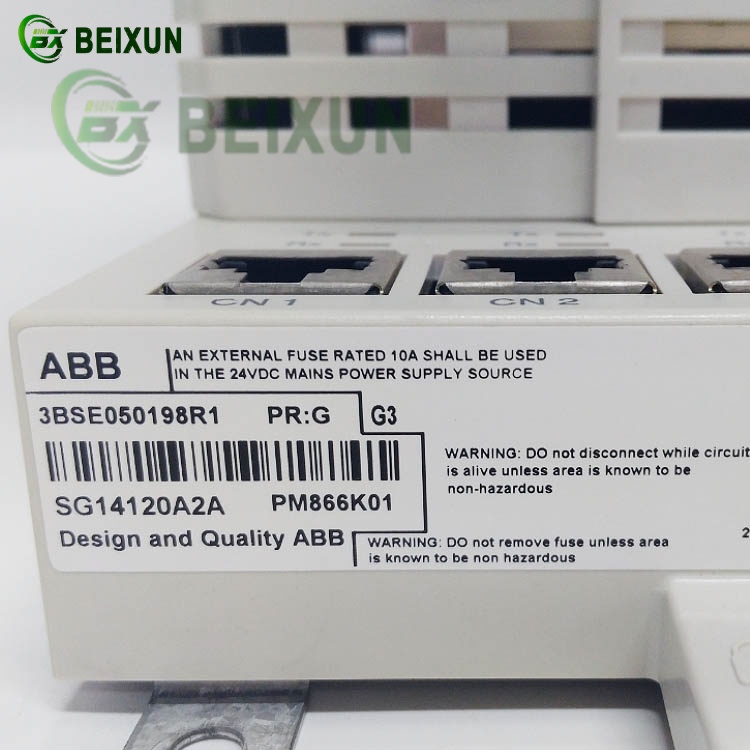

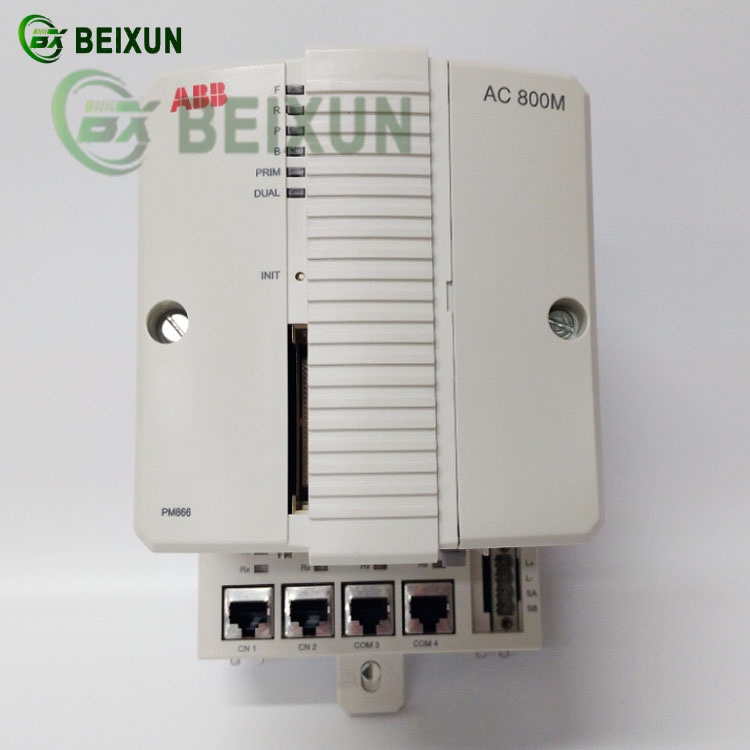

ABB PM866K01 3BSE050198R1 Central Controller Unit (AC800M) – Key Functions
1. High-Performance Industrial Control
Acts as the central processing unit for ABB’s AC800M series, featuring a PowerPC-based processor (500 MHz) for real-time deterministic control with ≤1ms cycle times.
Supports complex control strategies (PID loops, motion control, batch processing) and multi-tasking operations.
2. Modular & Scalable Architecture
DIN rail-mounted design with modular expansion, supporting up to 12 fieldbus modules and 8 local I/O stations via ModuleBus.
Compatible with S800 I/O clusters and redundant configurations (e.g., paired with PM866K02 for hot standby).
3. Advanced Communication & Protocols
Dual 10/100Mbps Ethernet ports (CN1/CN2) with switch functionality and two RS-232C serial ports (COM3/COM4) for configuration tools.
Supports PROFIBUS DP, Modbus TCP, OPC UA, and PROFINET for seamless integration with PLCs/SCADA systems.
4. Redundancy & Reliability
Hot-swappable CPU redundancy (with PM866K02) and CEX-Bus redundancy for fault-tolerant operation in critical industries.
Built-in diagnostics (LED indicators, event logging) and ISA safety certification for predictive maintenance.
5. Programming & Compliance
Programmable via Control Builder M (IEC 61131-3 compliant: FBD, ST, LD).
Certified for SIL2/SIL3 safety applications when paired with approved I/O modules.
6. Industrial Applications
Process industries: Power plant turbine control, oil refinery safety systems (ESD).
Manufacturing: Robotics, CNC systems, and high-speed production lines.
