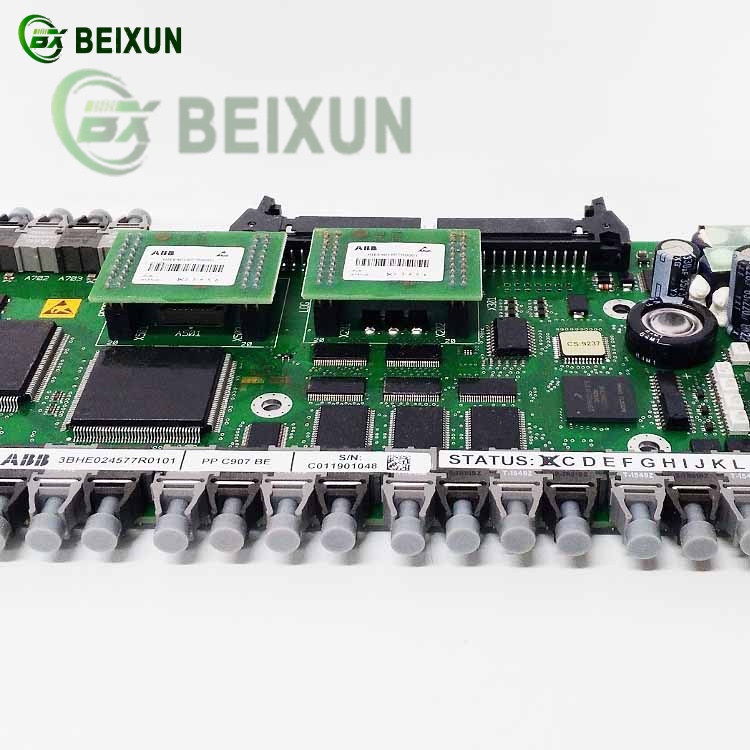

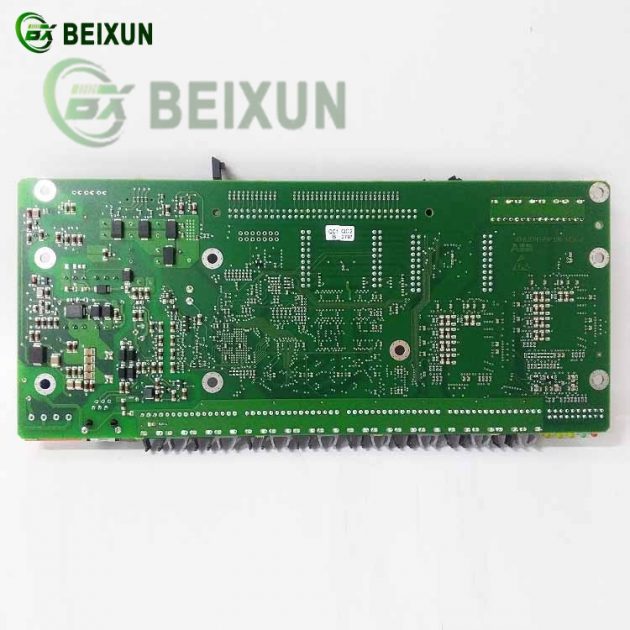

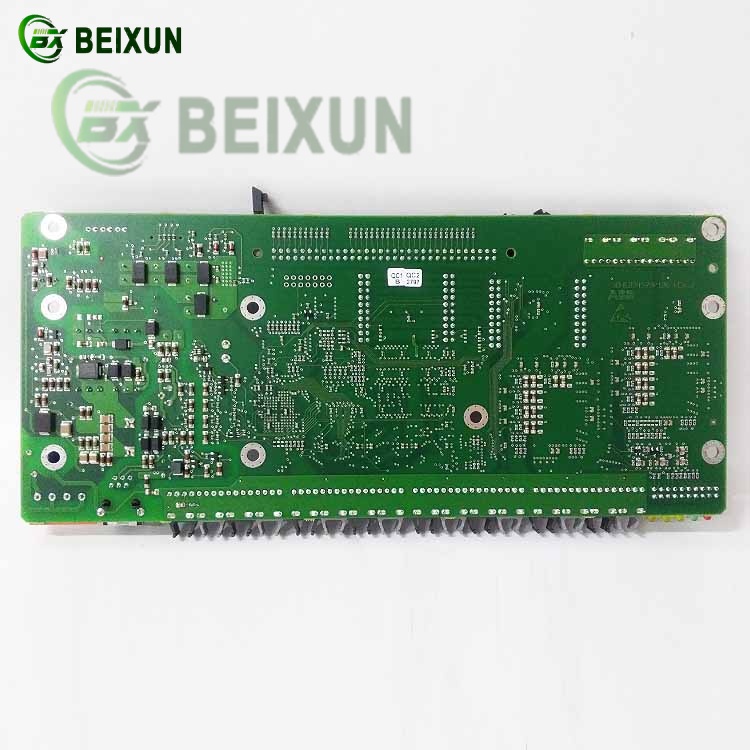

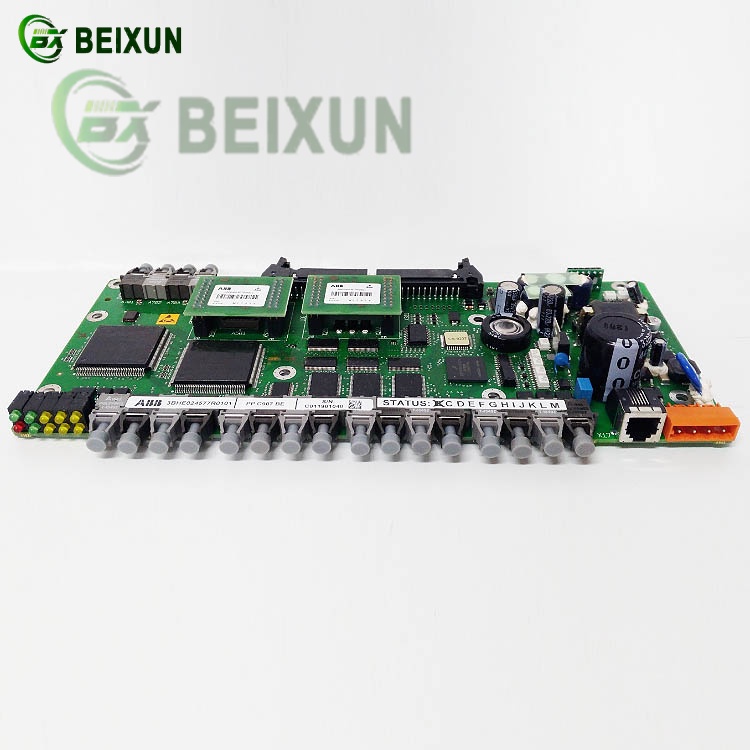

ABB PPC907BE 3BHE024577R0101 High Voltage Board PCB – Key Functions
1. High-Voltage Power Control & Regulation
Designed for high-voltage power distribution systems (up to 10kV) in industrial and utility applications
Provides precise voltage regulation and current monitoring for stable power delivery
2. Protection & Safety Features
Integrated overvoltage/undervoltage protection with fast-acting circuit breakers
Arc flash detection and suppression for enhanced electrical safety
3. Communication & System Integration
Supports IEC 61850 protocol for smart grid compatibility
Interfaces with ABB’s 800xA DCS and other automation systems via Profibus DP/PA
4. Robust Industrial Design
High dielectric strength insulation materials for reliable HV operation
EMI/RFI shielded design for noisy industrial environments
Operating temperature range: -40°C to +85°C
5. Diagnostic & Maintenance Capabilities
On-board self-test routines and diagnostic LEDs
Hot-swappable design for maintenance without system shutdown
6. Typical Applications
Power transmission & distribution substations
Industrial HV systems: Steel mills, mining operations
Renewable energy: Wind turbine power conversion
