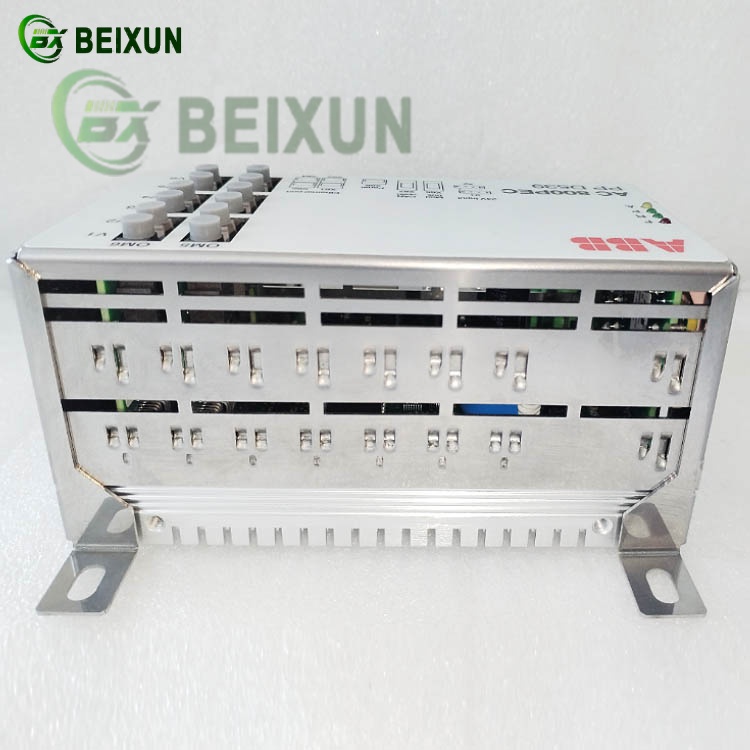

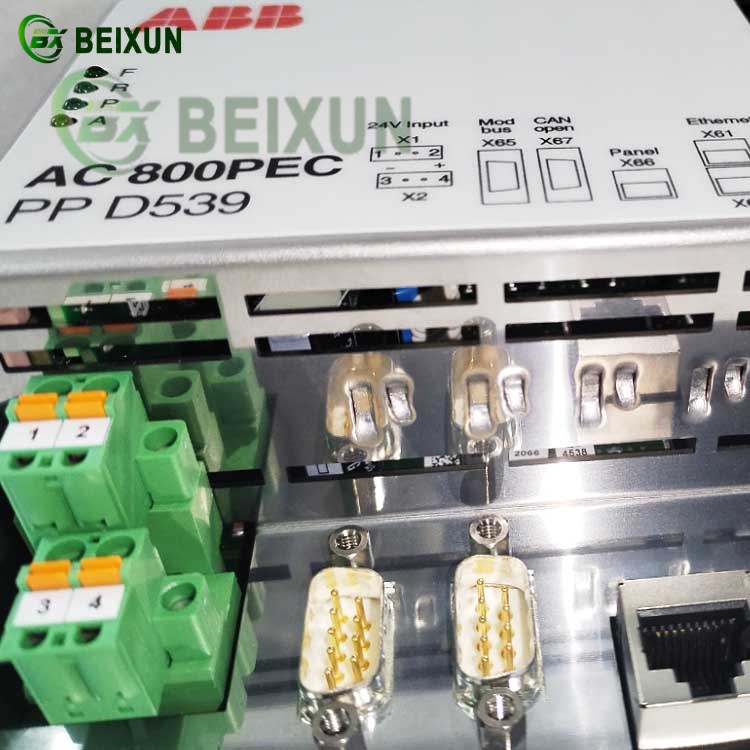

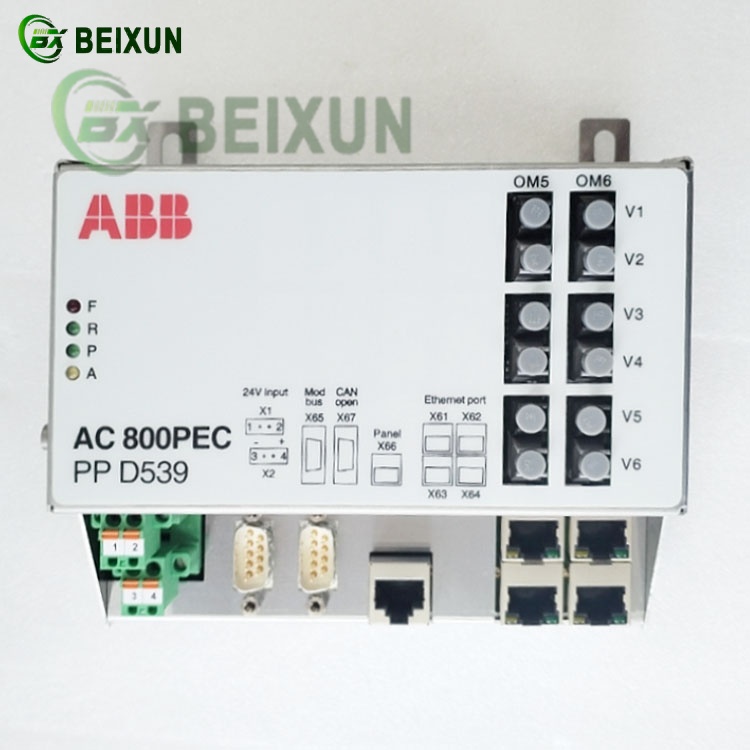

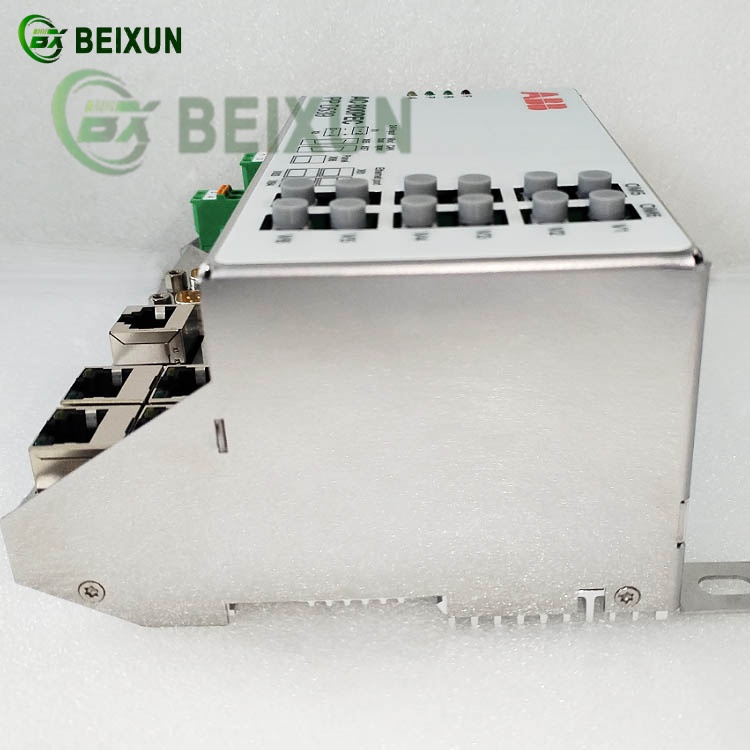

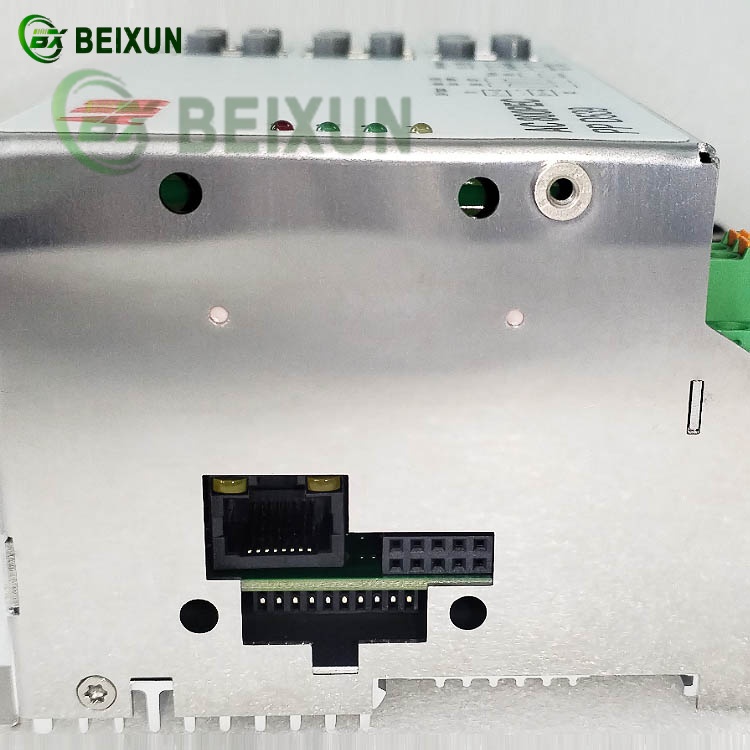

ABB PPD539A102 3BHE039770R0102 AC 800PEC Controller – Core Functions
1. High-Speed Control Capabilities
Executes real-time control algorithms with cycle times as fast as 100μs for power electronics applications.
Combines high-speed control (e.g., excitation systems) and low-speed process control (traditionally handled by separate PLCs) in a single processor unit.
2. Advanced Excitation System Control
Implements dual-loop regulation for generator excitation (AVR and FCR modes) with ±0.25% voltage accuracy.
Supports adaptive PSS (Power System Stabilizer) for damping low-frequency grid oscillations (<2.5Hz).
3. Modular Hardware Architecture
FPGA-based processing for deterministic performance in harsh industrial environments (-40°C to +70°C).
Fiber-optic I/O communication (100Mbps) for EMI immunity and potential-free isolation.
4. Grid Compliance & Protection
Complies with IEEE C50.13 and IEC 60034-3 for generator control standards.
Built-in protection functions: over/under excitation, V/Hz limits, and rotor earth fault detection.
5. System Integration
Fully compatible with ABB Ability™ 800xA for plant-wide automation.
Supports IEC 61850 (GOOSE/SV) for substation communication and OPC UA for vertical data exchange.
