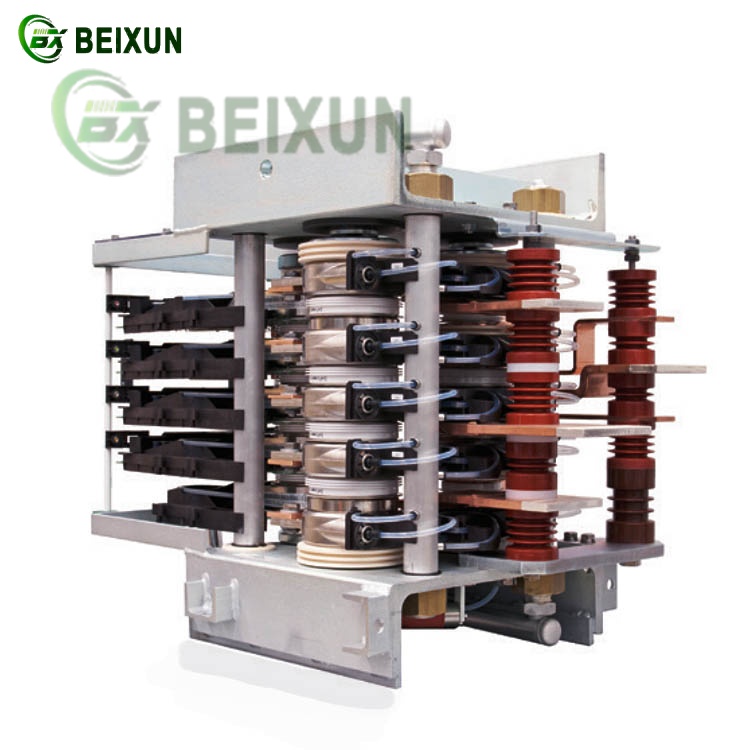

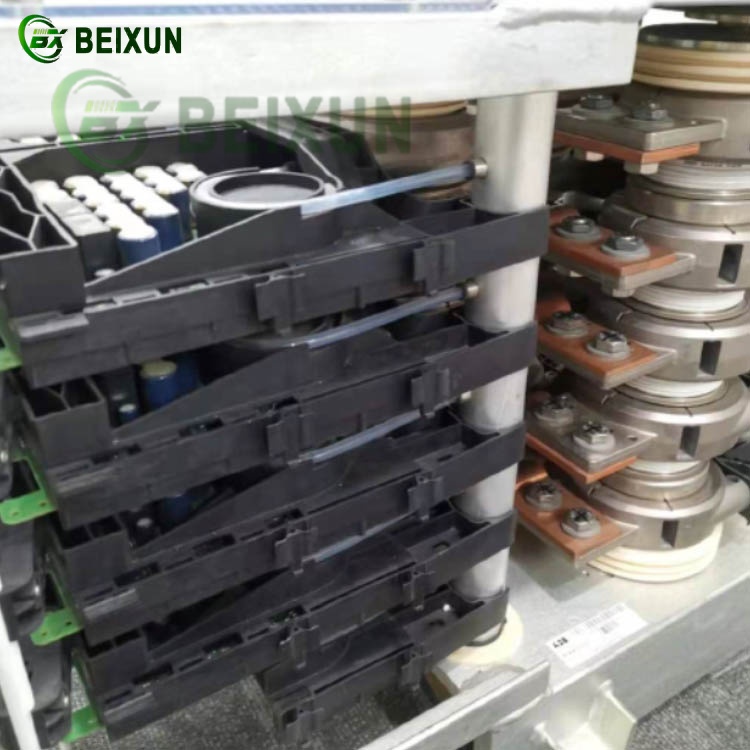

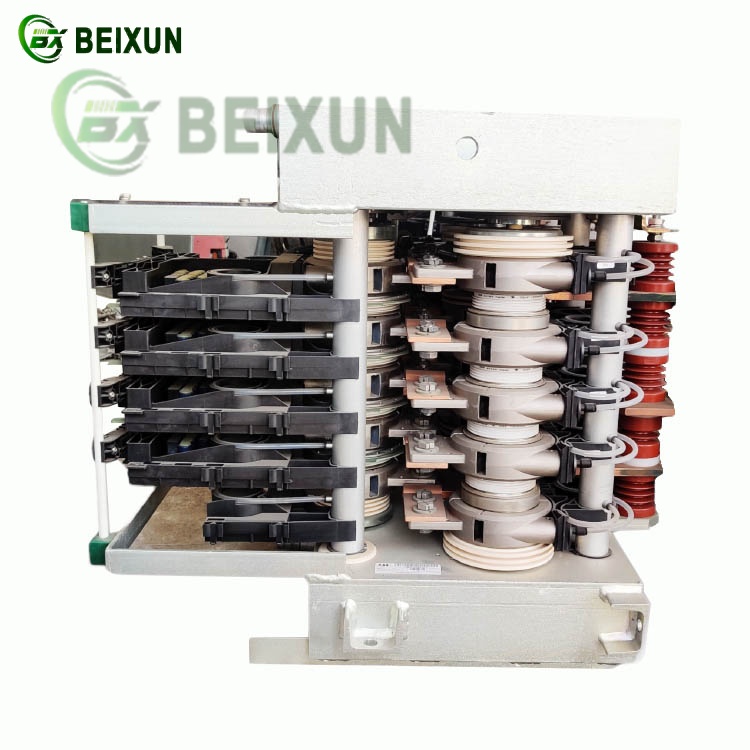

ABB S-073N 3BHB009884R0021 Phase Module – Functional Overview
1. Core Functions
Power Conversion: Acts as a critical component in high-voltage inverters, enabling efficient AC/DC or DC/AC conversion for industrial drives and energy systems.
Phase Control: Precisely manages phase modulation in modular multilevel converter (MMC) topologies, ensuring stable output in high-power applications.
Motor Drive Integration: Supports ABB ACS2000 transducer systems for motor speed and torque regulation via three-level IGCT-based circuits.
2. Key Features
High Voltage Tolerance: Designed for applications requiring thousands of volts, with robust isolation and surge protection.
Modular Design: Hot-swappable for easy maintenance and system scalability in MMC configurations.
Fast Switching: Utilizes IGCTs (Integrated Gate-Commutated Thyristors) for microsecond-level response.
3. Applications
Industrial Automation: Integral to ABB ACS2000 transducer for heavy-duty motor control.
Renewable Energy: Facilitates power conversion in wind/solar grid-tied systems.
HVDC Transmission: Used in high-voltage direct current rectifiers for energy efficiency.
4. Technical Specifications
Model Variants: Includes GVC736BE101 and ALU series for different voltage/current requirements.
Communication: Supports DCS-Link for direct data exchange between drives.
