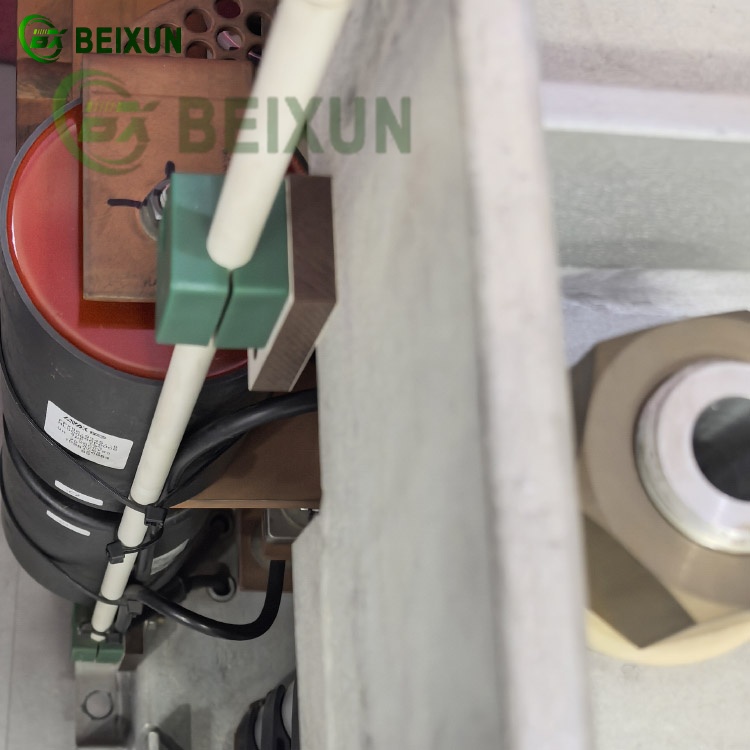

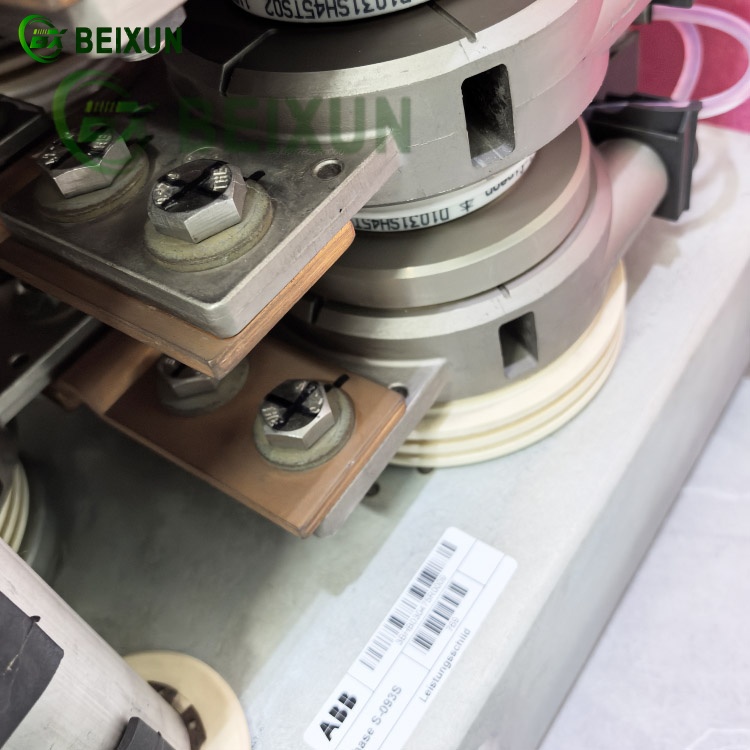

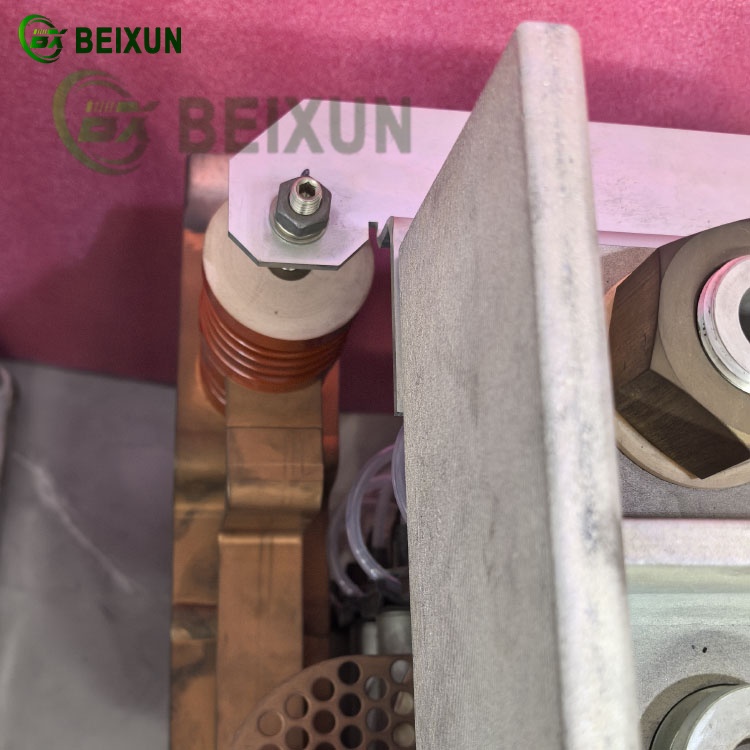

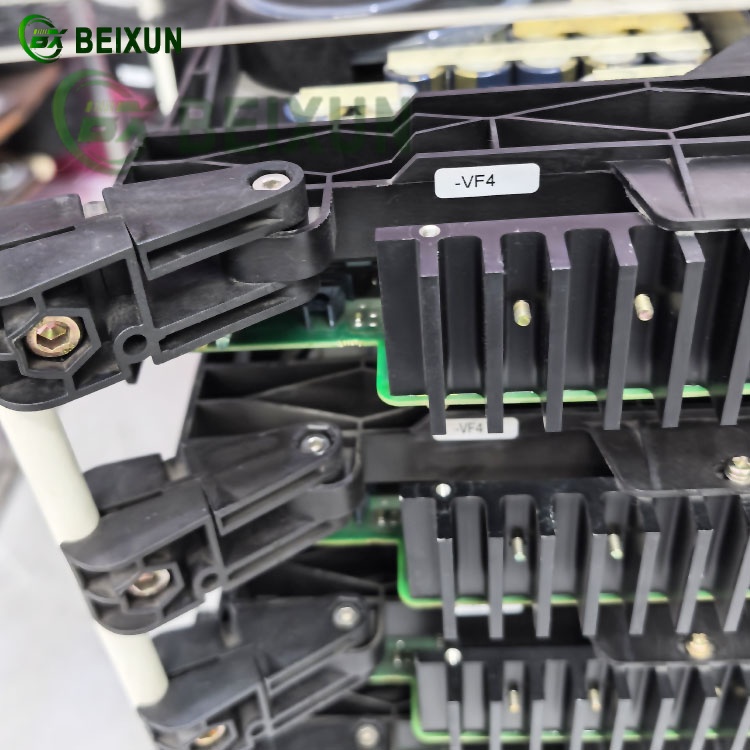

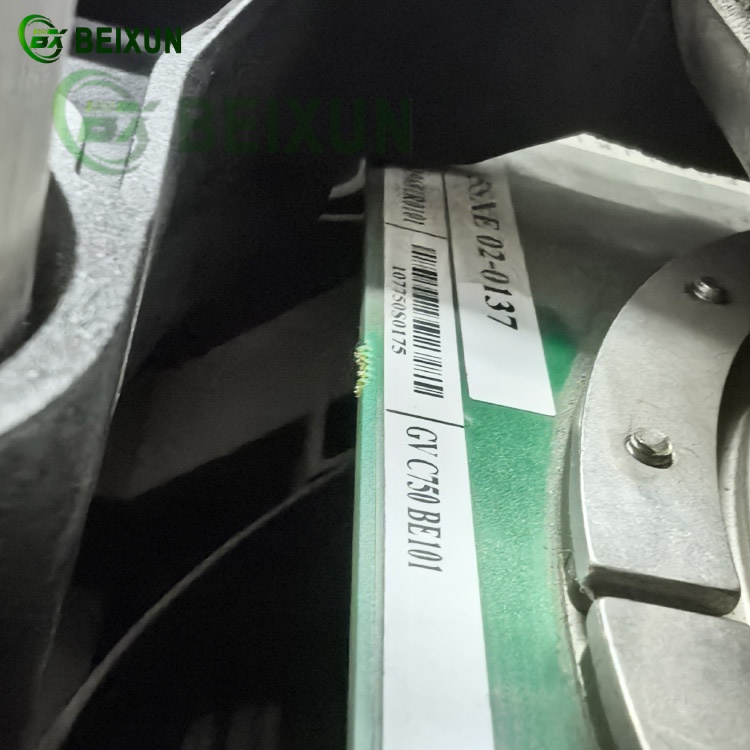

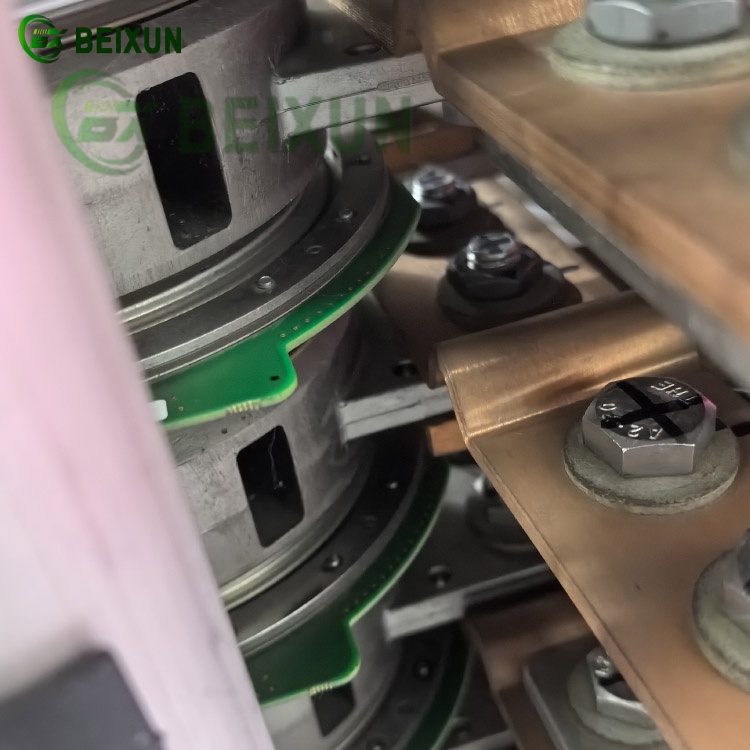

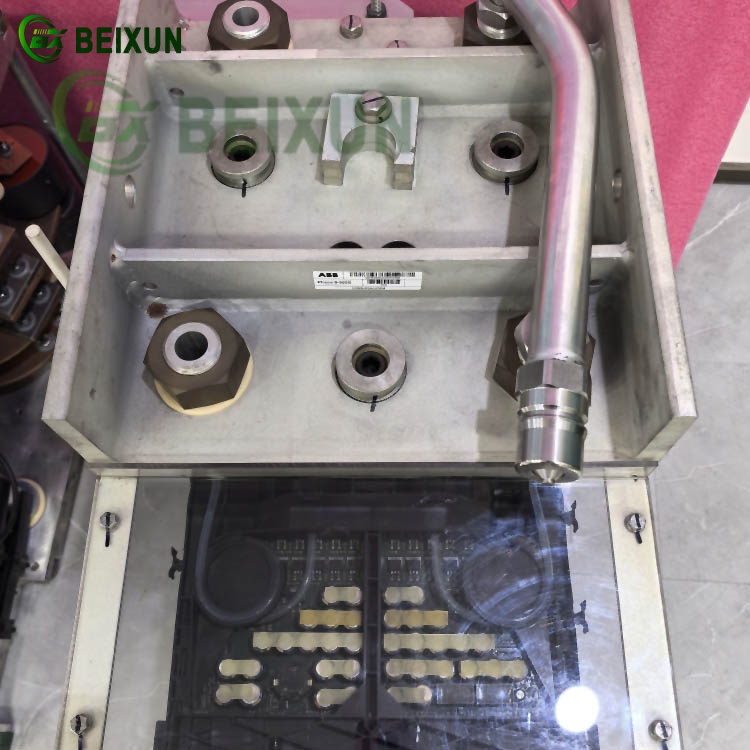

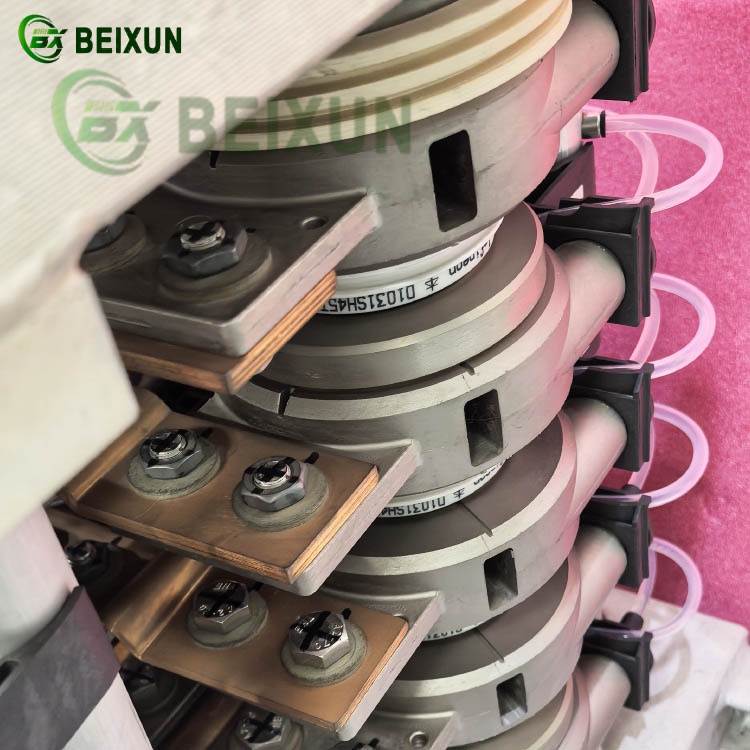

ABB S-093S 3BHB030475R0009 Phase Module (Medium Voltage Inverter) – Key Functions
1. Core Power Conversion
Medium Voltage (MV) Operation:
Designed for 3.3kV–6.6kV motor drives in industrial applications.
Enables variable speed control for high-power AC motors (e.g., pumps, fans, compressors).
Modular IGBT-Based Design:
Uses Insulated Gate Bipolar Transistors (IGBTs) for efficient switching.
Supports multi-level voltage output for reduced harmonic distortion.
2. Protection & Reliability
Overcurrent & Short-Circuit Protection:
Fast-acting IGBT gate drive protection to prevent damage.
Thermal Management:
Integrated temperature sensors for heat sink monitoring.
Redundant cooling options (air/water cooling depending on model).
3. System Integration
Compatibility with ACS 2000/5000 Drives
Plug-and-play replacement module for ABB’s MV drive systems.
Fiber-Optic Control Signals
Ensures noise immunity in high-power environments.
4. Applications
Industrial Processes:
Oil & gas (compressor control), water treatment (pump optimization).
Energy Savings:
Reduces power consumption in HVAC, mining, and marine propulsion.
