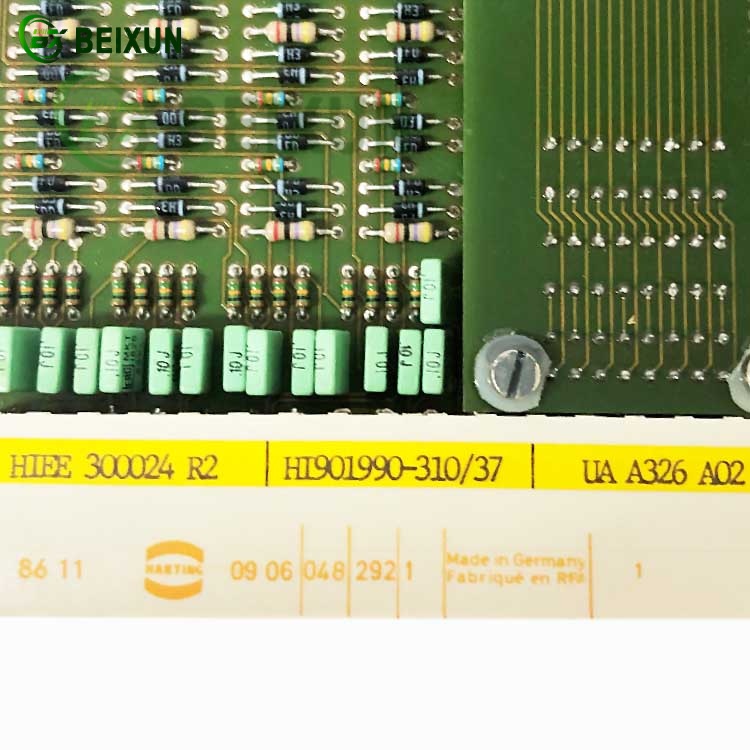

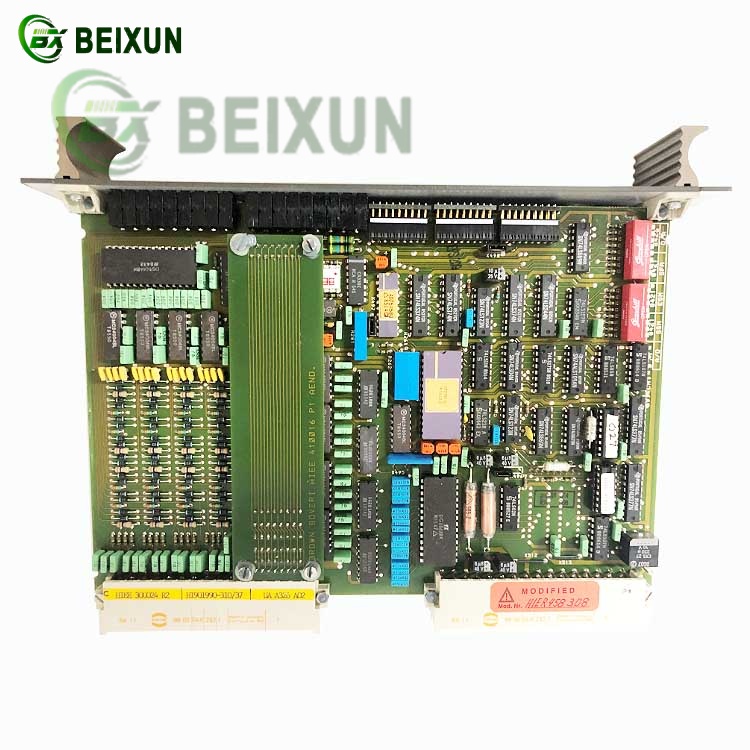

ABB UAA326A02 HIEE300024R2 Control Board – Key Functions
1. Core Control & Processing
Real-Time Control: Acts as a central processing unit for ABB industrial drives (e.g., ACS800, ACQ80 series), executing motor control algorithms.
Signal Conditioning: Processes analog/digital I/O (e.g., 4-20mA, 0-10V, encoder feedback) for precise motor speed/torque regulation.
2. System Integration
Drive Communication: Interfaces with ABB Drive Manager software via Fiber Optic (DDCS) or Ethernet for parameter tuning.
Modular Design: Supports plug-in modules (e.g., UINT01 for fieldbus protocols like Profibus DP).
3. Protection & Diagnostics
Fault Detection: Monitors overcurrent, overheating, and ground faults, triggering shutdowns to protect motors.
LED Indicators: Displays status codes (e.g., “FAULT 2340” for DC link overvoltage).
4. Applications
HVAC Systems: Controls fan/pump motors in building automation.
Mining & Cement: Regulates conveyor belts and crushers.
Marine Propulsion: Manages thruster motor drives.
5. Key Advantages
Dual DSP architecture for high-speed control loops (µs-level response).
Flash memory for firmware updates without hardware replacement.
