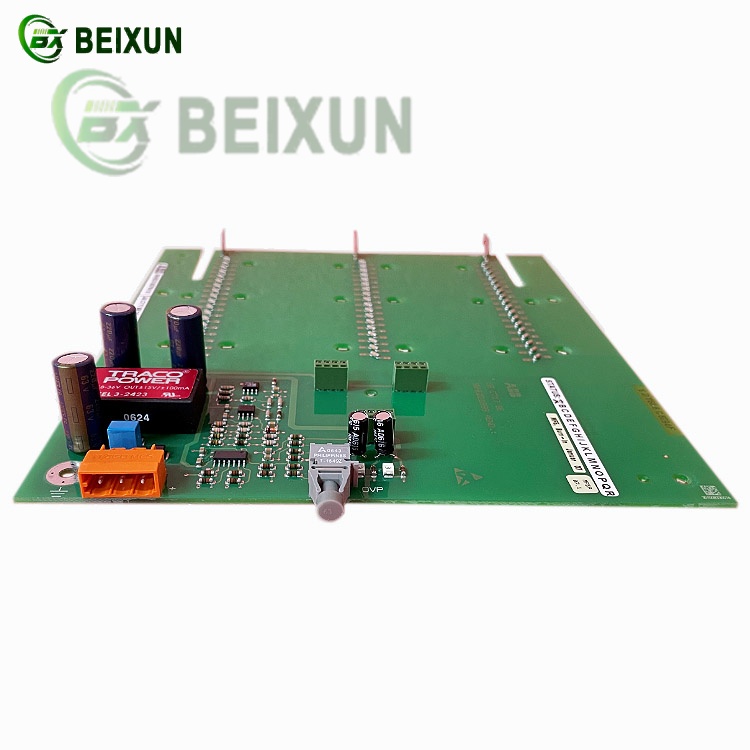

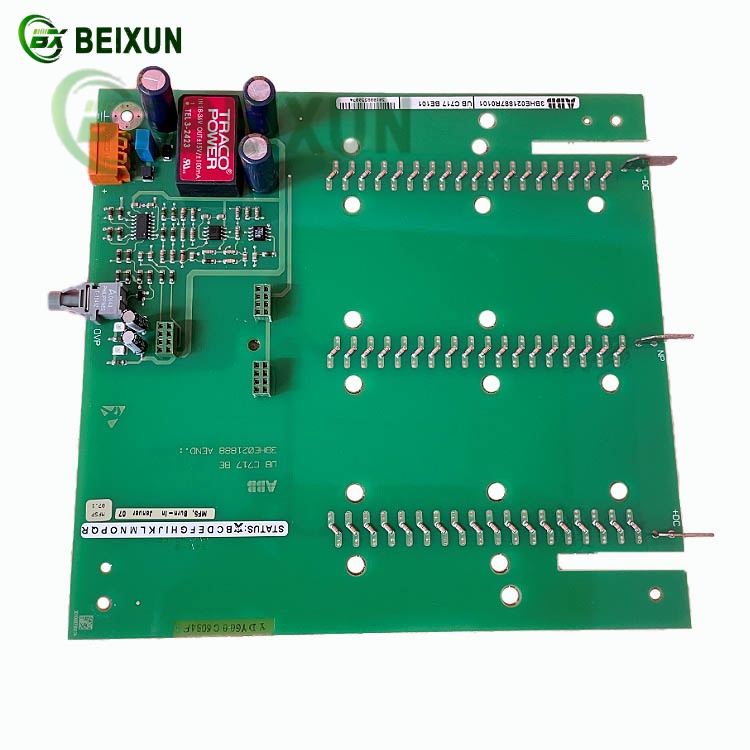

ABB UBC717BE101 3BHE021887R0101 OVVP-Board Coated – Functional Overview
1. Core Functionality
Signal Isolation & Protection: Provides electromagnetic shielding (OVVP coating) for noise immunity in industrial environments.
High-Voltage Insulation: Designed for 600V+ systems with reinforced dielectric properties.
2. System Integration
PLC/DCS Compatibility: Interfaces with ABB AC500 PLCs and 800xA systems via standardized communication protocols.
Modular Design: Hot-swappable in ABB UBC series chassis for maintenance flexibility.
3. Key Features
Coating Type: OVVP (Oil-Resistant PVC Shielded)
Operating Voltage: 24VDC–600VAC
Temperature Range: -40°C to +85°C
Protection Class: IP65 (coated variant)
4. Applications
Motor Control: Shields signal lines in ABB ACS880 drives.
Power Distribution: Used in switchgear monitoring systems.
Harsh Environments: Oil/gas plants, mining (resists moisture & chemicals).
