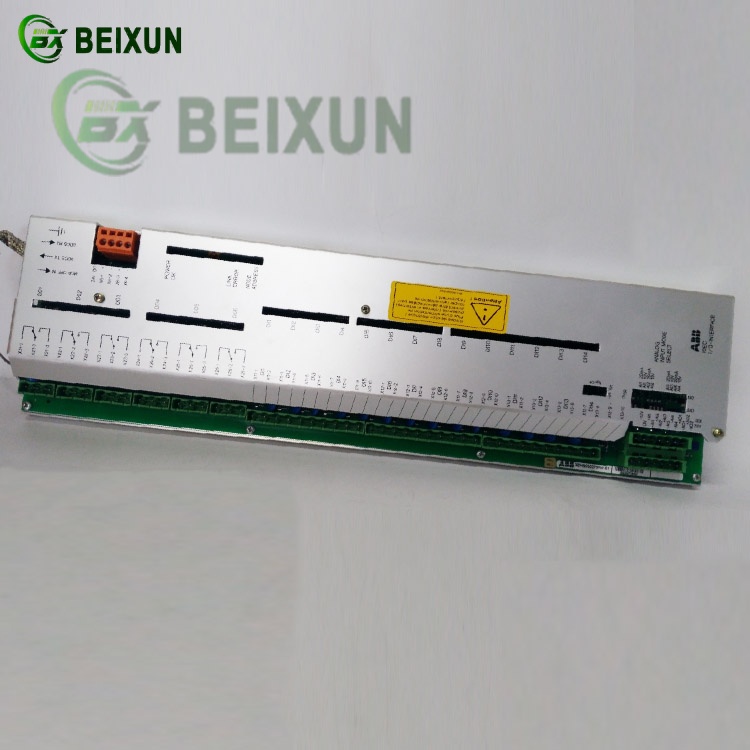

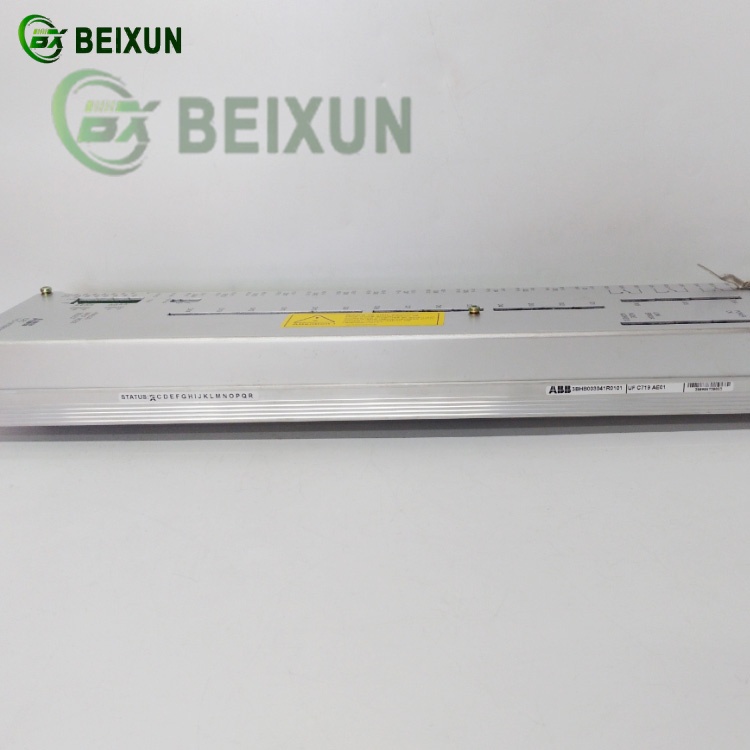

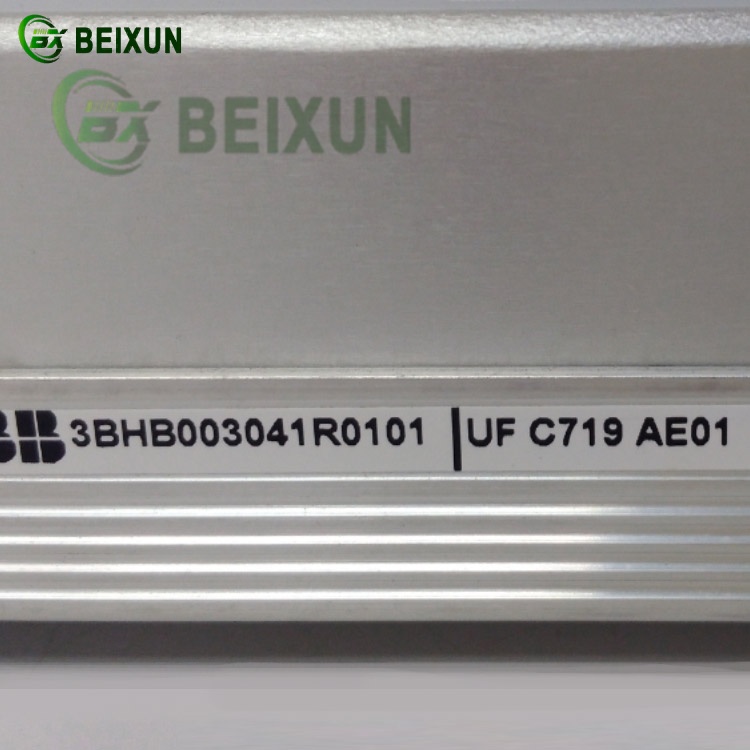

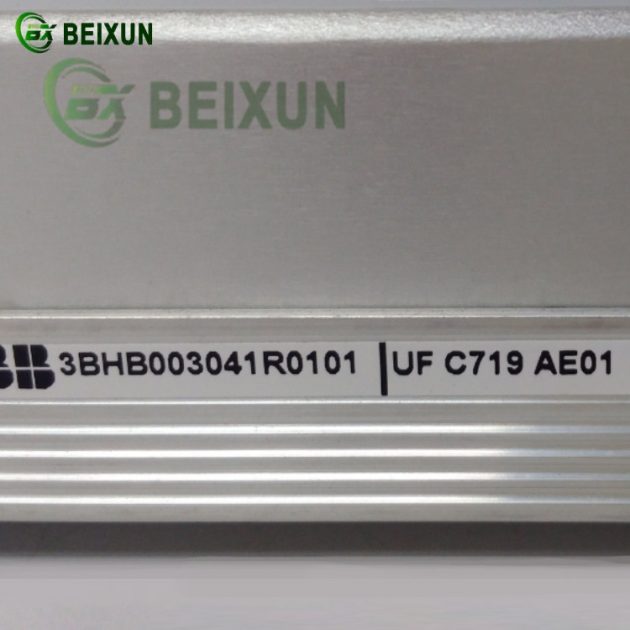

ABB UFC719AE01 3BHB000272R0001/3BHB003041R0101 High-Frequency Control Module – Functional Overview
1. Core Functions
Processor Control: Acts as a control unit (CU) component that directs processor operations by managing memory access, arithmetic/logic unit (ALU) coordination, and I/O device responses.
High-Frequency Signal Processing: Optimized for rapid instruction execution in industrial automation systems.
2. Key Features
Instruction Handling: Generates timing/control signals to synchronize CPU operations.
Data Flow Management: Directs data transfer between CPU, memory, and peripherals.
ALU Integration: Supports integer arithmetic and bitwise logic operations via integrated ALU circuits.
3. Applications
Industrial Automation: Embedded in ABB control systems for manufacturing and energy sectors.
Real-Time Control: Used in processes requiring high-speed signal processing (e.g., power grid synchronization).
4. Compatibility
Modular Design: Compatible with ABB’s industrial automation platforms (e.g., 800xA).
Communication Protocols: Supports standard industrial interfaces (e.g., Modbus, Profibus).
