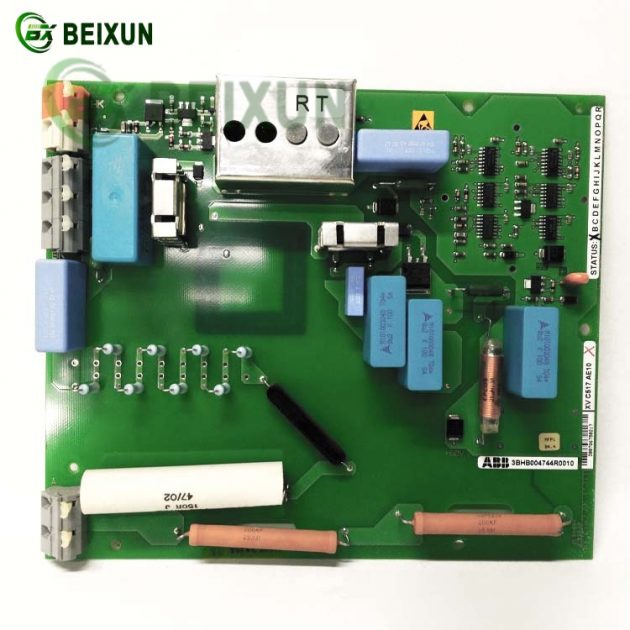

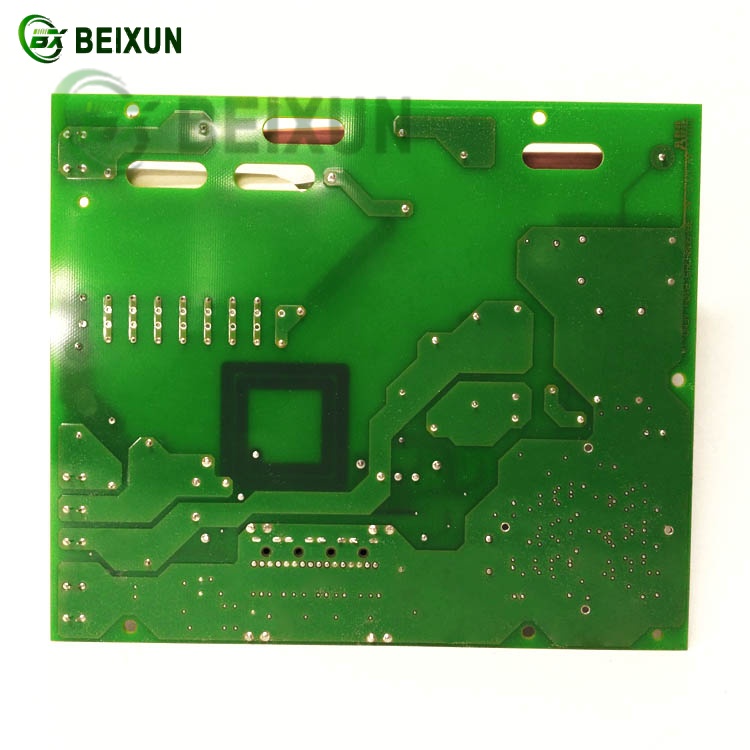

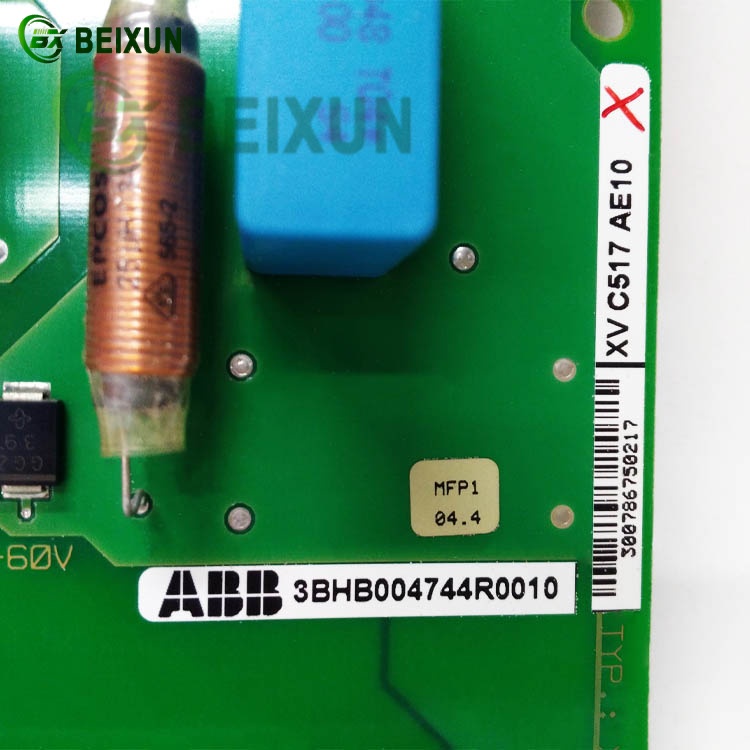

The ABB XVC517AE10/3BHB004744R0010 GATE DRIVER UNIT is a critical component in power electronics and motor control systems,
with the following key functions and applications:
1. Core Functions
IGBT/MOSFET Gate Control:
Provides isolated gate driving signals to power semiconductor devices (e.g., IGBTs, MOSFETs) in inverters/converters.
Ensures precise switching timing to minimize power losses and heat generation.
Protection & Monitoring:
Integrates short-circuit detection, overcurrent protection, and fault feedback to safeguard power modules.
Supports desaturation detection for abnormal voltage conditions.
Isolation & Signal Conditioning:
Uses optocouplers or magnetic isolation to separate low-voltage control circuits from high-power stages.
Converts logic-level signals (e.g., from DSPs) to high-current gate pulses.
2. Technical Features
High Noise Immunity: Robust against EMI in industrial environments.
Fast Switching: Enables kHz-range PWM frequencies for efficient motor control.
Modular Design: Hot-swappable for maintenance without system shutdown.
3. Applications
Industrial Drives: ABB ACS800/ACQ80 series inverters.
Renewable Energy: Solar/wind power converters.Traction Systems: Railway and EV motor controllers.
