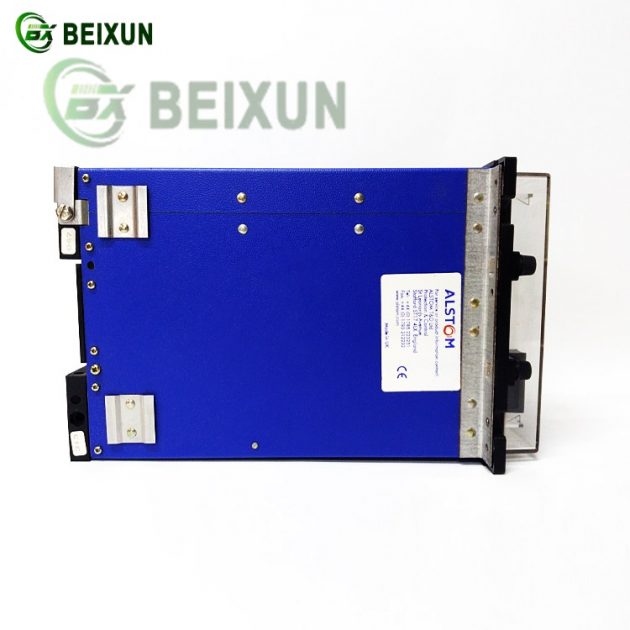

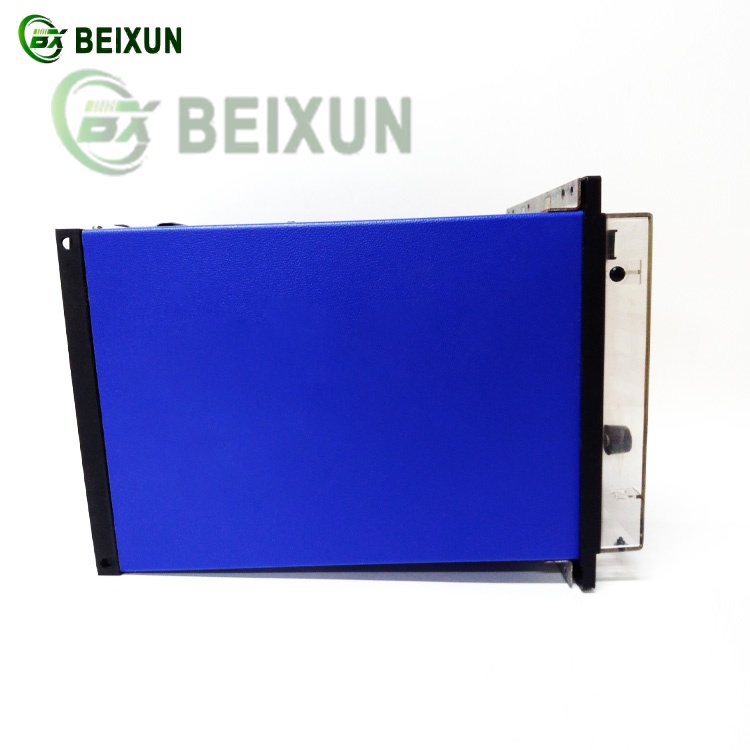

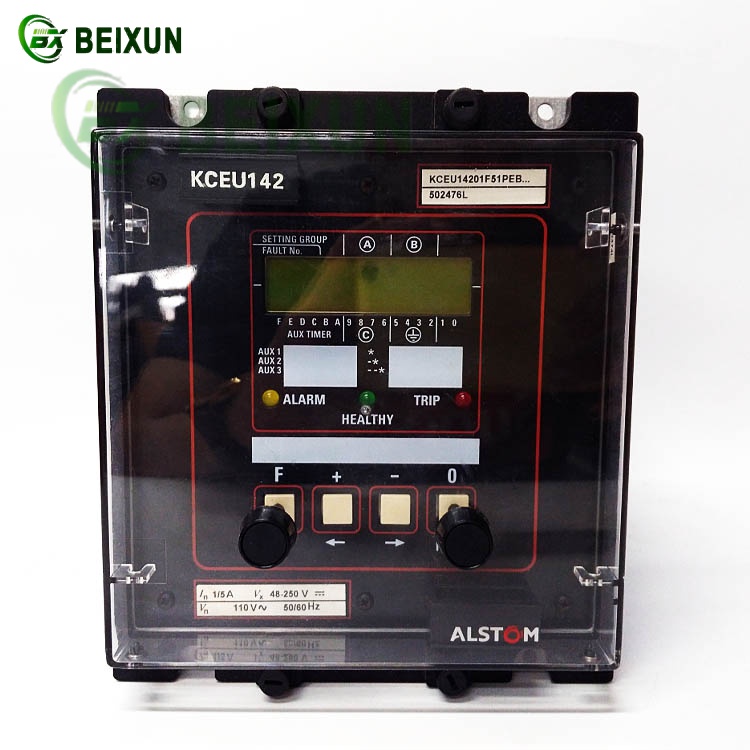

The ALSTOM 502476L KCEU14201F51PEB is a relay control module designed for industrial automation and power systems, primarily serving as a signal processing and switching unit in ALSTOM’s distributed control systems (DCS).
Below are its key functions and technical details:
1. Core Functions:
Relay Control & Switching:
Manages electrical signals to activate/deactivate relays, ensuring precise control of power distribution or motor operations.
Supports high-speed switching (millisecond response time) for critical fault protection.
Signal Isolation & Protection:
Provides electrical isolation (rated for high-voltage environments) to prevent noise interference and voltage spikes.
Includes overcurrent/overvoltage protection circuitry for system safety.
System Integration:
Compatible with ALSTOM’s KCEU142 series modules and integrates with DCS/PLC networks via standard protocols (e.g., Modbus, Profibus).
Features modular design (DIN-rail mountable) for easy installation and maintenance.
2. Technical Specifications:
Operating Voltage: Typically 24V DC or 110V AC (configurable).
Isolation Rating: ≥2500V for industrial reliability.
Temperature Range: -20°C to +60°C.

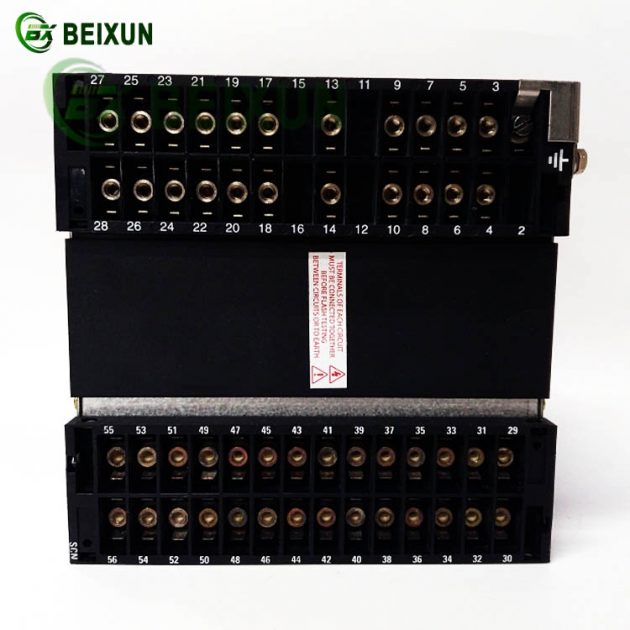

Terminal Type: Screw terminals for secure wiring.
3. Applications:
Power Plants: Relay control in turbine/generator protection systems.
Manufacturing: Motor control and automation sequencing.
Railway Systems: Signal switching in traction control units.
