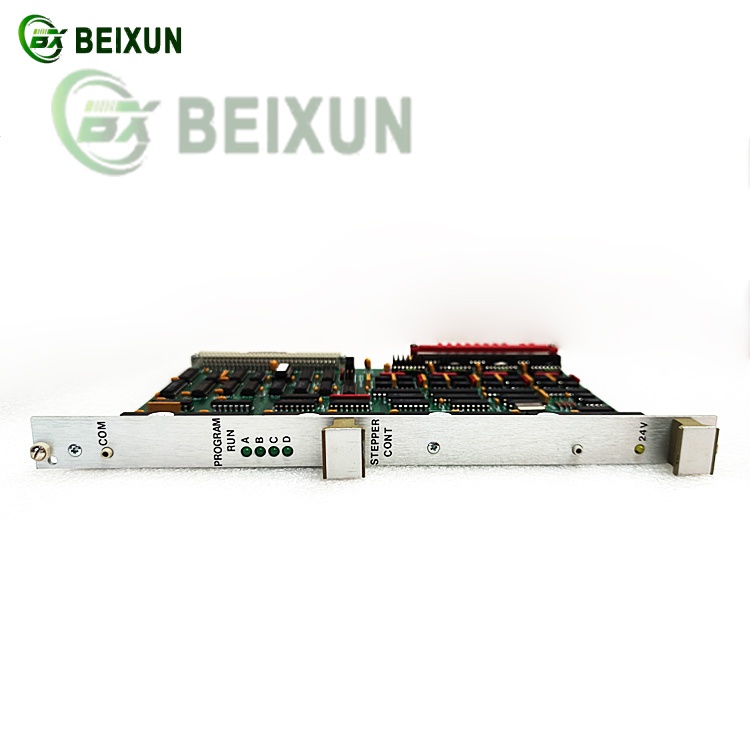

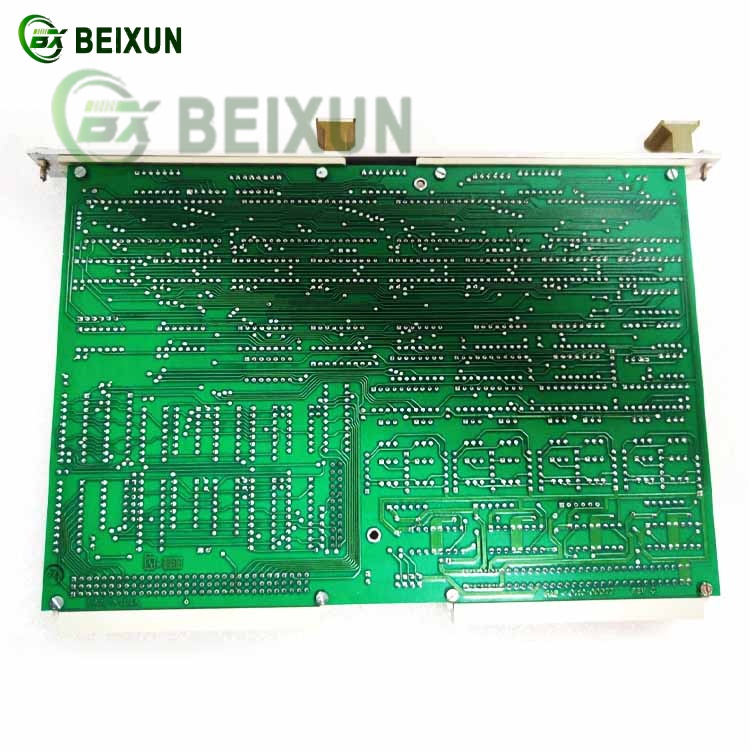

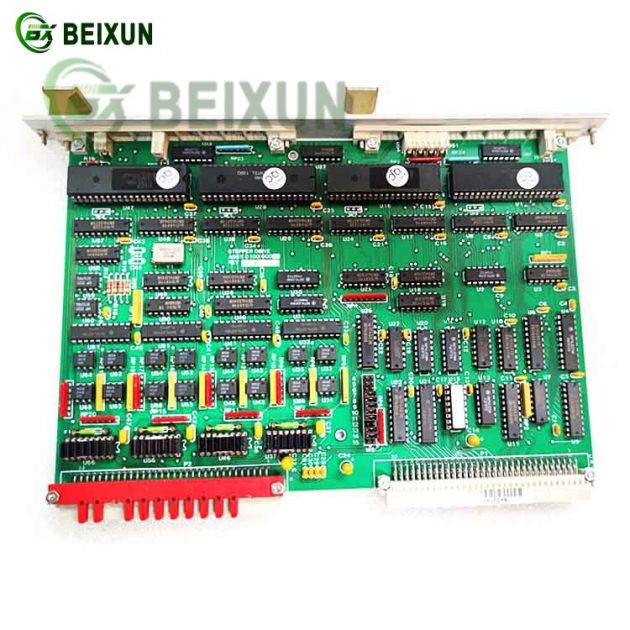

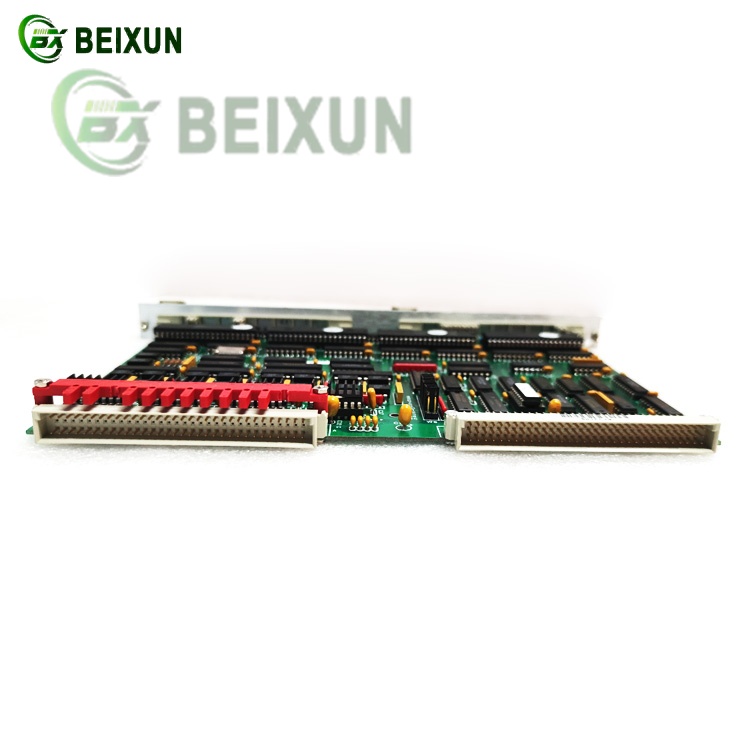

The AMAT 0100-00003 Stepper Drive ASSY is a VMEbus-based stepper motor drive assembly designed for high-precision motion control in industrial automation and semiconductor manufacturing equipment.
Below are its key functions and technical details:
1. Primary Functions:
Precision Motor Control:
Drives stepper motors with high resolution and accuracy, enabling precise positioning in wafer handling, lithography, and robotic systems.
Supports closed-loop control (optional) for enhanced stability in critical applications.
Industrial Communication:
Integrates with VMEbus systems for real-time data exchange with PLCs or motion controllers.
Compatible with CANopen or proprietary protocols for seamless automation integration.
Robust Performance:
Features overcurrent, overvoltage, and thermal protection to ensure reliability.
2. Technical Specifications:
Voltage Range: Typically 24–70 VDC (varies by configuration).
Current Output: Configurable for stepper motor ratings (exact specs depend on model).
Resolution: Software-adjustable microstepping (e.g., 200–51,200 steps/revolution).
3. Applications:
Semiconductor Tools: Used in wafer scanners, load-lock systems, and pick-and-place robots for precise motion control.
Industrial Automation: Deployed in CNC machines, conveyor systems, and robotic arms.
