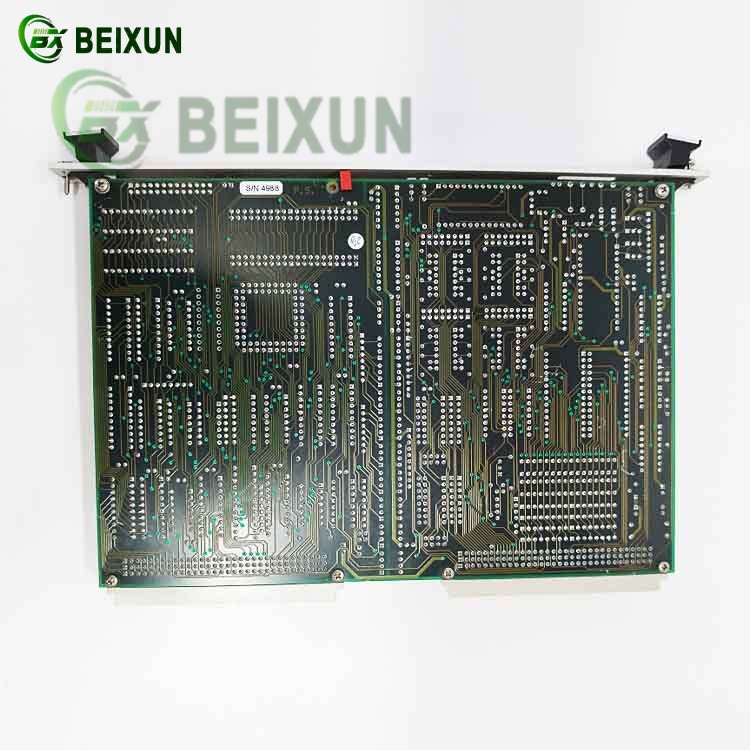

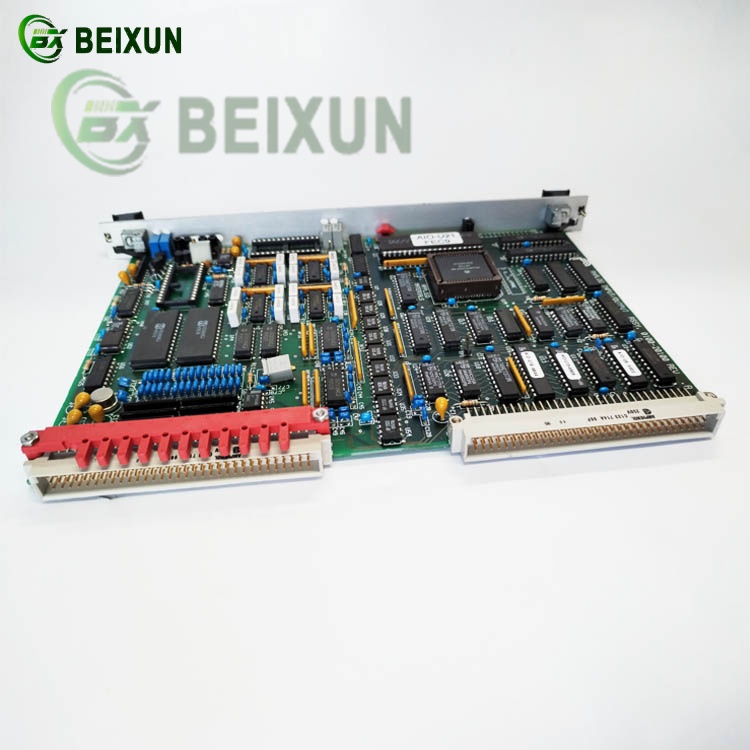

The AMAT 0100-20100 PCB Analog I/O Board is a high-precision analog input/output module designed for industrial automation and semiconductor manufacturing systems.
Below is its detailed function and technical specification:
1. Primary Functions:
Analog Signal Processing:
Converts analog sensor signals (e.g., temperature, pressure, voltage) into digital data for PLC or DCS systems.
Provides high-resolution analog output for precise control of actuators (e.g., valves, motors).
Industrial-Grade Reliability:
Supports wide operating temperature ranges and EMI-resistant design for harsh environments.
Complies with SEMI standards for semiconductor equipment safety.
Communication & Integration:
Compatible with VMEbus and PCI interfaces, supporting real-time data exchange with industrial controllers.
Configurable via Modbus or proprietary protocols for flexible automation integration.
2. Technical Specifications:
Input/Output Channels: Configurable analog I/O (exact count varies by configuration).
Resolution: Typically 16-bit or higher for precision measurement.
Power Supply: Industrial-grade 24V DC or other standards.
3. Applications:
Semiconductor Manufacturing: Used in wafer processing, CVD/PVD systems for analog signal monitoring.
Process Control: Deployed in chemical plants, power generation, and automotive automation.
