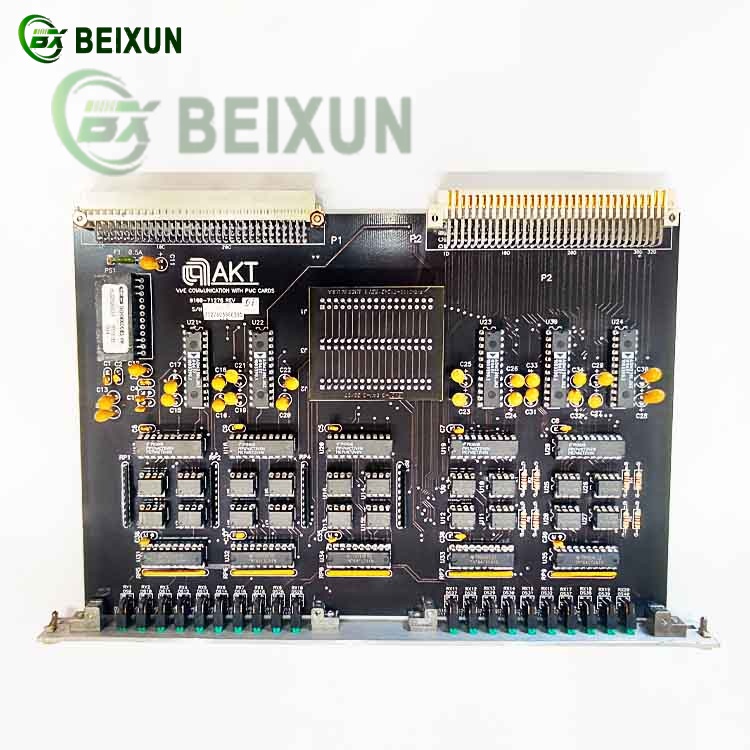

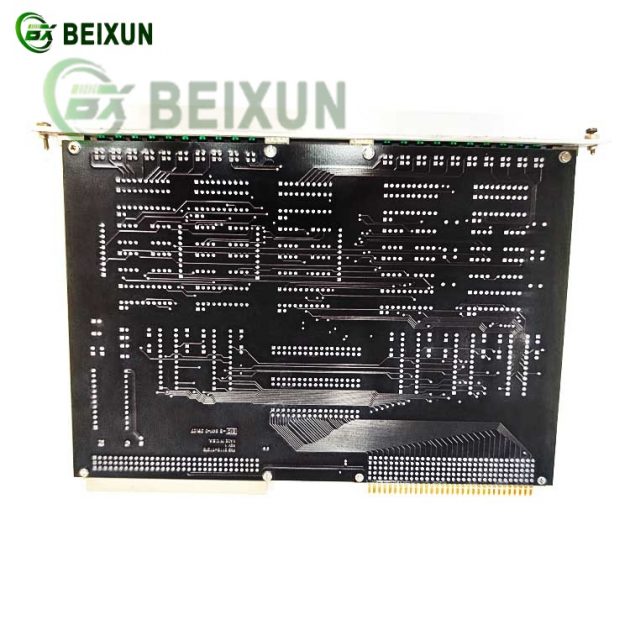

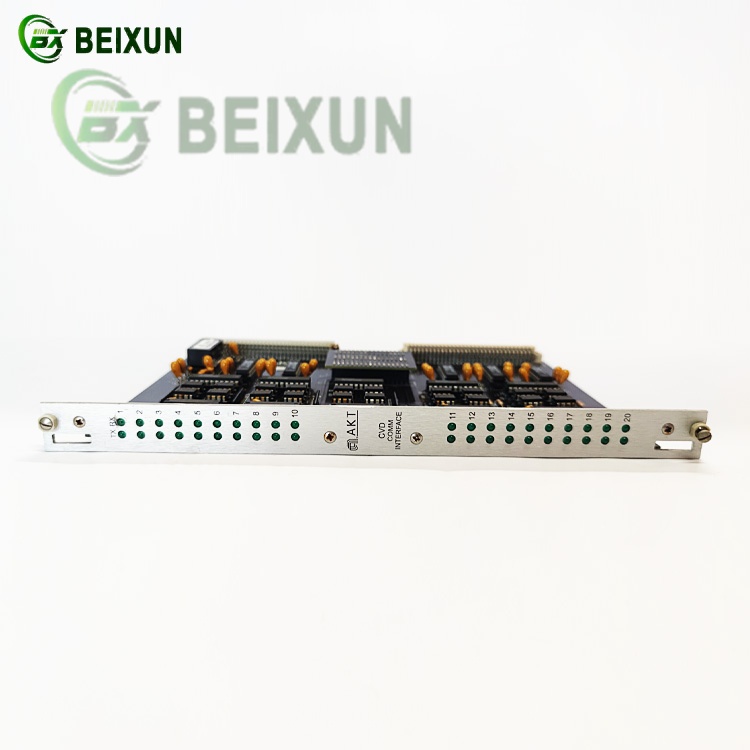

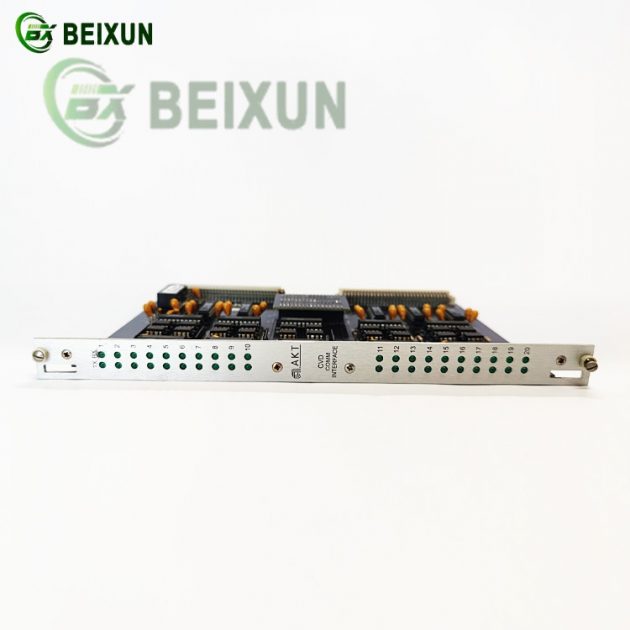

The AMAT 0100-71278 COMM Interface with PMC Cards is a high-performance communication and control module designed for semiconductor manufacturing equipment,
particularly in systems requiring real-time data exchange and precision control.
Below are its key functions and technical details:
1. Primary Functions:
Communication Interface:
Acts as a bridge between PMC (PCI Mezzanine Card) modules and host systems, enabling high-speed data transfer for industrial automation.
Supports standard protocols (e.g., Modbus, Profibus) for seamless integration with PLCs and other control systems.
Real-Time Control:
Facilitates real-time monitoring and adjustment of process parameters (e.g., gas flow, temperature) in semiconductor tools like CVD/PVD systems.
Integrates with AMAT’s proprietary servo control systems for precise motion control.
Modular Design & Compatibility:
Features a compact, modular design for easy installation and replacement in AMAT equipment (e.g., CENTURA series).
Compatible with multiple PMC card variants, enhancing system flexibility.
2. Technical Specifications:
I/O Channels: Configurable digital/analog interfaces for sensor/actuator connectivity.
Operating Environment: Stable performance in high-temperature and EMI-prone industrial settings.
Safety Standards: Complies with SEMI S2/S8 for semiconductor equipment safety.
3. Applications:
Semiconductor Manufacturing: Used in etching, deposition, and wafer handling processes.
Industrial Automation: Deployed in robotics and conveyor systems for synchronized control.
